9-3-2. Creation of the network configuration

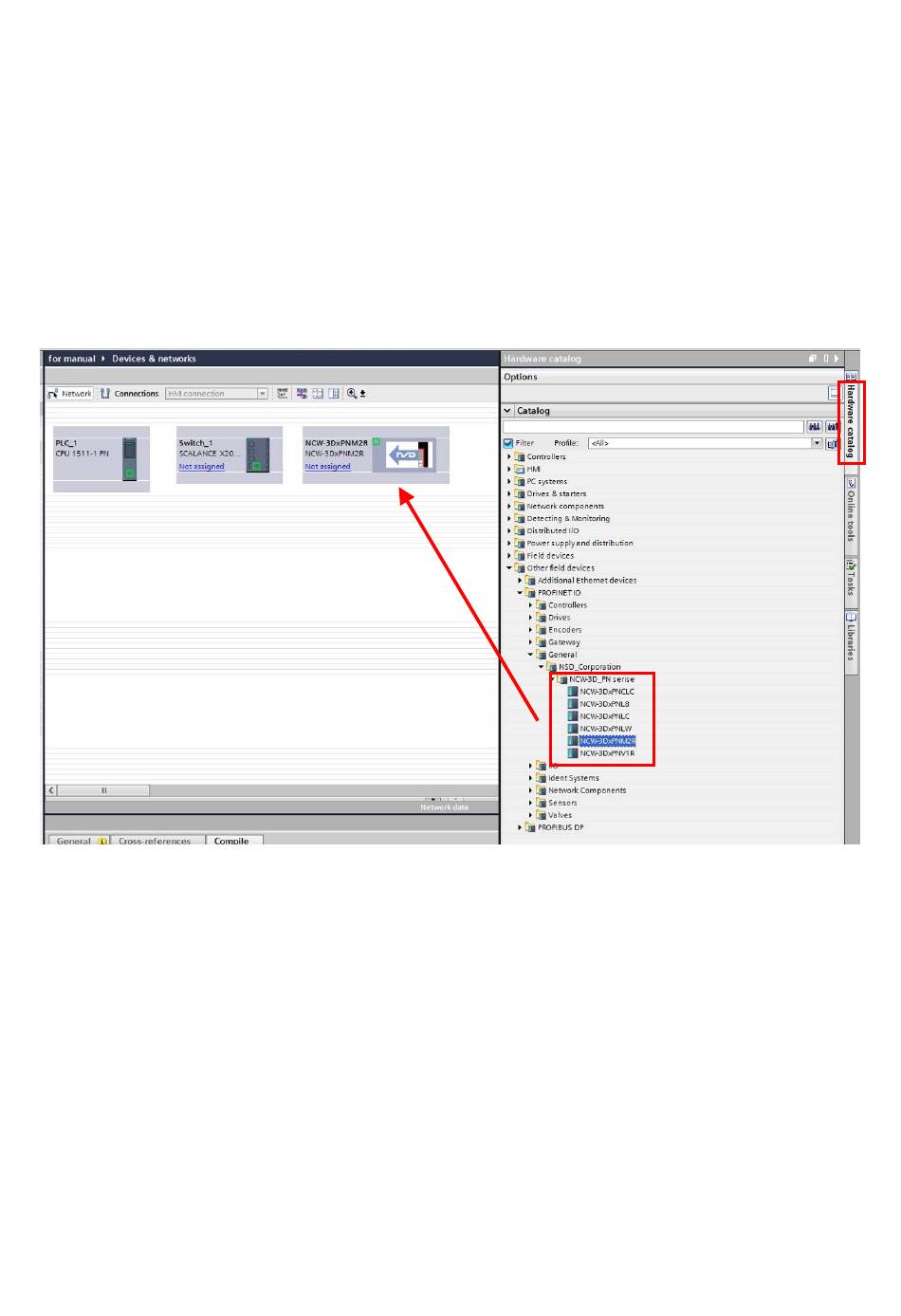

Select the GSDML file of the product which configures the network from "Hardware Catalog" after installing the
GSDML file.
The GSDML file is stored in the following folders by each category.
PLC ····························· Controllers
Switching hub ················ Network Components
NCW-3DHPN ················ Other field devices → General
Select the GSDML file, and add the product on the network by drag and drop.
*1
*1: Select the converter model which is actually used because it changes depending on the sensor in-use.
