2. MODEL SELECTION WHEN ORDERING

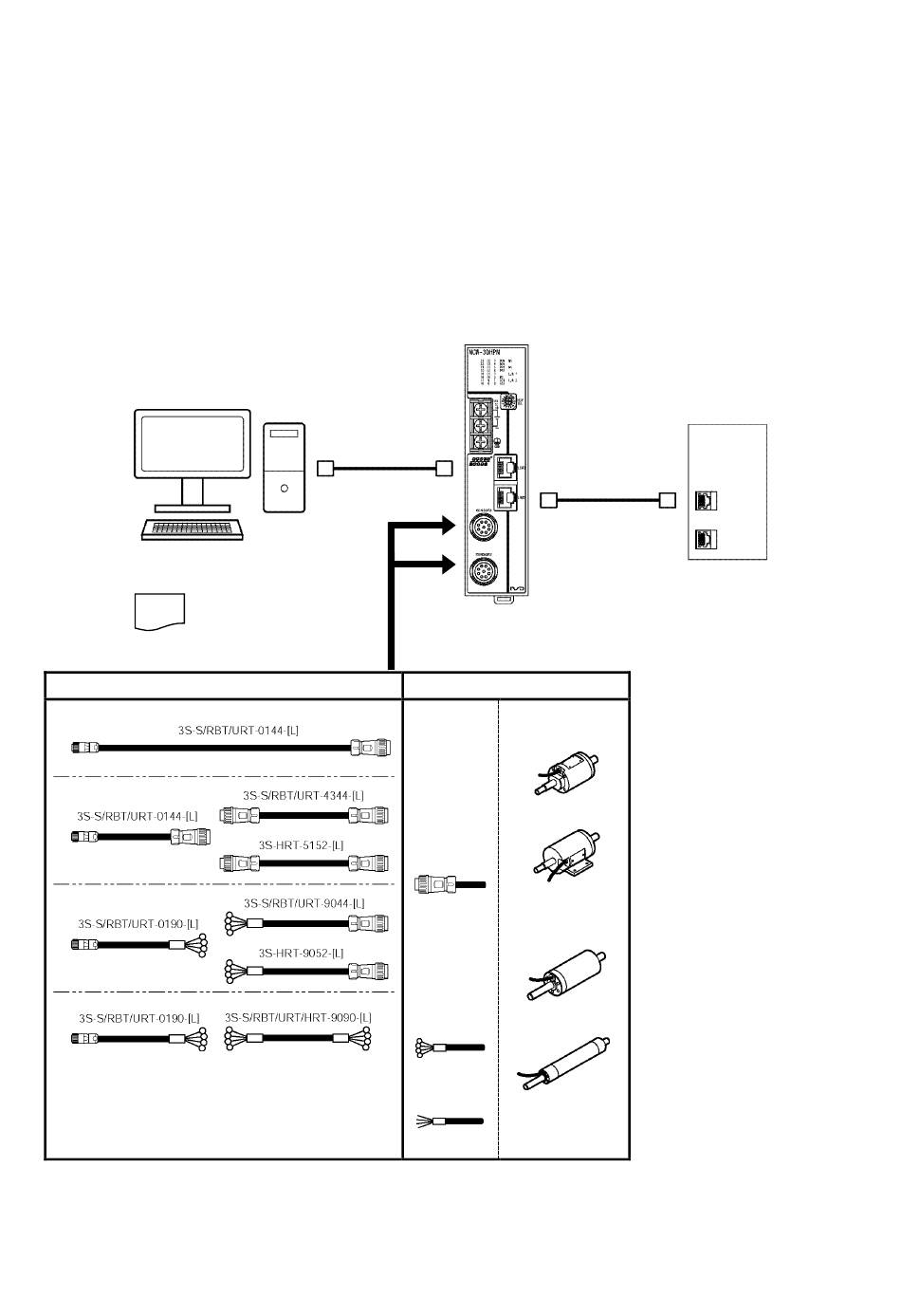

The following figure indicates the connection configuration of NCW-3DHPN.
Before ordering, refer to the connection configuration and model list. Please prepare by customer except (1) to (4) in
the connection configuration.
● Connection configuration
PROFINET controller.
( PLC, Industrial PC )
Configuration Tool
(4) GSDML File
(3) Extension sensor cable
(1) NCW-3DHPN
(PROFINET device)
(2) ABSOCODER sensor
Connector
VLS-8SM20
type
B
VLS-8SM14
R VLS-8SM14S
Z
3
PROFINET device
