Connection To The Voltage Supply X1; Voltage Supply X1; Pin Assignment X1; Circuitry Overview X1 - SMA DATA MANAGER M Operating Manual

SMA Solar Technology AG
Additionally required material (not included in the scope of delivery):
☐ 1 network cable
Requirements:
☐ An Internet router with active Internet connection must be available.
Procedure:
1. Plug the RJ45 connector of the network cable into the network port X16 until the RJ45
connector snaps into place.
2. Connect the other end of the network cable to a an Internet router.

6.15 Connection to the voltage supply X1

6.15.1 Voltage supply X1

An external power supply unit is needed for the voltage supply which is available as an accessory.
In compliance with the requirements on current sources with limited power in accordance with IEC
60950, the power supply unit must not supply more than 30 V and no more than 8 A.
Also see:
• Accessories ⇒ page 80

6.15.2 PIN assignment X1

Voltage supply X1

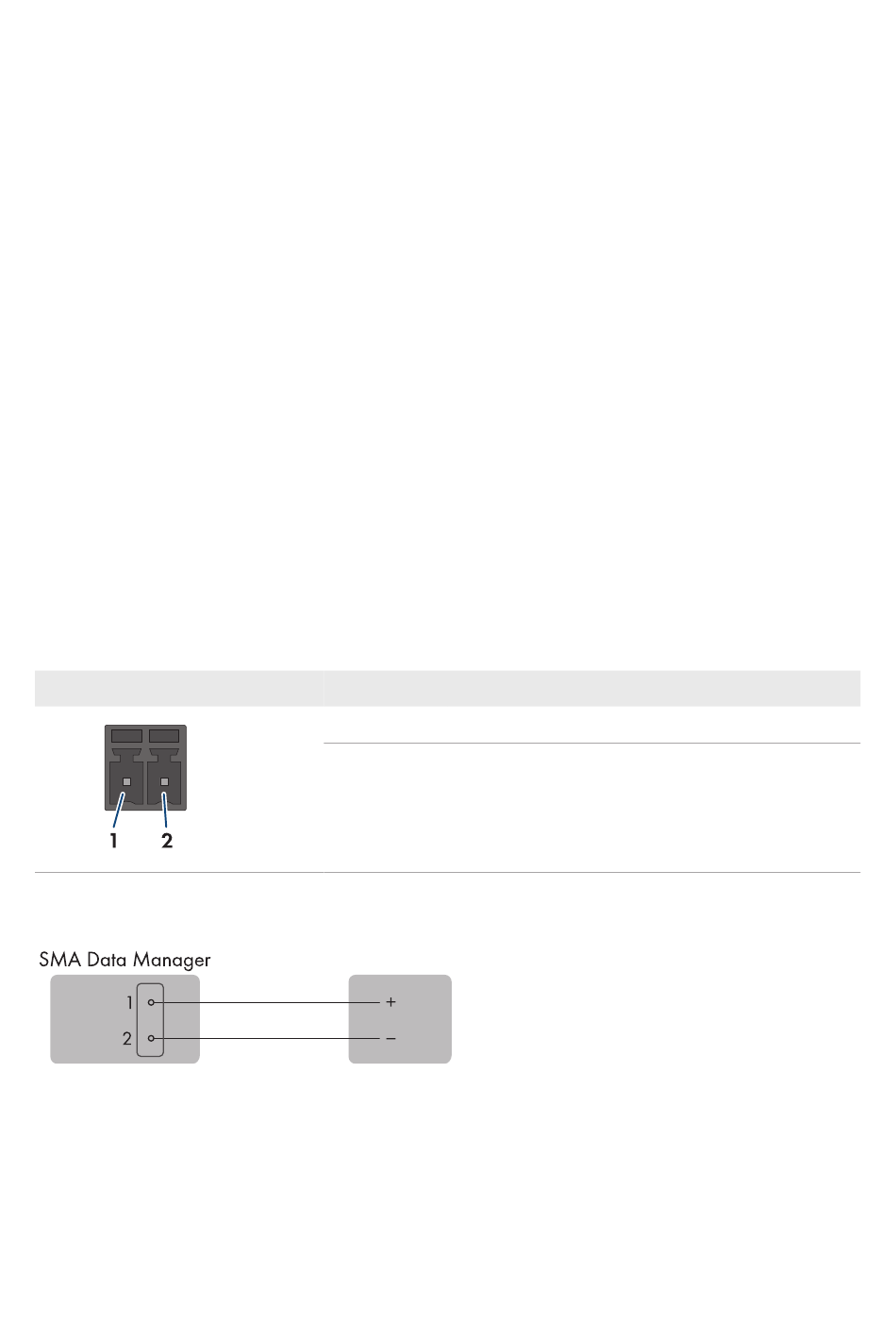

6.15.3 Circuitry overview X1

Figure 19: Connecting the Voltage Supply
Operating manual
Pin Assignment
1 Input voltage 10 V DC to 30 V DC
2 Ground (GND)
10 V to 30 V/typically 8 W
6 Connection
EDMM-20-BE-en-10 47
