☐ The connection cable is prepared for connection to the multipole connector (see Section 6.3,
page 30).
Procedure:
1. Connect the connection cable to the analog remote terminal (see the manual from
manufacturer).
2. Remove the sheath from the connection cable.
3. Fold the surplus cable shield back over the cable sheath.
4. Strip the insulation off the wires.
5. Connect the connection cable to the supplied 2-pole connector. Ensure that the conductors are
plugged completely into the terminal points up to their insulation.
6. Plug the 2-pole connector into the socket X4/X5 on the product. Observe the pin assignment.
7. Ensure that the connector is securely in place.
8. Ensure that all conductors are correctly connected.
9. Ensure that the conductors sit securely in the terminal points.
10. Fit the cable shield onto an external shielding clamp.
6.7

Connection to the analog input X6/X7

6.7.1

Analog inputs X6/X7

You can connect analog signal sources to the four analog inputs X6 and X7. A remote terminal
unit can be used as an analog signal source, for example.
6.7.2

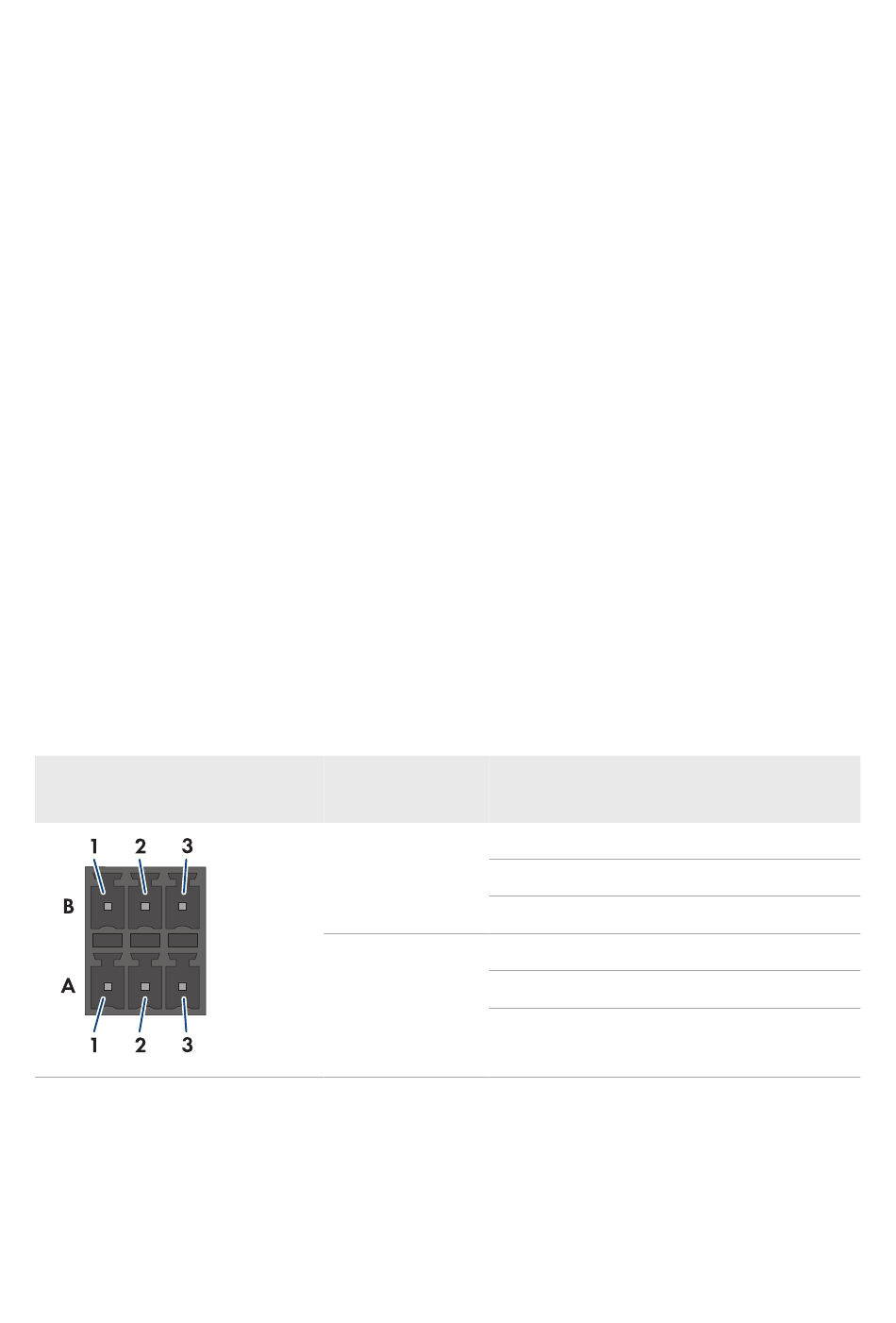

PIN assignment X6

Analog input X6
Operating manual
Row Pin
(User interface)
B 1
(Analog input 2)
2
3
A 1
(Analog input 1)
2
3
6 Connection
Assignment
Current input
Ground (GND)
Do not use
Current input
Ground (GND)
Do not use
EDMM-20-BE-en-10 35
