SMA Solar Technology AG

5.3

Mounting the Product on the Wall

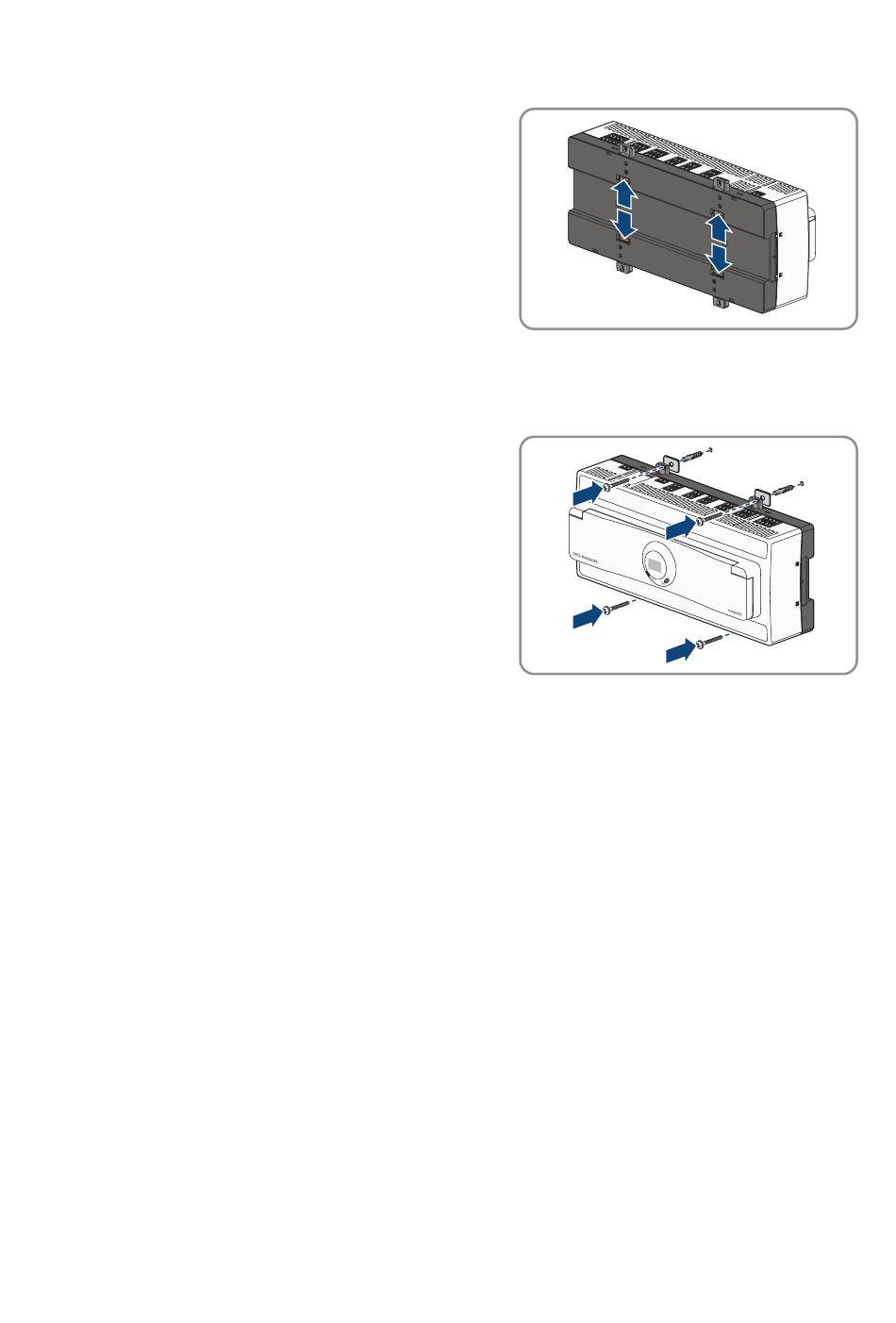

1. Press the four base latches on the back side of the

product out from the inside.

☑ The base latches snap audibly into place.

2. Mark the drill holes using the base latches as a template.

3. Drill the holes and insert the provided screw anchors. Do not drill through the base latches.

4. Insert the provided screws through the base latches

and the supplied washers and tighten. Make sure

not to damage the base latches.

5. Ensure that the product is securely in place.

Operating manual

5 Mounting

EDMM-20-BE-en-10
