5 Mounting

5.1.3

Dimensions for mounting

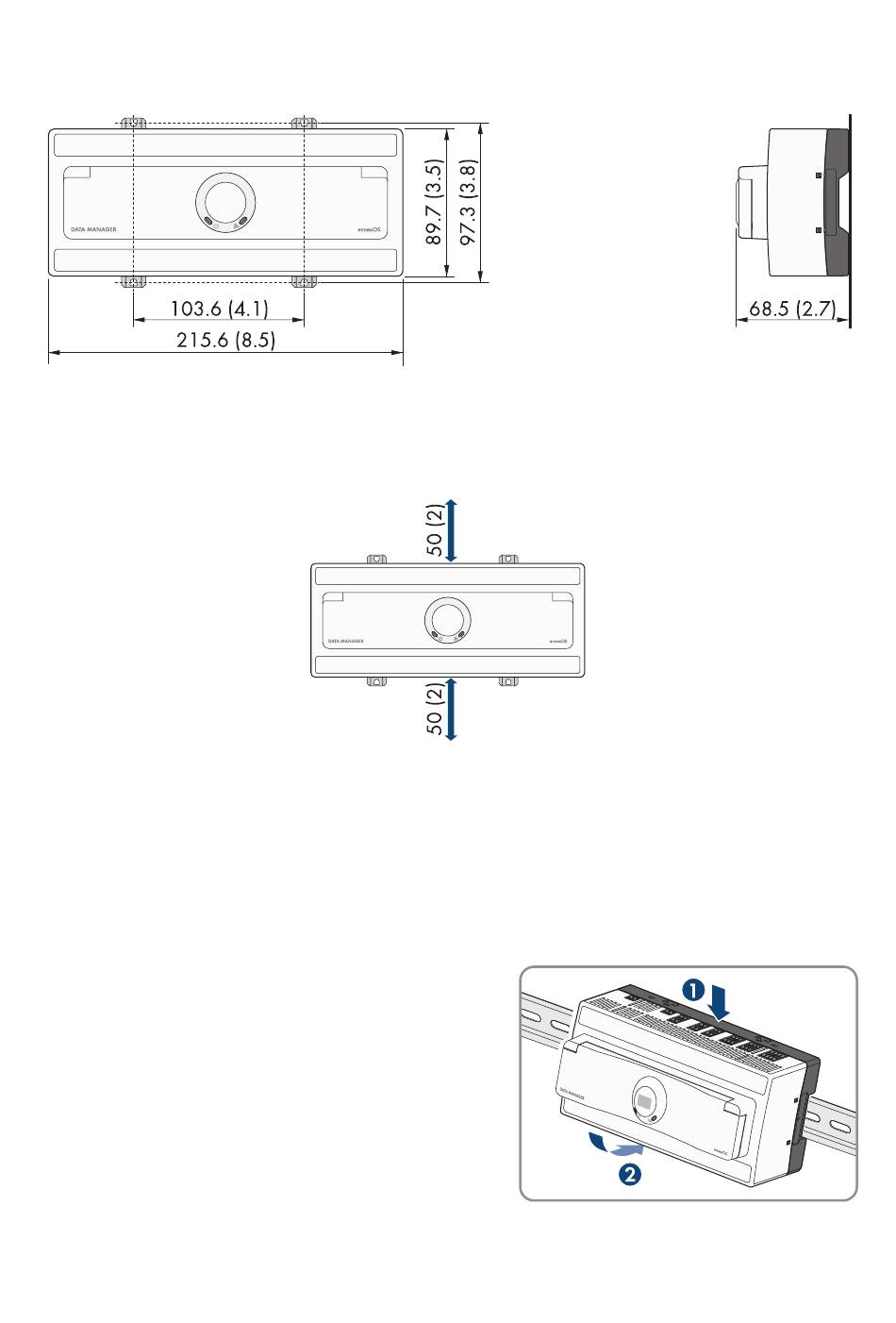

Figure 4: Dimensions for wall mounting (dimensions in mm (in))

5.1.4

☐ A clearance of 50 mm (2 in) must be observed above and below to other objects.

Figure 5: Recommended clearances

5.2

Additionally required mounting material (not included in the scope of delivery):

☐ Top-hat rail (TH 35-7.5)

Procedure:

1. Place the product onto the DIN rail from above and

hook it into place.

☑ The product snaps audibly into place.

2. Ensure that the product is securely in place.

EDMM-20-BE-en-10

SMA Solar Technology AG

Operating manual
