6 Connection
5. Ensure that all conductors are correctly connected.
6. Ensure that the conductors sit securely in the terminal points.

6.12 Connection to the multifunction relay X12/X13

6.12.1 Digital output X12/X13 (MFR)

The multifunction relay (MFR) is a digital output that can be specifically configured to the system.
The three digital outputs X12 and X13 are change-over contacts via which the appropriate remote
terminal can be controlled.
In a system with multiple SMA Data Managers, you must carry out the connection to the
multifunction relay of the System Manager.

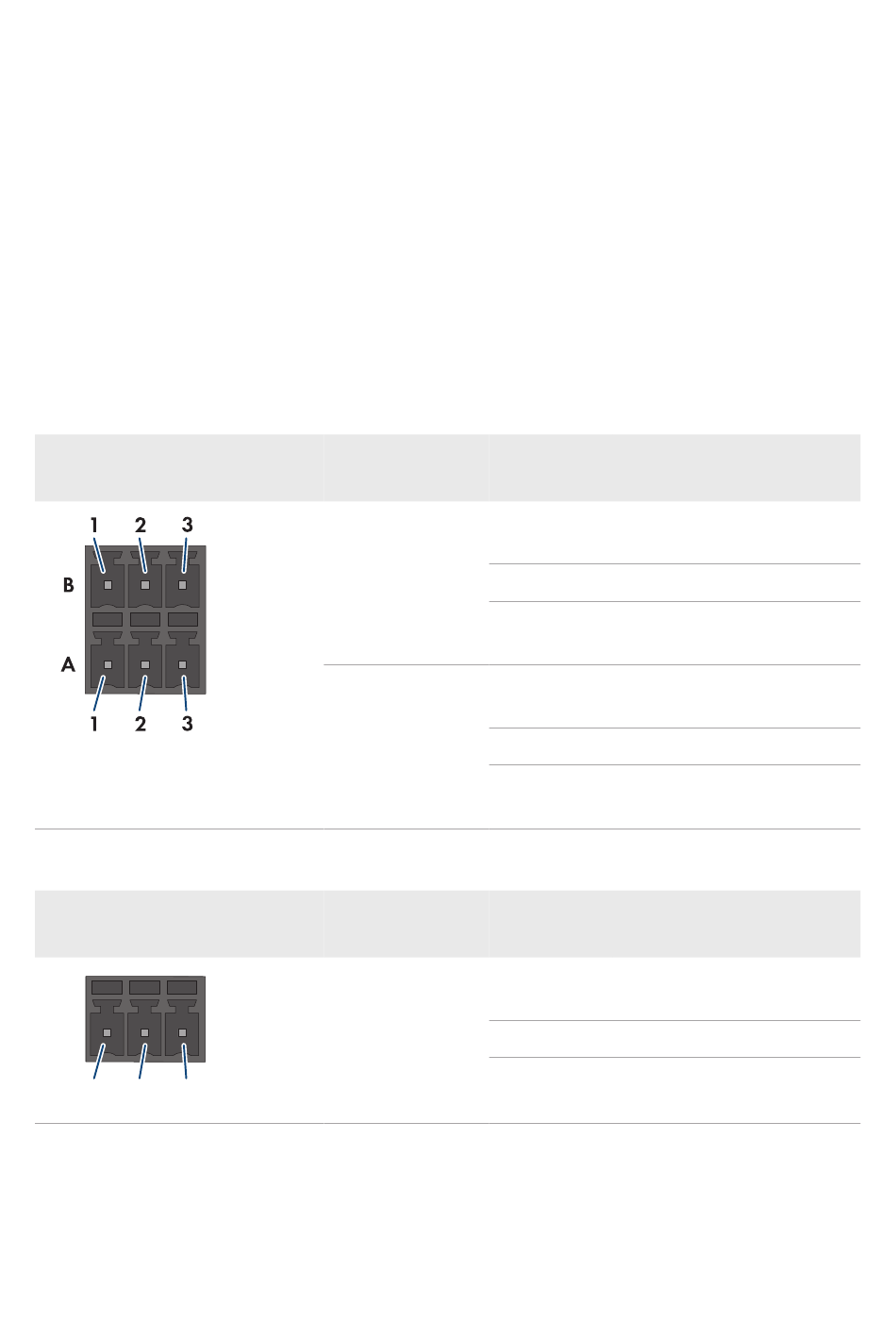

6.12.2 Pin assignment X12 (MFR)

Digital output X12

6.12.3 Pin assignment X13 (MFR)

Digital output X13
1 2 3
44 EDMM-20-BE-en-10
Row Pin
(User interface)
B 1
(Digital output 4)
2
3
A 1
(Digital output 3)
2
3
Row Pin
(User interface)
A 1
(Digital output 5)
2
3
SMA Solar Technology AG
Assignment
Make contact (open when
idle)
COM (common contact)
Break contact (closed when
idle)
Make contact (open when
idle)
COM (common contact)
Break contact (closed when
idle)
Assignment
Make contact (open when
idle)
COM (common contact)
Break contact (closed when
idle)
