SMA Solar Technology AG

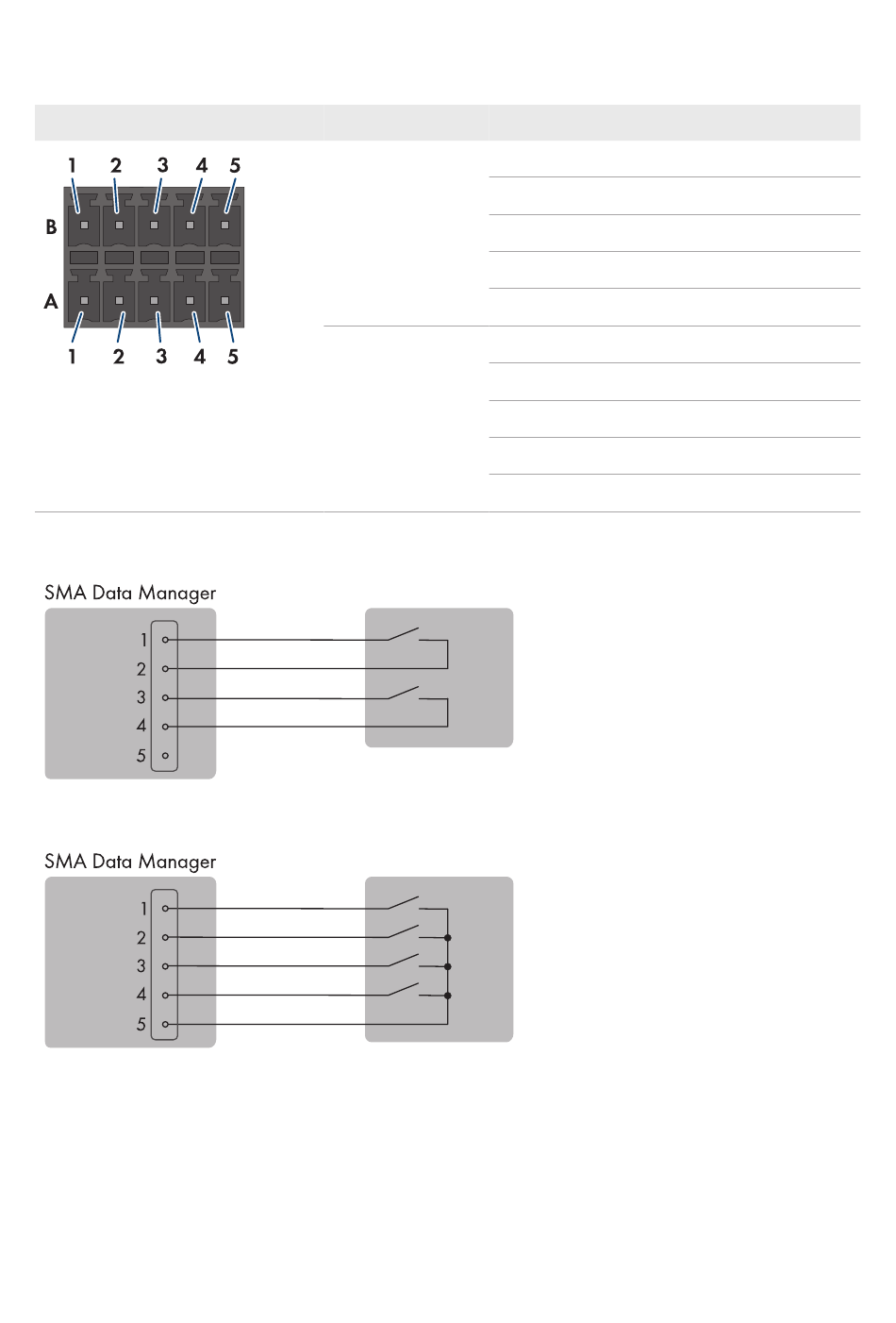

6.10.2 PIN assignment X10

Digital input X10

6.10.3 Circuitry overview X10

Figure 15: Connection example of a digital signal source to terminal X10/row B
Figure 16: Connection example of a ripple control receiver or a digital signal source to terminal X10/row A
Operating manual
Row Pin
B 1
2
3
4
5
A 1
2
3
4
5
Assignment
Digital input 5
Voltage supply output
Digital input 6
Voltage supply output
Do not use
Digital input 1
Digital input 2
Digital input 3
Digital input 4
Voltage supply output
Digital signal source
Ripple control receiver or
digital signal source
EDMM-20-BE-en-10
6 Connection
41
