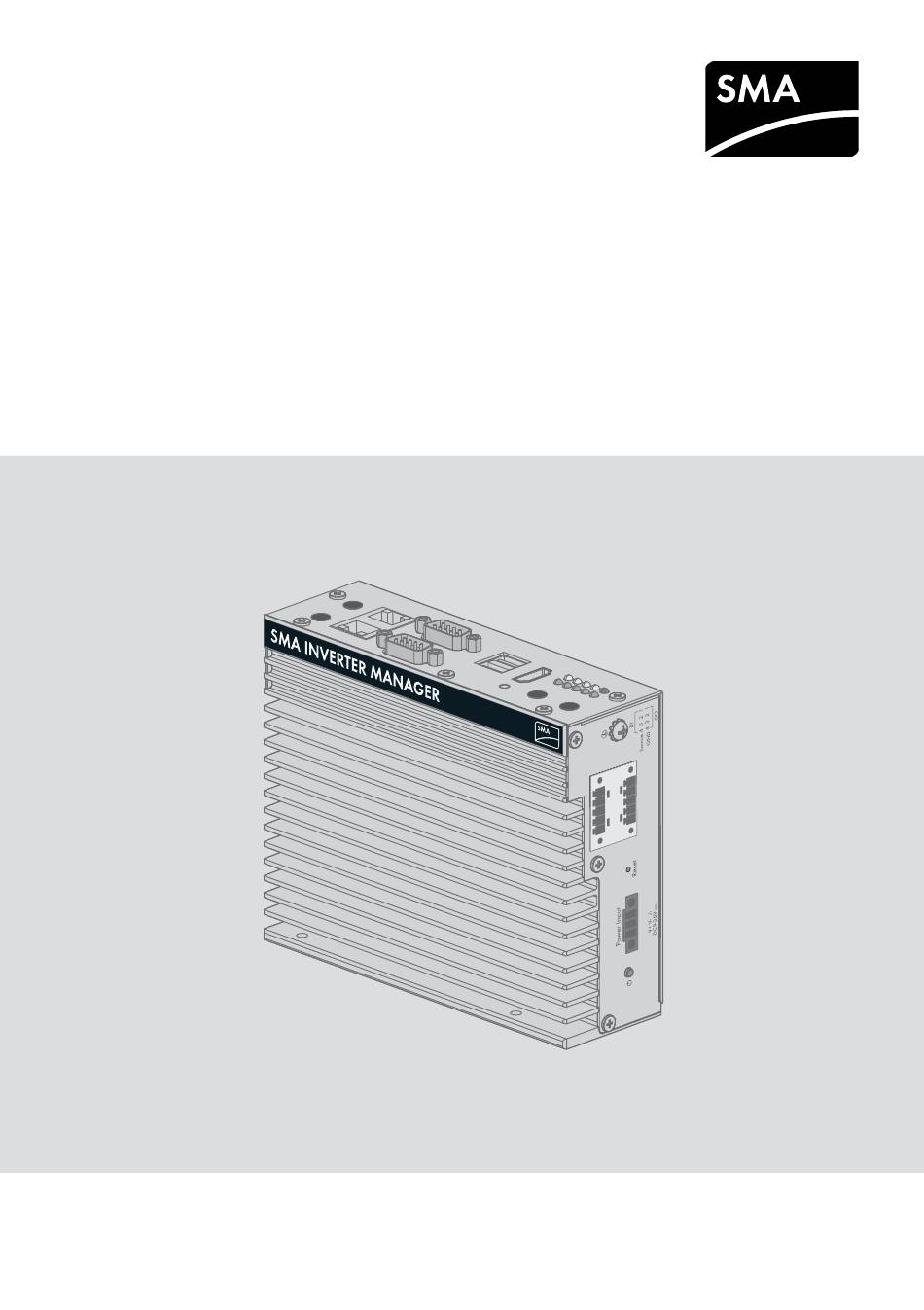

Installation Manual / Installationsanleitung / Instrucciones de
instalación / Instructions d'installation / Istruzioni per l'installazione
SMA INVERTER MANAGER / SMA DIGITAL I/O BOX /
LCS-TOOL
IMVIOBOX-IA-xx-12 | 139R0136 | Version 1.2
ENGLISH / DEUTSCH / ESPAÑOL /
FRANÇAIS / ITALIANO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INVERTER MANAGER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SMA INVERTER MANAGER

  • Page 1 Installation Manual / Installationsanleitung / Instrucciones de instalación / Instructions d’installation / Istruzioni per l’installazione SMA INVERTER MANAGER / SMA DIGITAL I/O BOX / LCS-TOOL IMVIOBOX-IA-xx-12 | 139R0136 | Version 1.2 ENGLISH / DEUTSCH / ESPAÑOL / FRANÇAIS / ITALIANO...
  • Page 2   SMA America, LLC IMVIOBOX-IA-xx-12...
  • Page 3: Target Group

    Explanation Information that is important for 1.1 Validity a specific topic or goal, but is This document is valid for the SMA Inverter Manager, the not safety-relevant SMA Digital I/O Box, and for the LCS tool. ☐ Indicates a requirement for meeting a specific goal 1.2 Target Group...
  • Page 4: Intended Use

    The Inverter Manager receives the specifications from the I/O Box and controls all inverters in the system accordingly. The Inverter Manager and the I/O Box must only be used indoors and must only be operated with the SMA inverter Sunny Tripower 60 (STP 60-10, STP 60-JP-10 and STP 60-US-10).
  • Page 5: Option 1: Wall Mounting

    3.2.2 Option 2: Mounting on Top-Hat Rail Inverter Manager Damage to the products and cables due to moisture The Inverter Manager and the I/O Box are not protected against splash water. Consequently, moisture can penetrate the device and damage the products and cables.
  • Page 6 3 Inverter Manager SMA Solar Technology AG / SMA Solar Technology America LLC 3.3 Connection to the Inverter Manager 3.3.1 Safety Information Danger to life due to electric shock Lethal voltages are present at the connection point of the utility grid.
  • Page 7 SMA Solar Technology AG / SMA Solar Technology America LLC 3 Inverter Manager 3.3.3 Connecting the Inverter and Contact pin Assignment Router via Ethernet Pin assignment of network ports (LAN 1 and LAN 2): DataB(+) DataA(-) Contact Assignment for Assignment for...
  • Page 8 Connecting the Power Supply Unit LAN 1 (system network) The IP address and the subnet mask are assigned to the LAN 1 port of the Inverter Manager by an external DHCP server. An IP address can be manually assigned to LAN 1 Port of 9 to 36 VDC the Inverter Manager.
  • Page 9: Technical Data

    SMA Solar Technology AG / SMA Solar Technology America LLC 3 Inverter Manager 3.5 LED Signals of the General data Inverter Manager Approvals UL 508, UL 60950-1, CSA C22.2 No. 60950-1-07, State Explanation EN 60950-1, CCC (GB9254, GB17625.1), Power Glowing...
  • Page 10 4.2 Mounting the I/O Box COM0 Damage to the products and cables due to moisture The Inverter Manager and the I/O Box are not protected COM0 against splash water. Consequently, moisture can penetrate the device and damage the products and cables.
  • Page 11: Connecting The Signal Source

    Do not connect during operation DIO5 DIO6 DIO7 Do not connect the I/O Box to the Inverter Manager during operation. Errors might occur that cannot be Connection of a Signal Source (10 V to 30 V) detected immediately. with Digital Output Signals •...
  • Page 12 4 I/O Box SMA Solar Technology AG / SMA Solar Technology America LLC System data Diameter of the varistor leads Storage temperature -40°C to +85°C For safety reasons the varistor leads for the electricity supply must have a diameter of at least 2 mm².
  • Page 13 5 LCS tool 5 LCS tool INFORMATION The STP 60 inverters and the Inverter Manager must be The LAN 1 port of the Inverter Manager must have commissioned via the local commissioning and service tool an IP address assigned by a DHCP server that is (LCS tool).
  • Page 14 5 LCS tool SMA Solar Technology AG / SMA Solar Technology America LLC Figure 5.2 LCS tool - start screen 3. Assign a password for your user group when first registering. The security status of your password is displayed. 4. Verify that date and time are correct. If not, set date and time and continue.
  • Page 15 SMA Solar Technology AG / SMA Solar Technology America LLC 5 LCS tool 5. Optionally, you can assign a name, location and owner of the Inverter Manager. See figure 5.4. Figure 5.4 LCS tool - PV system details 6. A list of the identified inverters of the selected Inverter Manager is displayed.
  • Page 16 5 LCS tool SMA Solar Technology AG / SMA Solar Technology America LLC Figure 5.5 LCS tool - list of the connected inverters 8. Select the desired grid code from the list of options available for the selected country. If necessary, load a 7.
  • Page 17 SMA Solar Technology AG / SMA Solar Technology America LLC 5 LCS tool 9. The LCS tool prompts for a confirmation of the selected country and grid code. See figure 5.7. A wrong configuration can be changed by clicking the [Back] button and by changing the settings in the previous window.
  • Page 18 5 LCS tool SMA Solar Technology AG / SMA Solar Technology America LLC Figure 5.8 LCS tool - list of all inverters connected to the Inverter 13. During commissioning it is possible to download a Manager commissioning report in the Reports menu. The report 12.
  • Page 19: Operation

    SMA Solar Technology AG / SMA Solar Technology America LLC 5 LCS tool 5.2 Operation 5.2.1 Forgotten Password? Figure 5.10 LCS tool - forgotten password? If you have forgotten the password for the user interface, you can log in with a Personal Unlocking Key (PUK). Each user group has its own PUK.
  • Page 20 SMA Solar Technology AG / SMA Solar Technology America LLC 5.2.2 Changing the Grid Code Figure 5.11 LCS tool - entering the SMA Grid Guard code To reset the Inverter Manager after the first ten operating hours and to select a new country data set, use your SMA Grid Guard code under the user group Installer (see certificate "Order form for the SMA Grid Guard code"...
  • Page 21: Updating The Firmware

    SMA Solar Technology AG / SMA Solar Technology America LLC 5 LCS tool 5.2.3 Updating the Firmware Figure 5.12 LCS tool - manual firmware update You can carry out the firmware update of the Inverter Manager manually. It is recommended to use the latest Damage to the products due to disruption of the version of the LCS tool.
  • Page 22 5 LCS tool SMA Solar Technology AG / SMA Solar Technology America LLC 5.2.4 Setting the System Fallback Figure 5.13 LCS tool - setting the fallback parameter A system fallback can be configured in the event of a communication failure between the Inverter Manager and a superior control unit (e.g.
  • Page 23 SMA Solar Technology AG / SMA Solar Technology America LLC 5 LCS tool 5.2.5 Setting Limited Export Figure 5.14 LCS tool - setting Limited Export With the Limited Export feature in connection with an energy meter, a maximum AC output power can be made available at the grid-connection point.
  • Page 24 5 LCS tool SMA Solar Technology AG / SMA Solar Technology America LLC 5.2.6 Changing of Inverter Parameters Figure 5.15 LCS tool - changing of inverter parameters All inverter parameter are Grid Guard protected and require the Grid Guard code for changes. To change the inverter settings, use your SMA Grid Guard code under the user group Installer (see section 5.2.2, page 20).
  • Page 25 SMA Solar Technology AG / SMA Solar Technology America LLC 5 LCS tool Figure 5.16 LCS tool - deactivating/activating the inverter parameters Changing signs on power factor parameters To change signs on power factor parameters, click on the sign using the left mouse button.
  • Page 26 5 LCS tool SMA Solar Technology AG / SMA Solar Technology America LLC Setting the I/O Box Parameters To enter the parameters in the sub-menu I/O Box, click on the input fields using the right mouse buttons. Figure 5.18 LCS tool - setting the I/O Box parameter 5.2.7 Logs...
