I-Pi-SMARC User's Guide
Can Bus
Termination
SPI1
1.8-3.3V
Page 8
USB
HDMI
SMARC 2.0/2.1
mux
coupling
Power sequence
copyright © 2024 ADLINK Technology Inc.

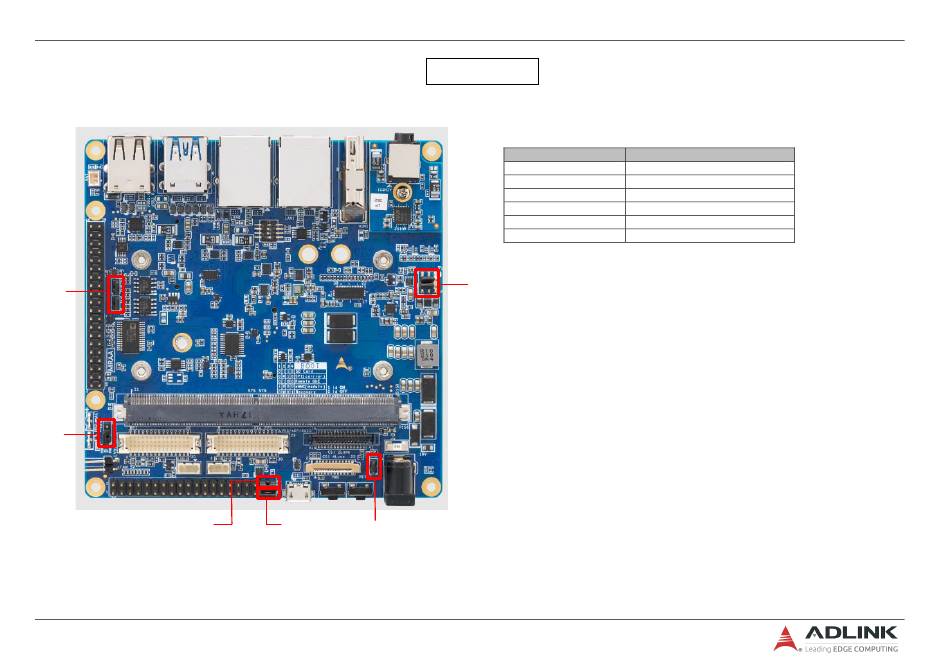

Jumper settings
Interface
Can bus
LVDS backlight
SPI1 voltage
USB mux
HDMI coupling
SMARC power sequence
LVDS-EL
3.3-5V
.
SGET SMARC Rev 2.1
Setting
On = Terminated 120 Ohm
1-3 = 5V | 3-5 = 3.3V
1-2 = 1.8V | 2-3 = 3.3V
36-38 = M.2 | 38-40 = USB
35-37 = AC | 37-39 = DC
On = 2.1 | Off = 2.0
