I-Pi-SMARC User's Guide
Page 7

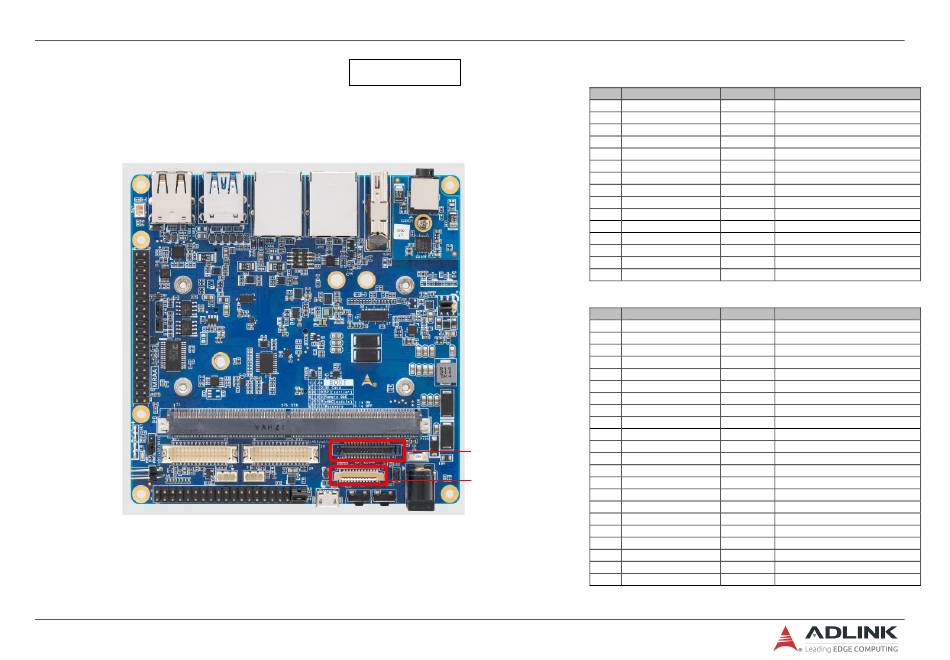

CSI connectors
CSI0
CSI1
copyright © 2024 ADLINK Technology Inc.
SGET SMARC Rev 2.1
CSI0
Pin# Name Type
1 CAM_3V3 Power
2 CAM0_I2C_DAT_3V Bidirection
3 CAM0_I2C_CK_3V Bidirection
4 CAM0_MCK_3V_R Input
5 CAM0_GPIO0_3V Input
6 CAM0_GPIO2_3V Input
7 CSI0_CK_P Output
8 CSI0_CK_N Output
9 GND Power
10 CSI1_D1_P Output
11 CSI1_D1_N Output
12 GND Power
13 CSI1_D0_P Output
14 CSI1_D0_N Output
15 GND Power
CSI1
Pin# Name Type
1 CAM_3V3 Power
2 CAM1_I2C_DAT_3V Bidirection
3 CAM1_I2C_CK_3V Bidirection
4 CAM1_MCK_3V_R Input
5 CAM1_GPIO3_3V Input
6 CAM1_GPIO1_3V Input
7 GND Power
8 CSI1_D3_P Output
9 CSI1_D3_N Output
10 GND Power
11 CSI1_D2_P Output
12 CSI1_D2_N Output
13 GND Power
14 CSI1_CK_P Output
15 CSI1_CK_N Output
16 GND Power
17 CSI1_D1_P Output
18 CSI1_D1_N Output
19 GND Power
20 CSI1_D0_P Output
21 CSI1_D0_N Output
22 GND Power
Description
3.3V Power
I2C SDA
I2C SCL
Camera Main Clock
GPIO for LED
GPIO for Enable
MIPI Clock Lane Positive
MIPI Clock Lane Negative
Ground
MIPI Data Lane 1 Positive
MIPI Data Lane 1 Negative
Ground
MIPI Data Lane 0 Positive
MIPI Data Lane 0 Negative
Ground
Description
3.3V Power
I2C SDA
I2C SCL
Camera Main Clock
GPIO for LED
GPIO for Enable
Ground
MIPI Data Lane 3 Positive
MIPI Data Lane 3 Negative
Ground
MIPI Data Lane 2 Positive
MIPI Data Lane 2 Negative
Ground
MIPI Clock Lane Positive
MIPI Clock Lane Negative
Ground
MIPI Data Lane 1 Positive
MIPI Data Lane 1 Negative
Ground
MIPI Data Lane 0 Positive
MIPI Data Lane 0 Negative
Ground
