3.6. Monitoring the CC-Link Communication State
The communication state can be monitored using AX Tools Ver 2.10 or later.
i) I/O view
Select "Monitor" - "I/O signal state indication" from the menu of the AX Tools to display the
screen for "I/O indication".
ii) I/O check
The I/O state by CC-Link communication can be monitored.
"*" shows negative logic, thus, the I/O indication will indicate ON when it is open.
iii) CC-Link monitor
Communication error information can be checked by selecting "CC-Link" at the lower part of
"I/O indication".

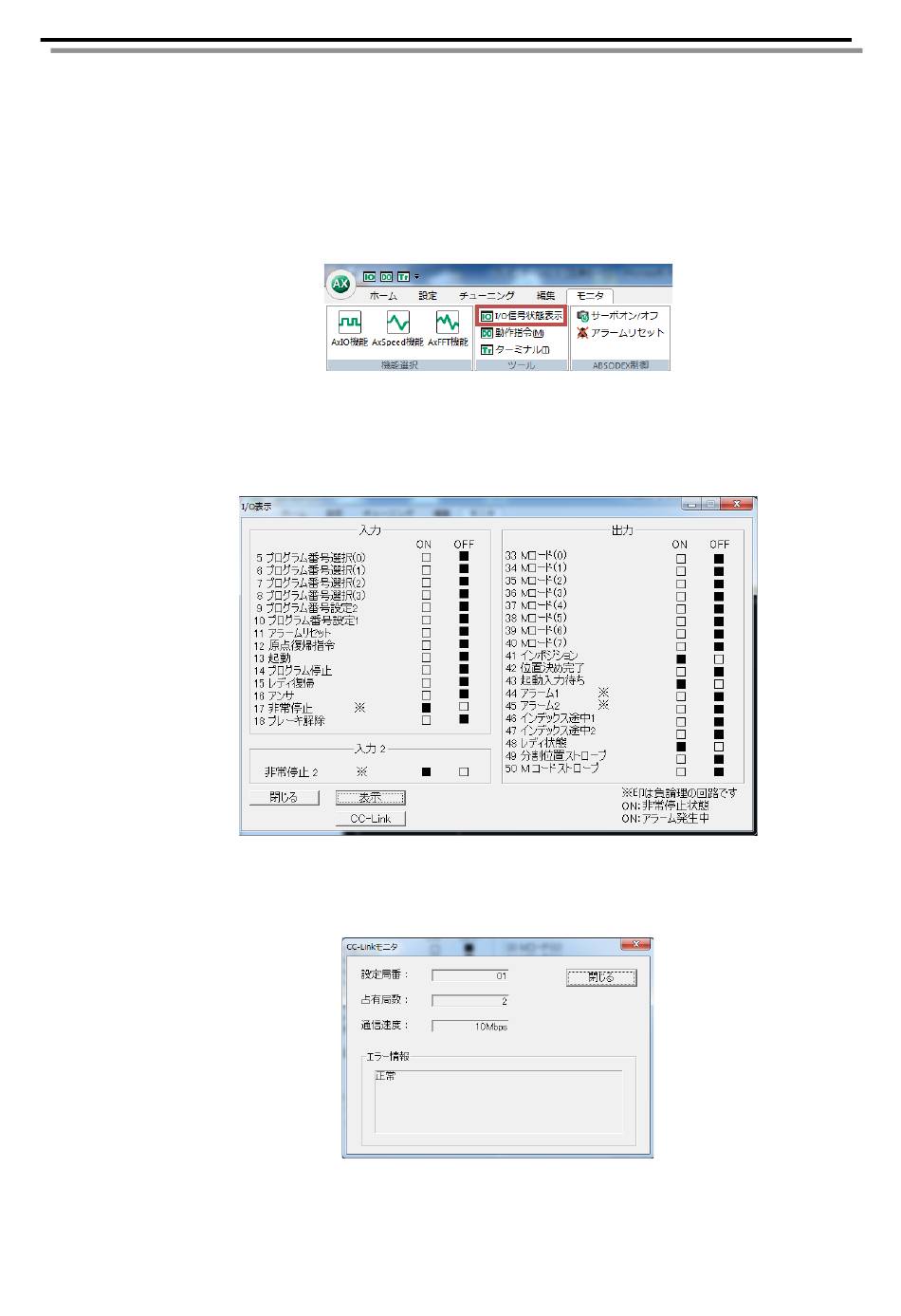

Fig. 3.15. AX Tools monitor menu
Fig. 3.16. Screen example of I/O indication
Fig. 3.17. Screen example of CC-Link monitor
