3. CC-Link Communication Function
3.4. Defining the CC-Link Register
Set the station number and baud rate using AX Tools Ver 2.12 or later.
The default station number is 1 and the default baud rate is 4 (10 Mbps).

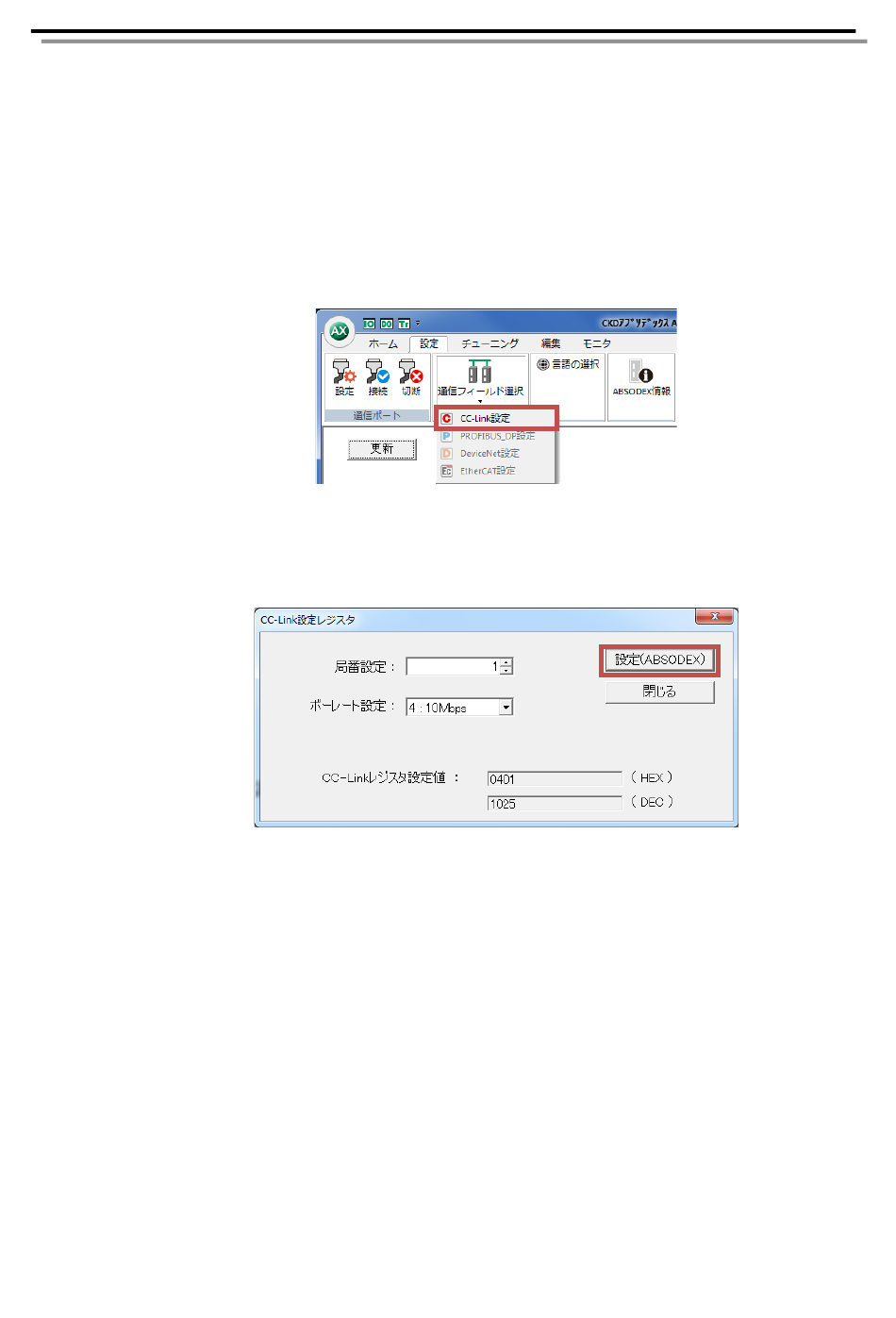

i)
CC-Link setting screen
Select "Setting" > "Communication Filed Selection" > "CC-Link Setting" from the menu of
the AX Tools to open the "CC-Link Setting Register" screen.
ii)
CC-Link setting register
Check that a value is displayed on the CC-Link register setting and select "Setting
(ABSODEX)".
<Station No. setting>
The current station number setting is displayed. The current station number setting is
displayed.
<Baud rate setting>
The current baud rate setting is displayed.
Select the desired one among 0 (156kbps), 1 (625kbps), 2 (2.5Mbps), 3 (5Mbps) and 4
(10Mbps).
<CC-Link register setting>
The specified values of the station number and baud rate registers are displayed.
<Set (ABSODEX)>
Click on this button to transfer new data to the register of ABSODEX.
<Close>
Click on this button to close the screen.
[SMF-2008]
Fig. 3.5. Setting menu of AX Tools
Fig. 3.6. Setting screen of CC-Link register
― 3- 11 ―
