CKD ABSODEX AX Series Instruction Manual page 30

3. CC-Link Communication Function
v) Check of network connection
Whether the communication is normal can be checked using the following method.
If there is no error in "Diagnosis" - "CC-Link/CC-Link/LT diagnosis" in the menu, "Diagnosis
result | System is normal" is displayed.
If there is an error, "Diagnosis result | × error * cases" is displayed.
[SMF-2008]

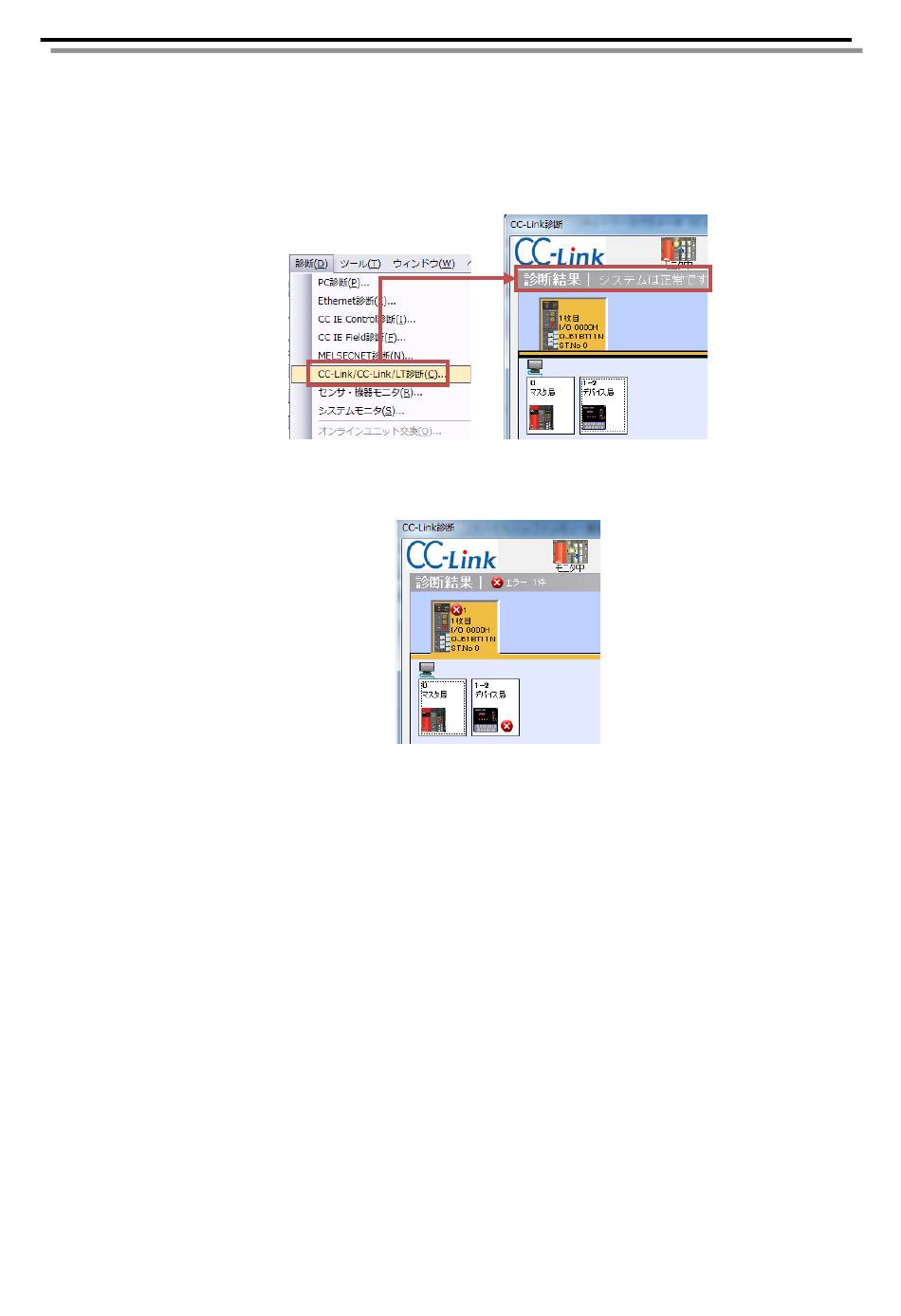

Fig. 3.13. Network diagnosis (normal)
Fig. 3.14. Network diagnosis (abnormal)
