3. CC-Link Communication Function
3.5. Connection with CC-Link Unit
The connection method in the PLC setting software manufactured by the Mitsubishi Electric
Corporation is explained.
The ABSODEX driver is based on the premise that the station number is 1.
i) Display of network parameter CC-Link
After a new project is created, a project tree on the navigation window is displayed.
Select "Parameter" - "Network parameter" - "CC Link".
ii) Setting example of network parameter CC-Link
The following shows a network parameter setting example.
[SMF-2008]

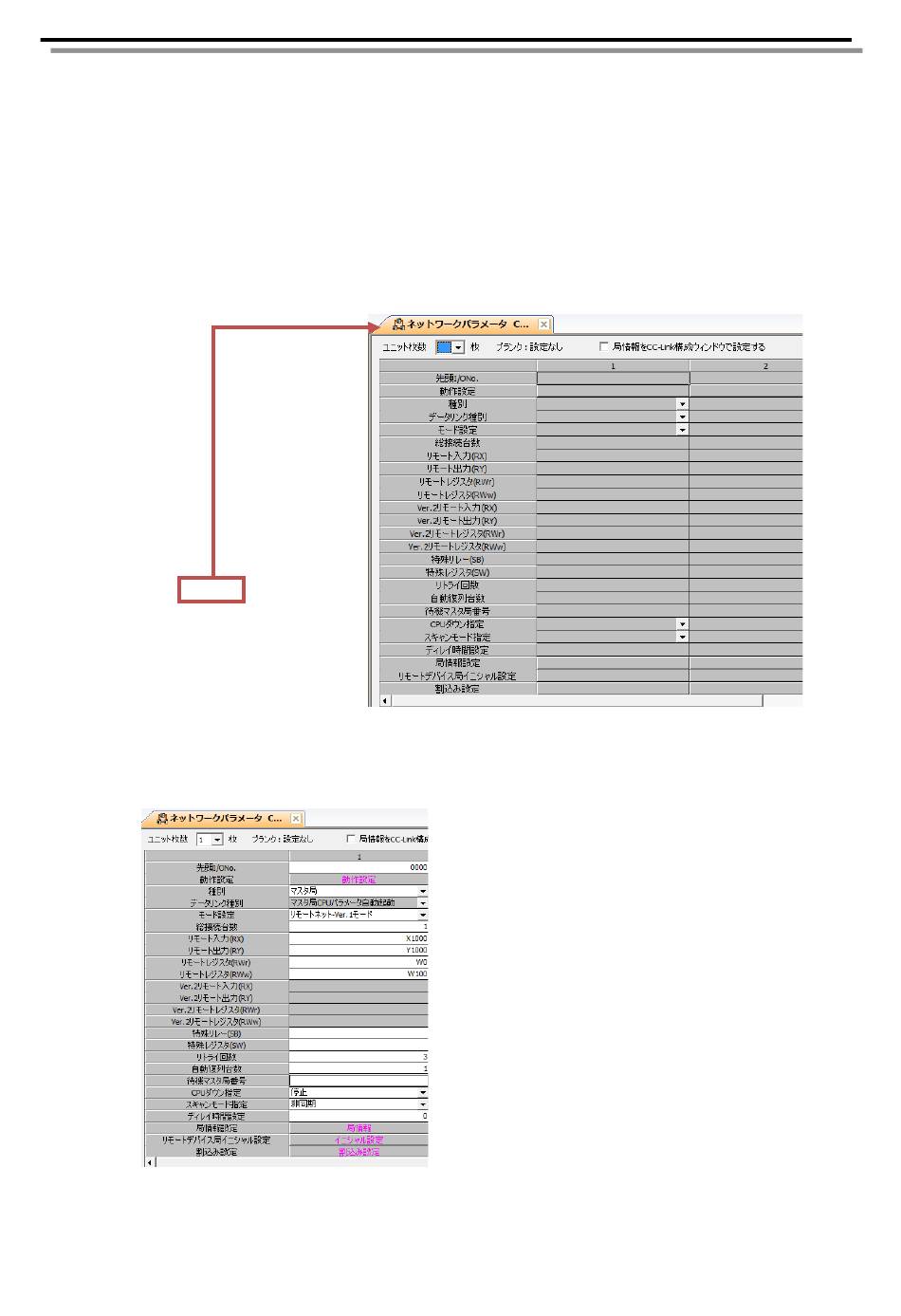

Fig. 3.9. Screen for network parameter
• Mode setting
"Remote net-Ver. 1 mode"
• Remote input (RX)
"X1000"
• Remote output (RY)
"Y1000"
• Remote register (RWr)
"W0"
• Remote register (RWw)
"W100"
Initial value or arbitrary value in other cases
Fig. 3.10. Setting example of network parameter
