Summary of Product parts

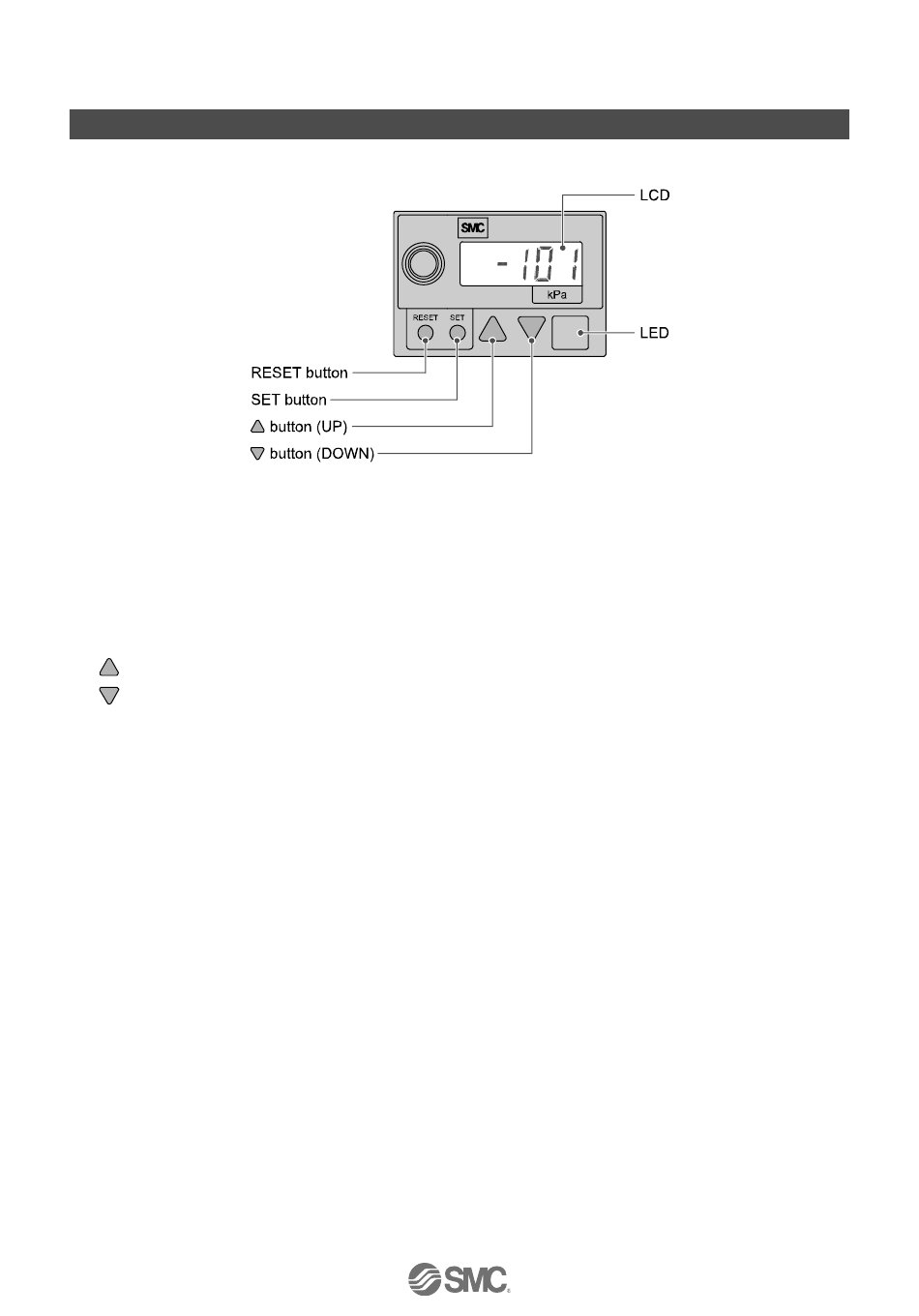

○Names of individual parts
RESET button: Resets at error occurrence and for zero clear of the display.
SET button: Switches the setting mode and enters the set value.
LCD: Displays pressure value, setting mode, and error code.
LED: The green LED lights up when output OUT1 is ON. The red LED lights up when output OUT2 is ON
and failure predictive output. When both OUT1 and OUT2 are ON, both the green and red LEDs
light up. Upon error occurrence, the red LED flashes.
button (UP): Switches to the peak display mode and increases the ON/OFF set value.
button (DOWN): Switches to the bottom display mode and decreases the ON/OFF set value.
-10-
No.PS※※-OMO0002-B
