Step
4
Proceed to the following sections to load the cartridge, syringes, and collection tubes.
Refer to the formulation screen while preparing these items, as the syringes and
required volumes are displayed in the formulation summary in the top half of the
screen.
NanoAssemblr Ignite and Ignite+ Operating Instructions NIN1134 AA
Action
Result:

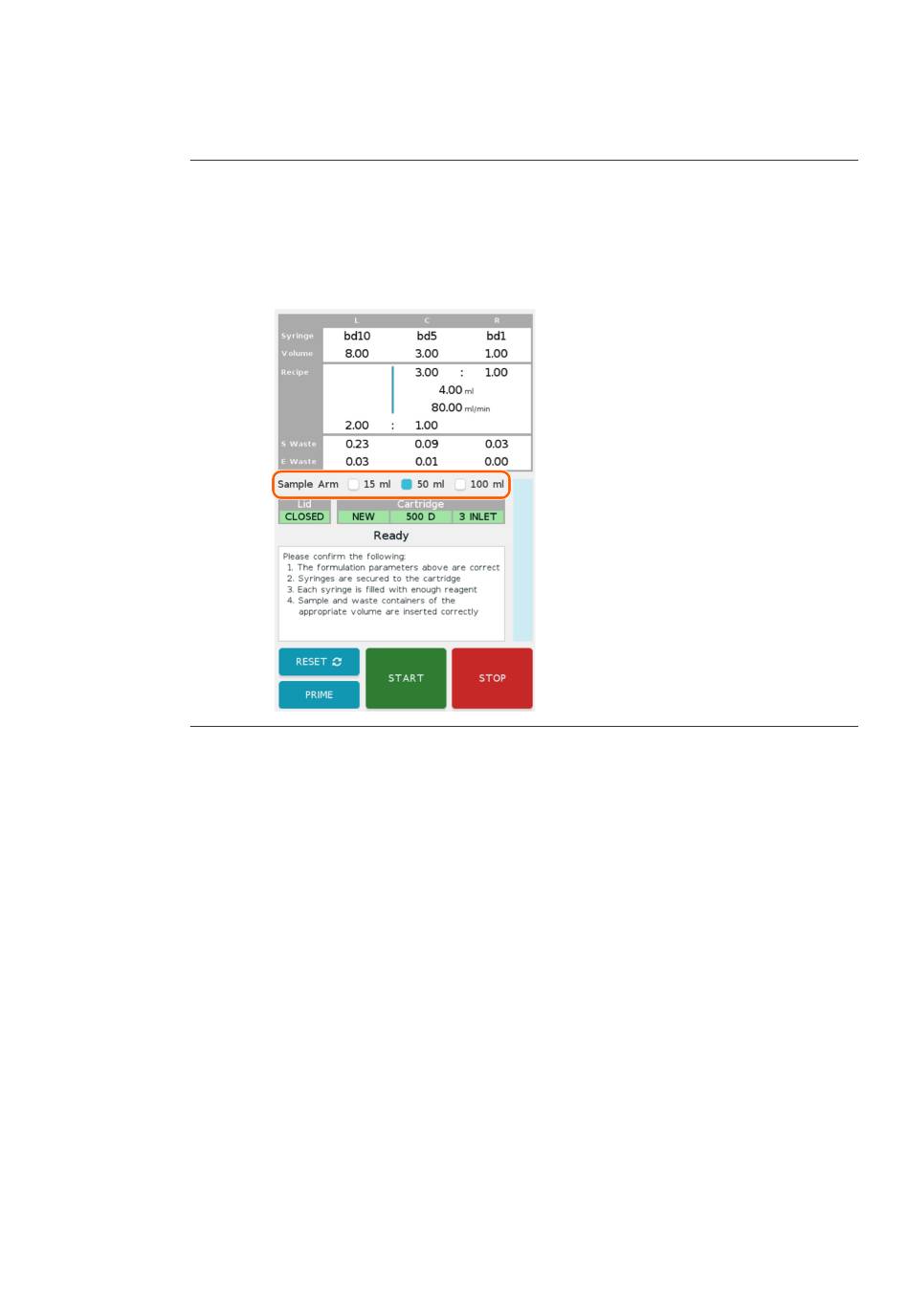

The formulation screen appears. The chosen parameters and next steps are
displayed on the screen.
If using Ignite+, select the sample arm size by tapping the Sample Arm
check box.
6 Operation
6.3 Run a procedure
6.3.4 Initiate a run
89
