Syringe extenders

Syringe extenders can be used to extend the overall length of certain syringes that are
too short to use in the Ignite and Ignite+ systems. To use the syringe extender, the
flange of the syringe plunger is inserted into a slot in the syringe extender and the

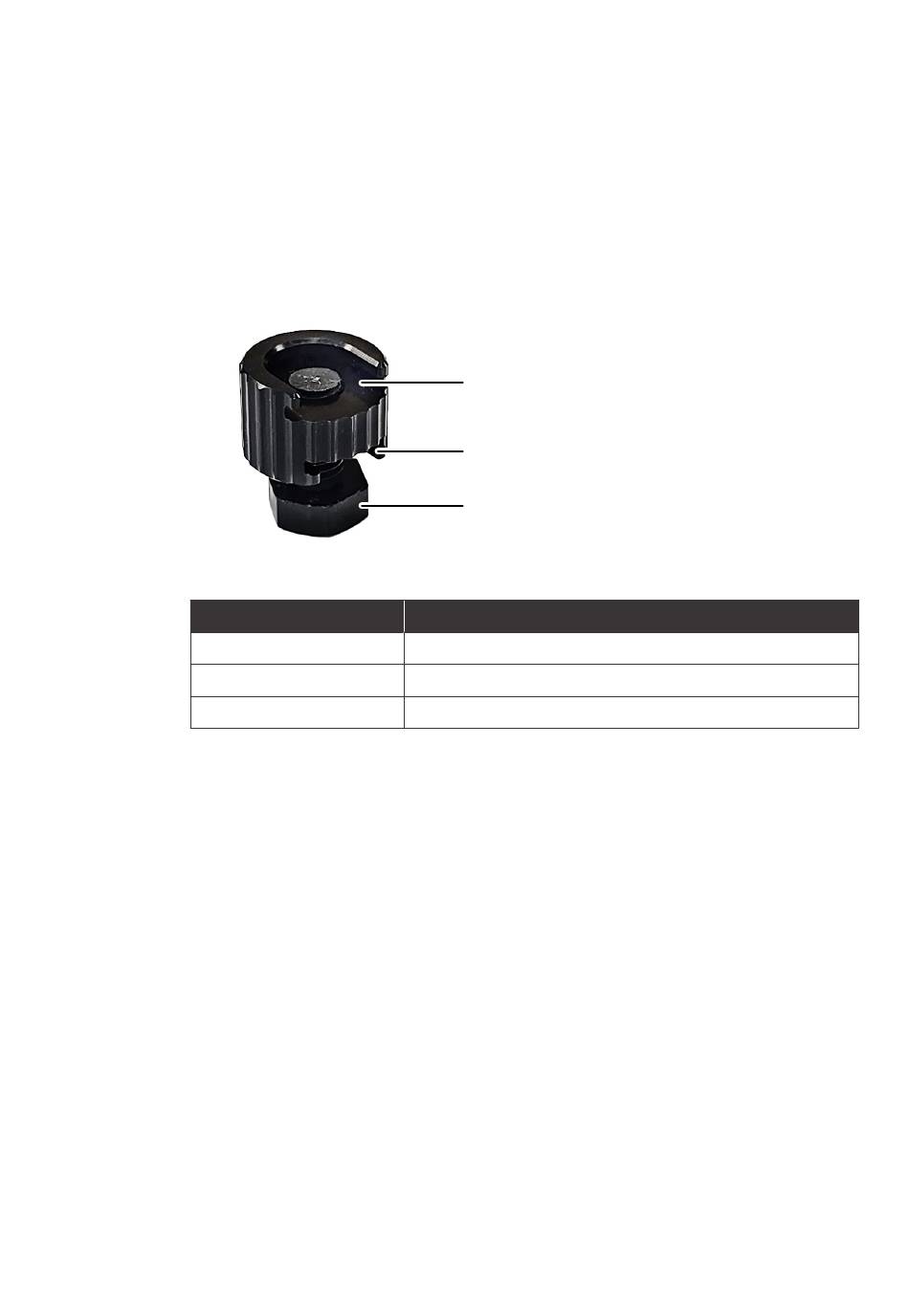

syringe is secured with a fastening screw. The illustrations below shows the parts of a
syringe extender.
Part
1
2
3
Syringe extenders must be used with the following syringe manufacturers and sizes:
• B Braun Injekt syringes, 2 mL
• Terumo syringes, 2.5 mL
See Section 9.5 Ordering information, on page 130
NanoAssemblr Ignite and Ignite+ Operating Instructions NIN1134 AA
1
2
3
Description
Slot to insert the flange of the syringe plunger
Slot to insert the fastening screw
Fastening screw to secure the syringe
for more information.
