Shenchen Peristaltic Pump

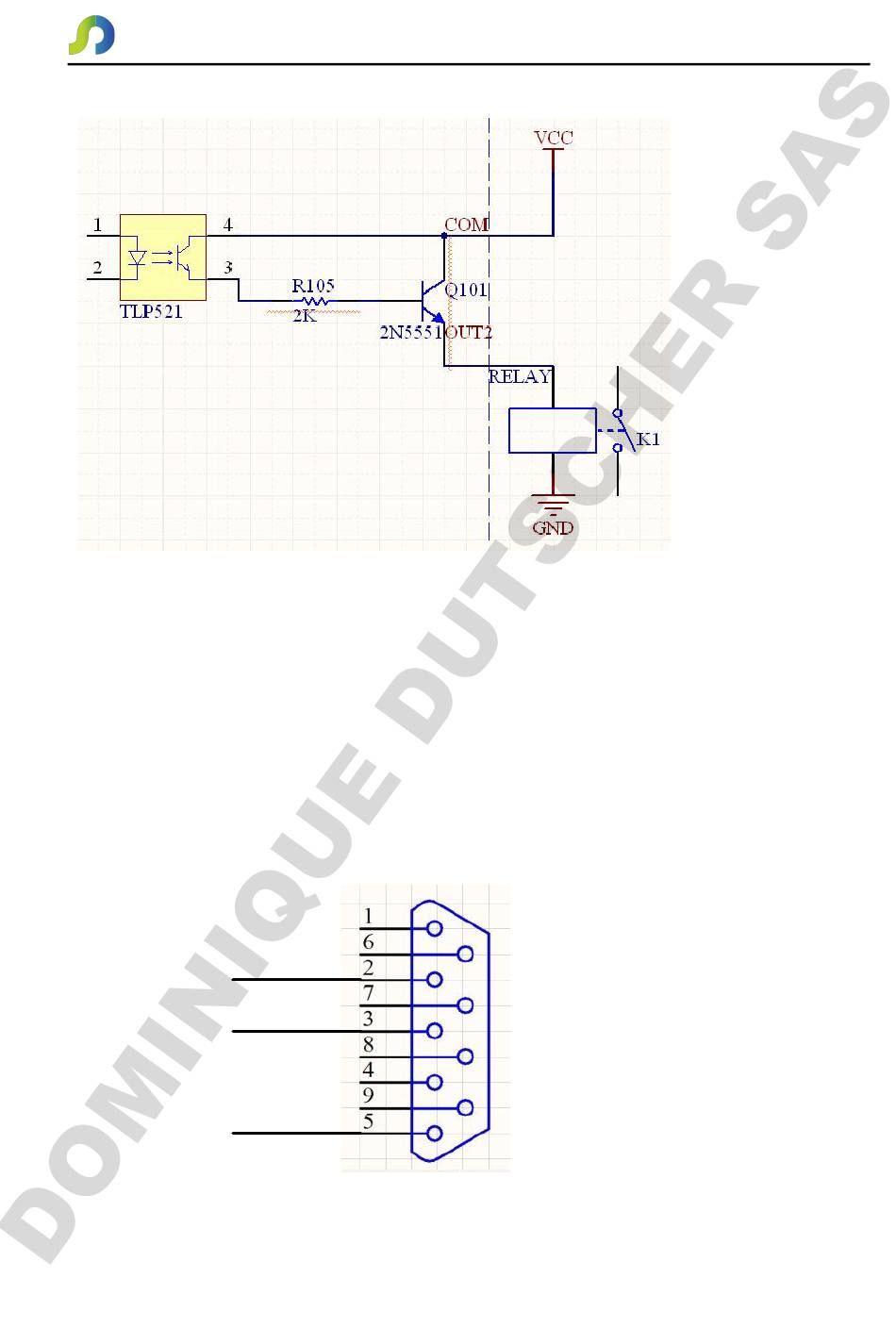

If connect with relays, when the motor running, K1 connect; when the
motor stop running, the K1 disconnect.
⑥、 RS232 Communication : Choose RS232 in the Communication
setting interface, this terminal is active.
GND: Communication ground terminal.
TXD: Master sending, peristaltic pump receive signal terminal.
RXD: Peristaltic pump sending, master receive signal terminal.
RS232 Communication Interface Connection Diagram as below:
RXD
TXD
GND
- 22 -
LabV Series
