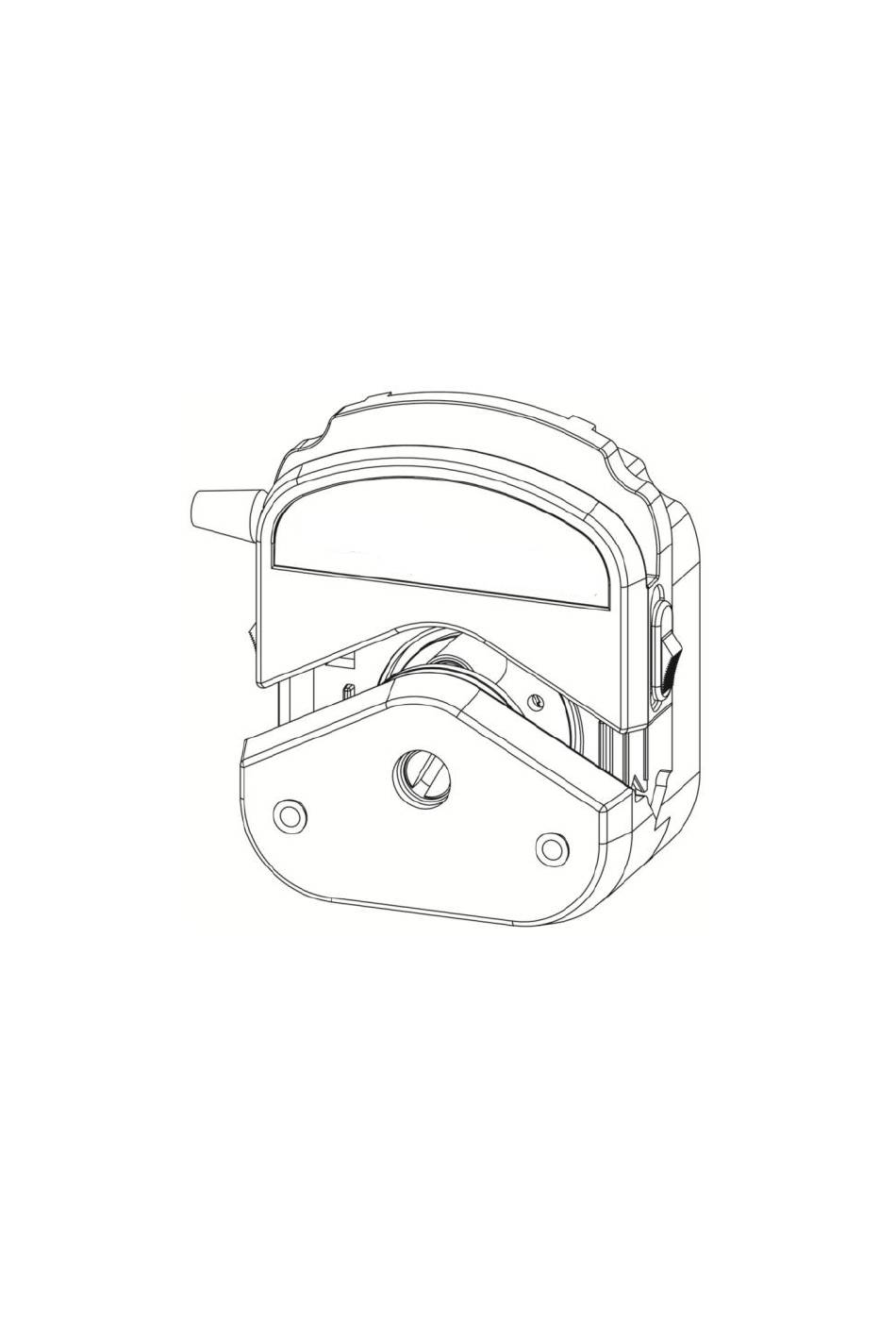

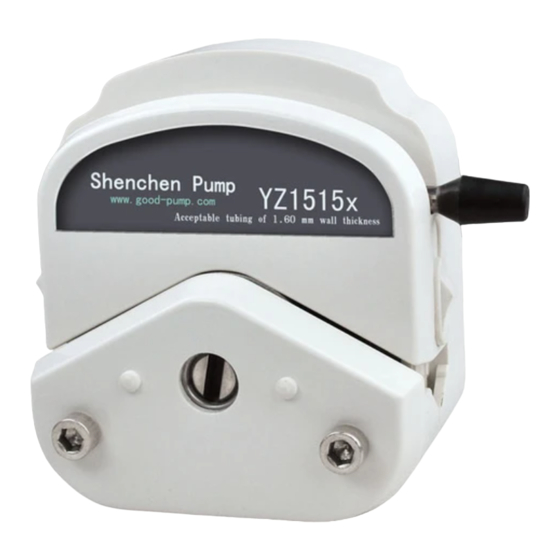

- Page 1 Pump Head Manual of YZ Series...
- Page 2 Important Information： Please read the operation manual before using the product. Warning: Tubing may have crack due to wear, the liquid may flow out from tube, and hurt human body or damage the pump head. So we need to check and change tube regularly.
- Page 3 Catalog 1. Production Introduction............-1- 2. YZ Series Pump head Installation..........-1- 3. YZ Series Pump Head Tubing Installation......-3- 4. YZ Series Pump Head Dimension..........-6- 5. YZ Series Pump Head Technical Specification.....-6- 6. Maintenance................-8- 7. Warranty and After Sales Servive..........-8-...
- Page 4 Another material is PSF (polysulfone material), white color, delicate appearance, good rigidity, high precision, suitable for laboratory or support analytical instruments. 2. YZ Series Pump Head Installation 2.1 Single Pump Head Installation Take two screws insert into mounting holes of the pump head separately.
- Page 5 Pump YZ Series Note: Try to use same strength to fasten two screws, and can not be too tight. 2.2 Multiple Pump Head Installation Usually, the pump head have been installed on pump drive. Below is instruction of pump head installation if you receive the pump head and drive separately or need to change pump head.
- Page 6 Pump YZ Series Picture 2 2.3 Tubing Installation Pull the lever 180 counterclockwise, and open the upper block. ° Lift the cartridges of two sides separately, and put the tubing between...
- Page 7 Pump YZ Series rollers and upper block. . Pull the lever 180 clockwise, and press the upper block to the correct ° position. The cartridge hold the tubing stably, to prevent tubing move during working. 2.4 Tubing Installation Note ...
- Page 8 Pump YZ Series The tube should be straight in the inlet and outlet area of the pump head, should not be forward or backward. Wrong Wrong Correct When need to use the tube in bend state, haven’t leave enough space, then it will make the tube working position deviation, and tube will be scratched during working.
- Page 9 Shenchen Pump YZ Series Note : If must use the installation as in above wrong pictures, please contact with us to make a suitable solution. 3. YZ Series Pump Head Dimension( Unit:mm) 4. YZ Series Pump Head Specification...
- Page 10 Pump YZ Series Flow Rate Chart...
- Page 11 Pump YZ Series 5. Maintenance When pump is not working, please loose the cartridges which press the tubing to avoid changing the shape of tubing because of longtime extrusion. Keep the rollers of pump head clean and dry, otherwise it can quicken the tubing wear, reduce the useful life of tubing and lead the rollers to damage in earlier.
