- Page 1 Shenchen Peristaltic Pump Manual of Lab M Series...
- Page 2 Important Information: Please read the instruction before operating the product. Warning: Tubing may have crack due to wear. It results in the overflow of fluid from tubing. In that time human body and instruments may be hurted. Must check usually and change tubing in time. ...
-
Page 3: Table Of Contents

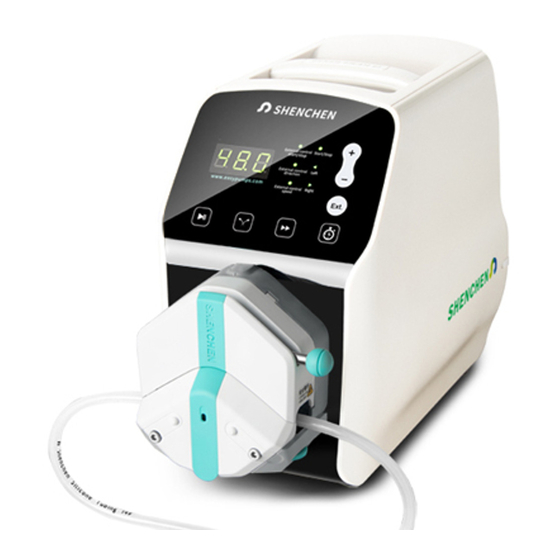

Catalog LabM Series Product Instrucion：..........- 1 - LabM Series Product Appearance..........- 1 - LabM Operating Panel ..............- 2 - LabM Technical Specification............- 4 - LabM Main Function and Features..........- 4 - External Control Interface ............- 5 - Product Dimension Drawing............ - Page 4 Shenchen LabM Series LabM Series Product Introduction: Basic model peristaltic pump with the super silent performance have become the best choice for laboratory, also widely used for analytical instrument. The speed can be adjusted by membrane keypad also can be controlled by external control.
-
Page 5: Labm Operating Panel
Shenchen LabM Series A—— Drive B—— Pump head C——Power switch D——Power socket E——External control interface F——Fuse LabM Operating Manual Operating Instruction ： Start/stop button Control drive running and stopping. Pressing the key of start/stop one time, drive running state will change one time. When drive run, start/stop display - 2 -... - Page 6 Shenchen LabM Series indicator light; when drive stop working, start/stop display indicator black out. Keep pressing this button can set the RS485 ID. When you press this button over 5 seconds, the display digital will twinkling, then press increase or decrease to set the request address.
- Page 7 Shenchen LabM Series Internal control mode (the indicator of external control start/stop, cw/ccw and speed are all dark). 2) The only mode of external control start/stop (the display indicator of external control start/stop is light; the display indicators of external control cw/ccw and speed are dark).
-
Page 8: Labm Technical Specification
Shenchen LabM Series button, the pump will working 60 seconds with current speed ( default time is 60 s), and then stop working automatically. Pree the timer button over 5 seconds, the display digital will twinkle, pree increase/decrease button to set the timer time. -
Page 9: External Control Interface
Shenchen LabM Series External control interface External control interface diagram: ①Analog signal input port: when you use the external control, first choose the external control indicator light on. Then the external control is effective. 0-10V：0V ~10V voltage signal input port. 0-5V：0V~5V voltage signal input port. - Page 10 GD1： Ground wire, connect with RS485 transformer GND. B：485 communication signal port, connect with 485 transformer B-. A：485 communication signal port, connect with 485 transformer A+. Note: Lab M series pump can connect with foot pedal switch and dispensing controller, if you need, please contact us. Dimension：...
-
Page 11: Warranty And After Sales Service
Shenchen LabM Series Maintenance When pump is not working, please loose the cartridges of pressing the tubing for avoiding changing the shape of tubing because of longtime extrusion. Keep the rollers of pump head clean and dry, otherwise it can quicken the tubing wearing, reduce the useful life of tubing and lead the rollers to damage in earlier. - Page 12 MADE IN CHINA Baoding Shenchen Precision Pump Co., Ltd. Address:No.103,Building 2, Pivot Industrial Park, FuXing East Road, Baoding,China. Tel: 86- 0312- 6780680 6780681 Fax: 86-312- 6780636 Website: www.good-pump.com Email: info@good-pump.com...
