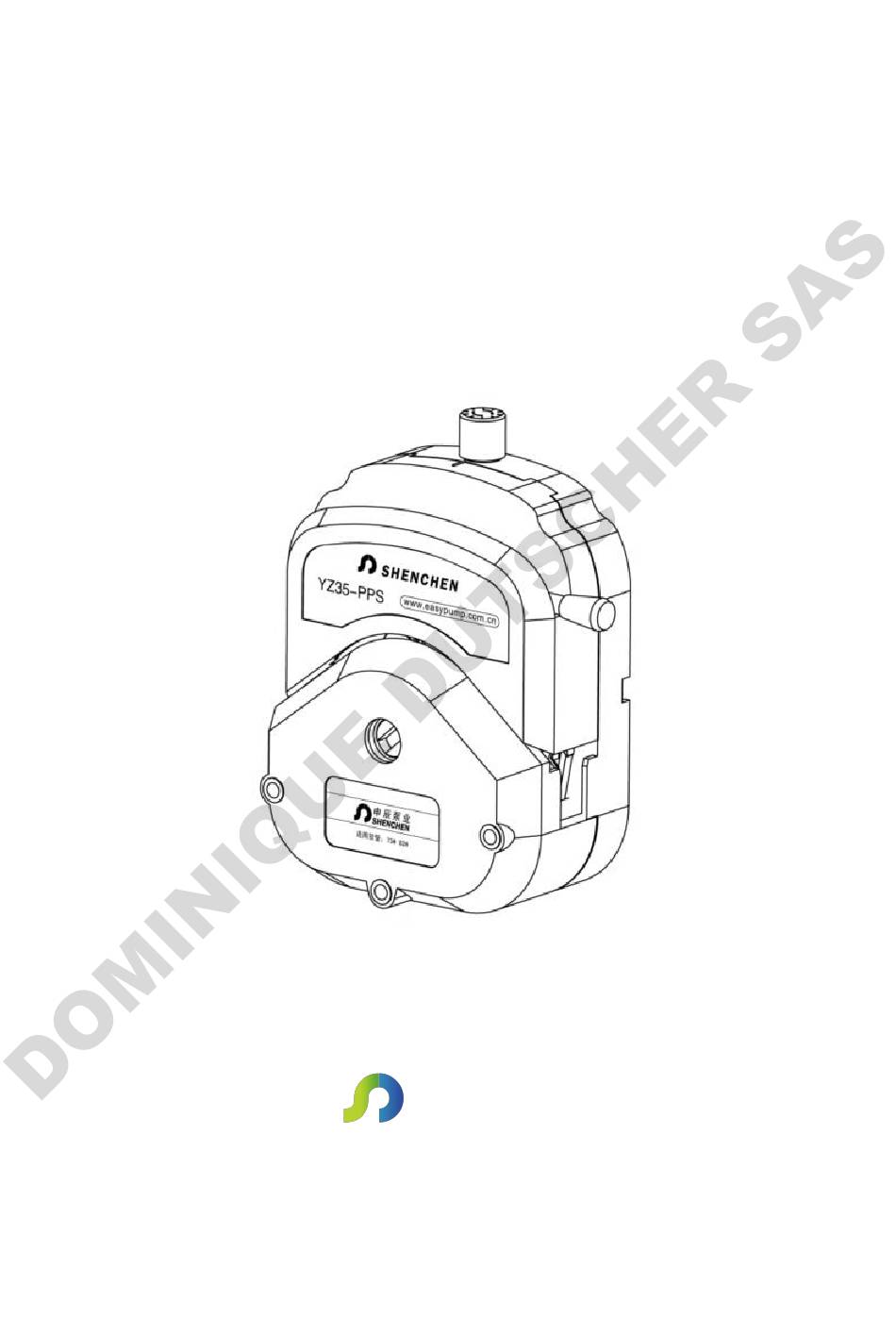

- Page 1 Shenchen Precision Pump Manual of YZ35 PPS Pump Head Baoding Shenchen Precision Pump Co.,Ltd...
- Page 2 Note: Please read the manual carefully before operating the product. Warning: Tubing may have crack due to wear. It results in the overflow of fluid from tubing. In that time human body and instruments may be damaged. So user must check usually and change tubing in time. When changing the tubing or the position of the tubing, please stop the ...
-
Page 3: Table Of Contents
Catalogue 1. Product Introduction ................- 1 - 2. Instructions .....................- 1 - 3. Installation Dimension ................- 7 - 4. Pump Head Specification ...............- 8 - 5. Troubleshooting ..................- 9 - 6. Maintenance ..................- 10 - 7. Warranty and After Service ..............- 11 -... -
Page 4: Product Introduction

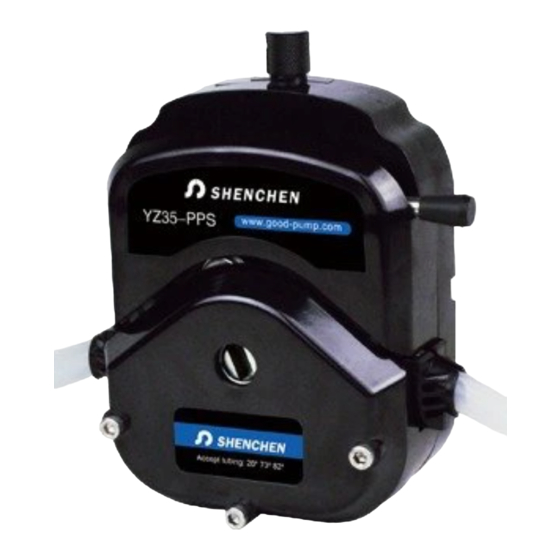

Shenchen Pump YZ35-PPS Pump Head Product Introduction Easy-load pump head is very convenient to install the tube clamp. Following customers’ requirements, it can connect with multichannel, suitable for OEM supporting application. YZ35 pump head is made by pps--Polyphenylene sulfide material which makes it more outstanding in rigidity and structural performance. It has... - Page 5 Shenchen Pump YZ35-PPS Pump Head 2.1 Pump Head Installation 2.1.1 Single Pump Head Installation First the coupling is installed on main shaft of the pump head, tighten the M5 screws after positioning according to the size shown in the figure, as shown, and then connect the pump head to the drive shaft through the coupling.
- Page 6 Shenchen Pump YZ35-PPS Pump Head Note: When install the pump, the entire pump head is disassembled into two separate pump heads as shown in the picture above. The two pump head roller assemblies should be staggered and installed in sequence. The wheel status is as shown in the figure below.
- Page 7 Shenchen Pump YZ35-PPS Pump Head 2.2 Tube Installation 2.2.1 Tube Clamp Function of the tube clamp: It can better fix the tube and reduce tube shaking, besides improve the transmission stability and transmission accuracy. Effectively reduce tube wear and extend tube life.
- Page 8 Shenchen Pump YZ35-PPS Pump Head Sleeve the tube into the tube clamp, the sharp point of the tube clamp should be align at the line. Pay attention to ensure that the split surfaces of the two tube clamps are parallel and parallel to the installation surface of the pump head.
- Page 9 Shenchen Pump YZ35-PPS Pump Head Pull the lever clockwise and slowly press down until the upper block is pressed down. At this time, the tube clamp is also installed in place. 2.3 YZ35 Pressure Adjustment YZ35 pump head can adjust pressure of the tube outlet by the rotary knob on pump head body, rotate with the arrow direction, pressure enlarge, otherwise reduce.
-
Page 10: Installation Dimension
Shenchen Pump YZ35-PPS Pump Head Installation Dimension - 7 -... -
Page 11: Pump Head Specification
Shenchen Pump YZ35-PPS Pump Head Pump Head Specification 4.1 Pump Head Specification (0.1-600rpm) Material&weight Pump Tube ID*WT Flow range Aluminum Head Type (mm) ml/min Alloy 6.4*3.3 0.69-4200 YZ35 9.6*3.3 12.3 1.23-7400 4.36 12.7*3.3 2-12000 4.2 Flow Rate Reference Table Note: The above-mentioned flow reference data is measured under the... -
Page 12: Troubleshooting
Shenchen Pump YZ35-PPS Pump Head Troubleshooting If the pump head is running but the flow is small or no flow, please check the following items: Check whether the pump is supplied with transmission liquid; Detect whether the suction side pipeline of the pump is blocked by ... -
Page 13: Maintenance
Shenchen Pump YZ35-PPS Pump Head Maintenance When pump does not work, please loose the cartridges of pressing the tubing for avoiding changing the shape of tubing because of longtime extrusion. Keep the rollers of pump head clean and dry, otherwise it can quicken ... -
Page 14: Warranty And After Service
Shenchen Pump YZ35-PPS Pump Head Warranty and After Service We support 1 years warranty for the pumps, subject to the exceptions below. Our company shall not be liable for any loss, damage, or expense directly or indirectly related to or arising out of the use of its products. This warranty... - Page 16 MADE IN CHINA Baoding Shenchen Precision Pump Co., Ltd. Address: No.103, Building 2, ZhiDian Industrial Park, FuXing East Road 999, Baoding, China. 071000 Tel: 0086-312-5958380 Fax: 0086-312- 6780636 Website: www.good-pump.com Email: info@good-pump.com...
