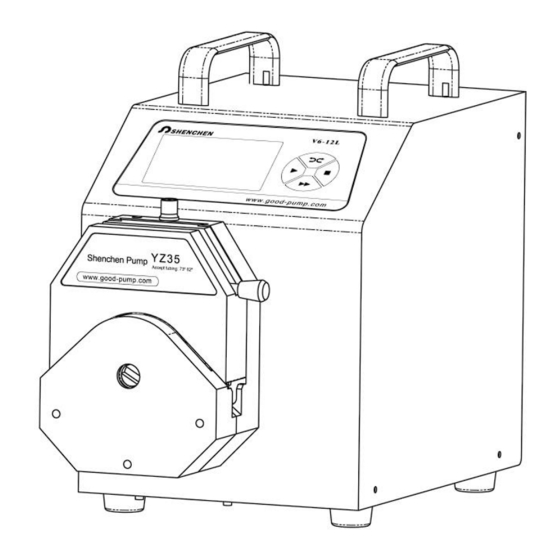

Shenchen Peristaltic Pump
Manual of V6-12L Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V6-12L Series and is the answer not in the manual?

Questions and answers

Related Manuals for Shenchen Precision Pump V6-12L Series

Summary of Contents for Shenchen Precision Pump V6-12L Series

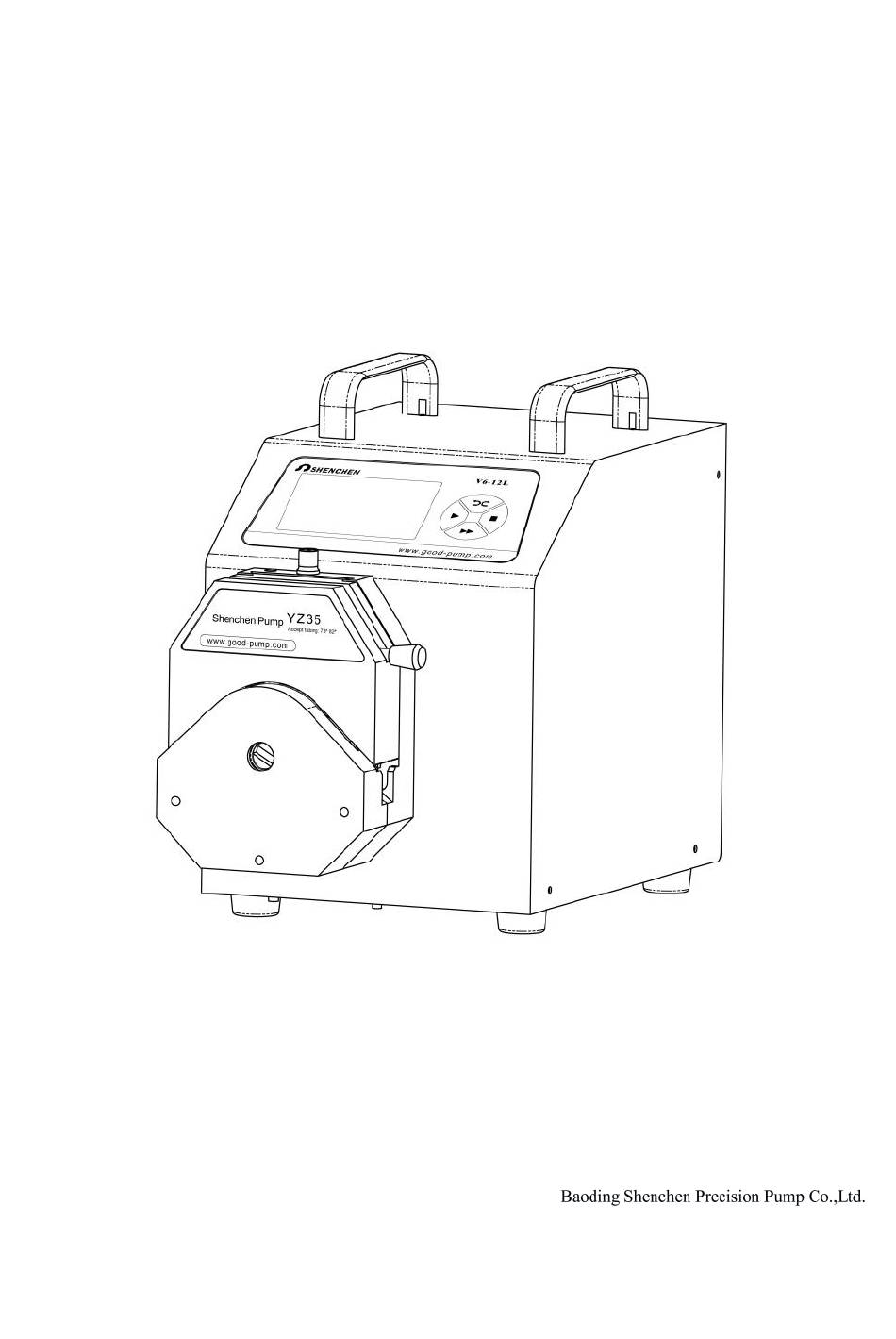

  • Page 1 Shenchen Peristaltic Pump Manual of V6-12L Series...
  • Page 2 Important Information ➢ Please read the manual carefully before operating the product. Warning ➢ Tubing may have cracks due to wear. It results in the overflow of fluid from tubing. In that time human body and instruments may be damaged. Therefor user must check frequently and change tubing in time.

  • Page 3: Table Of Contents

    V6-12L Series Operation Interface Instruction....- 3 - V6-12L Series Technical Specification ......- 16 - V6-12L Series Function and Features ......- 16 - External Control Interface Instruction： ......- 18 - Product Dimension (mm): ..........- 22 - Maintenance ..............

  • Page 4: V6-12L Series Product Introduction

    Shenchen Peristaltic Pump V6-12L Series V6-12L Series Product Introduction 4.3-inch color touch screen control; dynamic display of working status; flow data, set parameters and system settings displays in the same screen. Intelligent calibration and online micro adjusting function; three measurement modes;...

  • Page 5: V6-12Lseries Keyboard Instruction

    Shenchen Peristaltic Pump V6-12L Series V6-12L Series Keyboard Instruction Start CW/CCW Stop button Full Stop Button: Press stop button, stop working. Forbidden buttons can be used on the main interface. Full Speed Button: When in stopped state or transferring state, press this button, the pump will run with highest speed.

  • Page 6: V6-12L Series Operation Interface Structure

    Shenchen Peristaltic Pump V6-12L Series V6-12L Series Operation Interface Structure V6-12L Series Operation Interface Instruction 1. Boot Interface After powering on the system, you enter the welcome interface where you choose system language, Chinese/English. If you do not choose, it will enter the English main interface automatically after 2.5 seconds.
  • Page 7 Shenchen Peristaltic Pump V6-12L Series Speed/Flow Rate Display: In flow rate mode, the current set flow rate is displayed, the motor speed is displayed in the C frame. In rotating speed mode, the current set speed is displayed, the flow rate is displayed in the C frame.
  • Page 8 Shenchen Peristaltic Pump V6-12L Series 3. Numeric Keypad Input Interface Numeric keypad input interface as below: Input information Input data Display unit display display 800.00 Flow mL/min Backspace Unit Return Confirm Unit：Unit switch Input digital area Clr：Clear input Input Information Display: The information displayed is the current operation object.
  • Page 9 Shenchen Peristaltic Pump V6-12L Series 4. The Basic Configuration Interface: The basic configuration interface: Pump Head Reference Flow Rate YZ1515x Max:17.00 ml/sec Tubing Size Min:28.33 ul/sec Flow Rate Rotation Speed Cancel Click the pump head and tubing size to choose the pump head and tubing.
  • Page 10 Shenchen Peristaltic Pump V6-12L Series enter the back suction angle setting interface. Click angle button, enter suck-back angle then click ENT. This can set all suck-back angle when motor stop running, except dispensing is ON. 6. External Setting Interface: External Setting Interface as below: Analog signal selection Ext.Speed...
  • Page 11 Shenchen Peristaltic Pump V6-12L Series 7. Communication Setting Interface Communication Setting Interface as below: Set baud rate Slave No. 9600 RS232/RS485 ON/OFF RS485 Click Setting button in the main interface, then click Communication button to enter Communications Settings interface. This pump support MODBUS--RTU Mode. Please select baud rates and communication interface (RS485/RS232).
  • Page 12 Shenchen Peristaltic Pump V6-12L Series The top left corner displays the function, when fixed volume measurement is turned on, it displays fixed volume; when fixed time and volume turn on, it displays fixed time and volume. Others display transferring mode.
  • Page 13 Shenchen Peristaltic Pump V6-12L Series Fixed Time and Volume Mode: If the dispensing volume is bigger or smaller than the set volume, you can micro adjust the volume online, there is no need to stop the pump. Fixed Volume Measurement Mode: Do not support online micro adjust function.
  • Page 14 Shenchen Peristaltic Pump V6-12L Series 10. Fixed Volume Measurement Interface: Fixed Volume Measurement Interface as below: Fixed volume Volume 600.00 Fixed volume function turned on,flow rate is 800.00mL/min Finished need 0.75 minutes. After turning on this function, the peristaltic pump will measure the volume automatically, when the volume reach set up volume, the pump will stop working automatically.
  • Page 15 Shenchen Peristaltic Pump V6-12L Series within a set time. This function can be used for one-time liquid dispensing. Click the Start button again, start dispensing again. Click Dispensing button, set ON to turn on this function. Click Set Volume to input the volume, unit is mL.
  • Page 16 Shenchen Peristaltic Pump V6-12L Series Main Functions Operation Process 1. Flow Rate Transferring Function Boot into Click the Calibra- the main tion button, cali- interface brate the flow rate Click here input flow rate If fixed volume Turn off fixed...
  • Page 17 Shenchen Peristaltic Pump V6-12L Series 3. Dispensing Boot into Back to the main inter- the main face after finish interface calibration, click start key start working Click the setting button, choose pump head and Display the The pump display the current...
  • Page 18 Shenchen Peristaltic Pump V6-12L Series The current time 01:30:00 PM 01:30:00 PM StartTime OverTime Over time Start time 08:30:00 AM 05:30:00 PM Switch for the timer start Switch for the timer stop Timer start repeat date Timer stop repeat date...

  • Page 19: V6-12L Series Technical Specification

    TTL level Protection rating IP31 control V6-12L Series Function and Features ➢ 4.3 inch color touch screen control with dynamic display of working status, the flow volume and motor speed display in the same screen. ➢ Intelligent calibration function where you can calibrate the flow rate and dispensing volume to ensure the flow accuracy, suitable for high accuracy transferring liquid.
  • Page 20 Shenchen Peristaltic Pump V6-12L Series During this process, the volume can be changed. It is suitable for laboratory liquid dosing and chemical reaction process. ➢ Fixed time and volume function: After turning on this function, the peristaltic pump will transfer a fixed volume within a set time. It is suitable for liquid dispensing in laboratory and industrial production.

  • Page 21: External Control Interface Instruction

    Shenchen Peristaltic Pump V6-12L Series External Control Interface Instruction: External control interface as below: 0-10V ② 0-5V ⑥ ① 4-20mA I-/V- ③ CW/CCW ⑦ R/S 2 ④ R/S 1 ⑤ OUT1 OUT2 1. Analog signal input terminal: External control setting interface, choose the ’Analog Signal’...
  • Page 22 Shenchen Peristaltic Pump V6-12L Series Internal isolation 5VDC output 2. External control start/stop, cw/ccw signal input terminal: Active signal input. If you need change to 12VDC or 24VDC input, please open the controller housing, and change the jumper connection on the external control board as below: 外控板上...
  • Page 23 Shenchen Peristaltic Pump V6-12L Series 3. R/S 1 External control signal input terminal: Passive signal input. Pulse mode: R/S 1 short connect with GD1 and then disconnect, the pump start running. Short connect and disconnect again, the pump stop running.
  • Page 24 Shenchen Peristaltic Pump V6-12L Series RS232 Communication: Choose RS232 in the Communication setting interface, this terminal is active. GND: Communication ground terminal. TXD: Master sending, peristaltic pump receive signal terminal. RXD: Peristaltic pump sending, master receive signal terminal. RS232 Communication Interface Connection Diagram as below: RS485 Communication Interface: Choose RS485 in the communication setting interface, this terminal is active.

  • Page 25: Product Dimension (Mm)

    Shenchen Peristaltic Pump V6-12L Series Product Dimension (mm): - 22 -...

  • Page 26: Maintenance

    Shenchen Peristaltic Pump V6-12L Series Maintenance When the pump is not working, please loosen the cartridges pressing the tubing to avoid changing the shape of the tubing due to longtime extrusion. Keep the rollers of the pump head clean and dry, otherwise it can quicken wearing of the tubing, reduce the lifespan of the tubing and lead the rollers to be damaged earlier.

  • Page 27: Warranty And After Service

    Shenchen Peristaltic Pump V6-12L Series Warranty and After Service Products have 1 year warranty (not including tubing). In the warranty, if the products are damaged because of the users’ wrong operation or other human damages, our company is not responsible for the warranty. Beyond the warranty, we only charge the cost of maintenance.
  • Page 28 MADE IN CHINA Baoding Shenchen Precision Pump Co., Ltd. Address: No. 267 KeYuan Street, MinYing Technology Park, Baoding, China. Tel: 86-312-2055881, 2031189 Fax: 86-312-2055371 Website: www.good-pump.com Email: easypump2@gmail.com easypump3@gmail.com...
