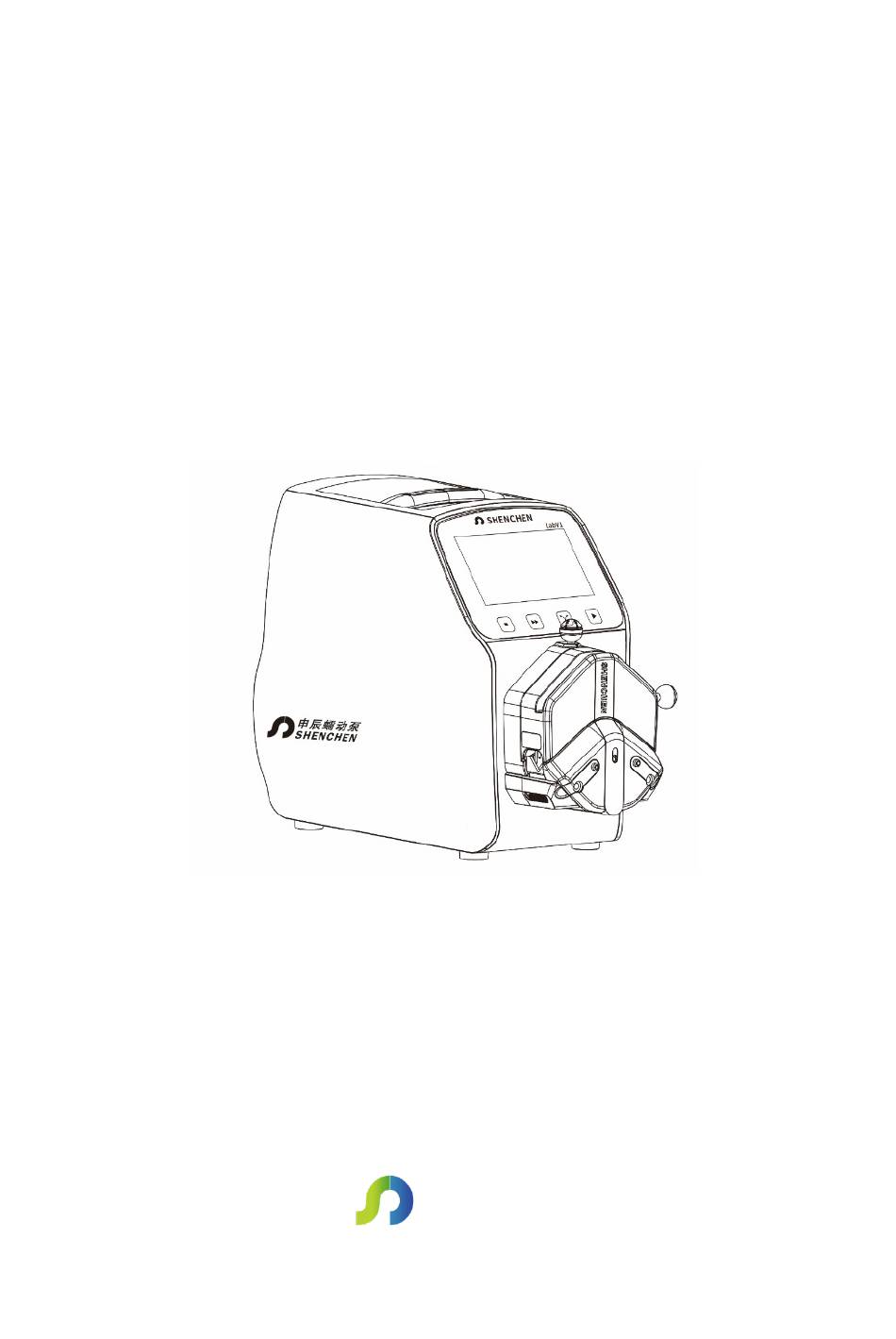

  • Page 1 Shenchen Precision Pump Manual of LabV Series Baoding Shenchen Precision Pump Co.,Ltd...
  • Page 2 Note: Please read the manual carefully before operating the product.  Warning:  Tubing may have cracks due to wear. It results in the overflow of fluid from tubing. In that time human body and instruments may be harmed. So, users must check frequently and change tubing in time.

  • Page 3: Table Of Contents

    Catalogue 1. Product Introduction ................... - 1 - 2. Product Appearance .................... - 1 - 3. Keyboard Instruction ..................- 2 - 4. Operation Interface Structure ................- 3 - 5. Main Functions Operation Process ..............- 15 - 6. External Control Interface Instruction .............. - 18 - 7.

  • Page 4: Product Introduction

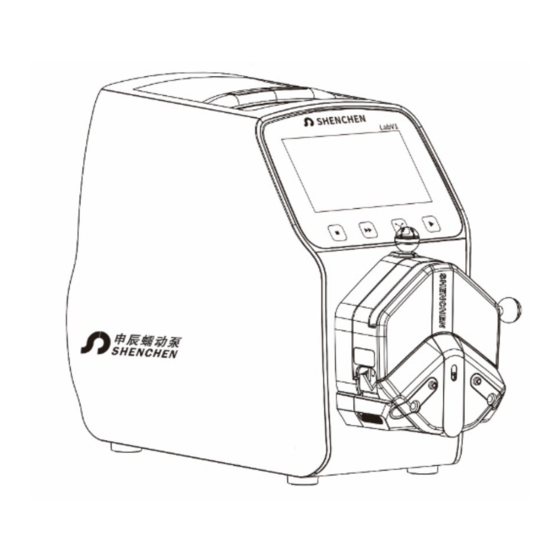

    Shenchen Pump LabV Series 1. Product Introduction LabV series product is the flow measurement type intelligent peristaltic pump, 4.3-inch color touch screen control; Animation shows working state; flow data, setting parameters and system settings display in the same screen. Intelligent calibration and online micro adjusting function;...

  • Page 5: Keyboard Instruction

    Shenchen Pump LabV Series 3. Keyboard Instruction Stop Button Full Button CW/CCW Button Start Button Stop Button: Press stop button, pumps stop working. Forbidden buttons in the  main interface can be used. Full Button: When stopping state or transferring state, press this button, the ...

  • Page 6: Operation Interface Structure

    Suction nication Control Speed LabV Series Operation Interface Instruction 4.1 Booting Interface After power on the system, enter the welcome interface, click anywhere, or wait for 2.5 seconds and it will enter the English main operation interface automatically. 4.2 Main Interface Main Interface Composition as below: 800.00...
  • Page 7 Shenchen Pump LabV Series Speed/Flow Rate Display: In the flow rate mode, it displays the current flow rate, the motor speed is displayed at the C frame. In the speed mode, displays the current set up speed, flow rate is displayed at the C frame. Click A to amend the flow rate or speed.
  • Page 8 Shenchen Pump LabV Series 4.3 Numeric Keypad Input Interface Numeric keypad input interface as below: Input information Input data Display unit display display 800.00 Flow mL/min Backspace Unit Return Confirm Unit: Unit switch Input digital area Clr: Clear input Input Information Display: The information displayed is the current operation object.
  • Page 9 Shenchen Pump LabV Series 4.4 The Basic Configuration Interface The basic configuration interface: Pump Head Reference Flow Rate EasyPumpI Max:1999.00 mL/min Tubing Size Min:333.29 uL/min Flow Rate Speed Cancel Click the pump head and tubing size to choose the pump head and tubing.
  • Page 10 Shenchen Pump LabV Series 4.5 Back Suction Angle Interface The back suction angle interface as below: ！ Please enter back Back suction angle suction angle range: 0-360° 360.00 degree Setting the back suction angle can prevent the liquid from dropping when the motor...
  • Page 11 Shenchen Pump LabV Series 4.6 External Setting Interface External Setting Interface as below: External Control Signal Ext.Start/Stop Pulse Foot Pedal Setting Ext.CW/CCW Click the System Settings button in the main interface, then click External control to enter External Settings interface.
  • Page 12 Shenchen Pump LabV Series 4.7 External Speed Control Setting Interface External Speed Control Setting Interface as below: Analog signal selection ON/OFF 0-5V Work speed limit 0V corresponds to the speed 0.0/ 600.00 5V corresponds to the speed 600.00 Click the System Settings button in the main interface, then click External Speed Control button to enter External Speed Control Settings interface.
  • Page 13 Shenchen Pump LabV Series 4.8 Communication Setting Interface Set baud rate Communication protocol ShenChen 9600 Communication interface ON/OFF RS485 Slave No. Click the System Settings button in the main interface, then click Communication button to enter Communication Settings interface. This pump support MODBUS-RTU Mode. Please select baud rates and communication interface (RS485/RS232).
  • Page 14 Shenchen Pump LabV Series 4.9 Flow Rate Calibration Interface Flow Rate Calibration Interface as below: Actual Vol. Volume adjust Fixed time 0.0000ml +0.0000ml and volume Volume Test 10.00 Run Time 1.00 1.00 Reset The top left corner displays the function, when fixed volume measurement is turned on, it displays fixed volume.
  • Page 15 Shenchen Pump LabV Series After finishing the tests, the actual volume area displays the average data, click the CAL button, and it will prompt that the calibration is successful. If you request higher accuracy, you can click Add and Dec button to micro-adjust the flow rate, to reach high accuracy transferring and dispensing.
  • Page 16 Shenchen Pump LabV Series 12-hour 2012-3-15 24-hour 8:45:35 AM Set Date Thursday Set Time Back In this interface, you can set the current date and time, and it will display at the top right of corner. Click the Set Date button, and out comes the Set year numeric keypad, the range of the year is 1970-2099.
  • Page 17 Shenchen Pump LabV Series After turning on this function, the peristaltic pump will measure the volume automatically. When the volume reach set up volume, the pump will stop working automatically. The flow rate can be changed during the pump working.

  • Page 18: Main Functions Operation Process

    Shenchen Pump LabV Series 4.13 Timer Start and Stop Interface 01:30:00 PM StartTime OverTime 08:30:00 AM 05:30:00 PM Once Once Custom Custom Start and stop time of the pump can be set in any time with this function. After the current time reaches to the setting time, it will automatically start and stop or stop the motor.
  • Page 19 Shenchen Pump LabV Series 5.2 Fixed Volume Measurement Function Click the Calibration Boot into the button, the default calibration time is 60s, main interface you can change it before calibration Click here input flow rate Click the System settings Back to the main...
  • Page 20 Shenchen Pump LabV Series 5.4 Timer Start And Stop Function Boot into the main interface On the top right corner of the main interface, means the timer start and stop function is on, The timer start and stop Click the System...

  • Page 21: External Control Interface Instruction

    Shenchen Pump LabV Series Monday Friday Tuesday Saturday Wednesday Sunday Thursday 6. External Control Interface Instruction External control interface as below: 0-10V ② 0-5V ⑥ ① 4-20mA I-/V- ③ CW/CCW ⑦ R/S 2 R/S 1 ④ OUT1 ⑤ OUT2 - 18...
  • Page 22 Shenchen Pump LabV Series ① Analog signal input terminal: Choose the External speed control signal and turn on the Ext. Speed in external control setting interface, control the motor speed from 0 rpm to maximum speed through analog signal. 0-10V: 0V to 10V voltage signal input terminal.
  • Page 23 Shenchen Pump LabV Series In Pulse mode: Short connect K2 then disconnect, the motor start running. Short connect and disconnect again, motor stop running. In Level mode: Short connect K2, the motor start running, disconnect K2, motor stop running. In Pulse mode: Short connect and then disconnect K1 once, the motor change working direction once.
  • Page 24 Shenchen Pump LabV Series If connect with relays, when the motor runs, K1 connect; when the motor stop running, the K1 disconnect. ⑥ RS232 Communication: Choose RS232 in the Communication setting interface, this terminal is active. GND: Communication ground terminal.
  • Page 25 Shenchen Pump LabV Series GD1: RS485 signal ground A+: Connect RS485 A+ terminal B-: Connect RS485 B- terminal Note: No matter if you choose RS232 or RS485, the communication protocol is standard MODBUS protocol. - 22...

  • Page 26: Technical Specification

    Shenchen Pump LabV Series 7. Technical Specification AC 220V±10% 50Hz/60Hz(standard) Flow rate resolution 0.01ml/min Power supply AC 110V±10% 50Hz/60Hz(optional) Touch screen and Operation mode mechanical External control Switch signal keypad Passive switching signal: 0-5V, 0-10V, Foot pedal switch External control speed...
  • Page 27 Shenchen Pump LabV Series LabV1-III, LabV3-III, <80W LabV6-III LabV1, LabV1-II, LabV3, LabV3-II, Stepper motor LabV6 Motor type LabV1-III, LabV3-III, Closed loop stepping motor LabV6-III Humidi Temperature 0-40℃ <80% - 24...

  • Page 28: Function And Features

    Shenchen Pump LabV Series 8. Function and Features 4.3-inch color touch screen control, animation shows working state, the flow  volume and motor speed are displayed in the same screen. Intelligent calibration function, it can calibrate the flow rate and dispensing ...

  • Page 29: Dimension Drawing

    Shenchen Pump LabV Series 9. Dimension Drawing Unit: (mm) 9.1 Single pump head YZ1515x pump head MC pump head - 26...
  • Page 30 Shenchen Pump LabV Series AMC pump head EasyPump pump head - 27...
  • Page 31 Shenchen Pump LabV Series 9.2 LabV series product LabV+YZ15 pump head Note: For each additional pump head in series, the longitudinal dimension shall be increased by 55mm. LabV + MC pump head Note: For each additional channel, the longitudinal dimension shall be increased by 10mm.
  • Page 32 Shenchen Pump LabV Series LabV + AMC pump head Note:For each additional channel, the longitudinal dimension shall be increased by 10mm. LabV+EasyPump pump head Note:For each additional pump head in series, the longitudinal dimension shall be increased by 61mm. - 29...

  • Page 33: Maintenance

    Shenchen Pump LabV Series 10. Maintenance Check the running status of machine before starting it, normal operation can  be put into use. Check for leakage, and correct fault which can be appeared.  Clean liquid overflowed from the pump in time.

  • Page 34: Warranty And After-Sales Service

    Shenchen Pump LabV Series 11. Warranty and After-sales Service We support 3 years warranty for the pumps, subject to the exceptions below. Our company shall not be liable for any loss, damage, or expense directly or indirectly related to or arising out of the use of its products. This warranty does not obligate our company to bear any costs of removal, installation, transportation, or other charges which may arise in connection with a warranty claim.
  • Page 35 MADE IN CHINA Baoding Shenchen Precision Pump Co., Ltd. Address: No.103, Building 2, ZhiDian Industrial Park, FuXing East Road 999, Baoding, China. 071000 Tel: 0086-312-5958380 Fax: 0086-312- 6780636 Website: www.good-pump.com Email: info@good-pump.com...
