Shenchen Precision Pump LabV6 Manual

Peristaltic pump
Hide thumbs Also See for LabV6:

Advertisement

Quick Links

Download this manual
Shenchen Peristaltic Pump
Manual of LabV Series

Advertisement

loading
Need help?

Need help?

Do you have a question about the LabV6 and is the answer not in the manual?

Questions and answers

Related Manuals for Shenchen Precision Pump LabV6

Summary of Contents for Shenchen Precision Pump LabV6

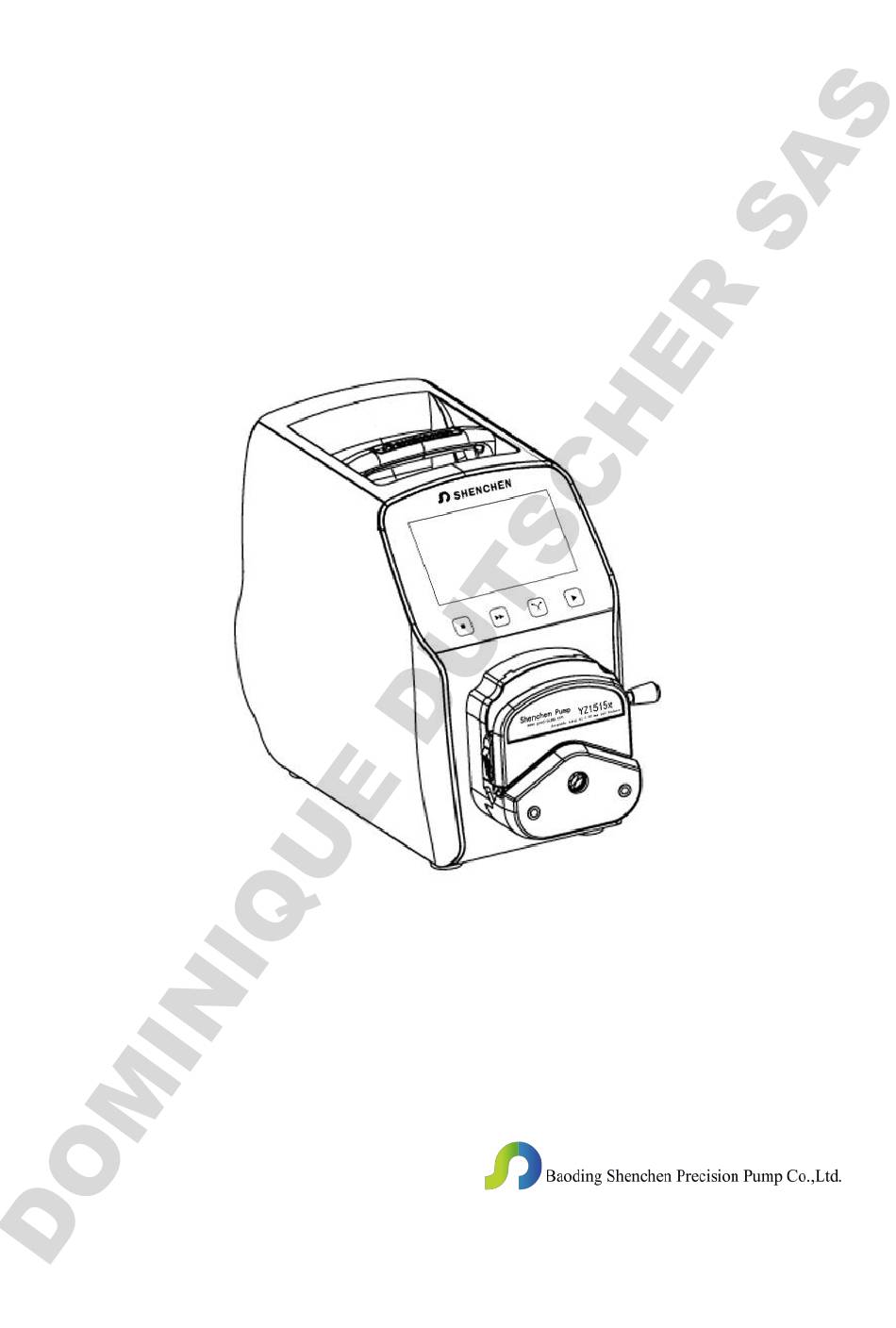

  • Page 1 Shenchen Peristaltic Pump Manual of LabV Series...
  • Page 2 Important Information  Please read the manual carefully before operating the product. Warning  Tubing may have crack due to wear. It results in the overflow of fluid from tubing. In that time human body and instruments may be damaged. So user must check usually and change tubing in time. ...

  • Page 3: Table Of Contents

    Catalogue LabV Series Product Introduction: ..........- 1 - LabV Series Product Appearance ..........- 1 - LabV Series Keyboard Instruction ..........- 2 - LabV Series Operation Interface Structure: ......... - 3 - Main Functions Operation Process ..........- 14 - LabV Series Technical Specification ..........

  • Page 4: Labv Series Product Introduction

    Shenchen Peristaltic Pump LabV Series LabV Series Product Introduction: 4.3 inch color touch screen control; dynamic display working status; flow data, setted parameters and system settings displays in the same screen. Intelligent calibration and online micro adjusting function; three measurement mode; fixed volume measurement, fixed time and volume, timer start and stop.

  • Page 5: Labv Series Keyboard Instruction

    Shenchen Peristaltic Pump LabV Series LabV Series Keyboard Instruction Stop Button Full Button CW/CCW Button Start Button Stop Button： Press stop button, stop working. Forbidden buttons can be used on the main interface. Full Button：When stop state or transferring state, press this button, the pump will running with highest speed.

  • Page 6: Labv Series Operation Interface Structure

    Shenchen Peristaltic Pump LabV Series filling liquid. CW/CCW Button: Press this button, the motor will change running direction. When the pump working with fixed volume measurement function or fixed time and volume function, this button does not work. Start Button: Press this button, the motor start running. When fixed volume measurement function or fixed time and volume function turn on, press this button, the pump will start work with the function.
  • Page 7 Shenchen Peristaltic Pump LabV Series 2012-3-15 8:45:05 AM 800.00 Fixed volume ml/min Dispensing Pump Head YZ1515x Tubing Size 275.86 rpm Setting Calibration Date&Time Volume 50.00 ml Time 2.00 s Current 0.00 ml Volume Dispensing Timing Speed/Flow Rate Display: Under the flow rate mode, display the current set up flow rate, the motor speed display at the C frame.
  • Page 8 Shenchen Peristaltic Pump LabV Series means the timer start and stop function is turn on. System Setting Button：Click this button, set up other parameters. Flow Calibration Button： Click this button enter the flow rate calibration interface. Date & Time Button：Click this button enter set up current date and time interface. Fixed Volume Measurement Button: Click this button, enter the fixed volume measurement interface.
  • Page 9 Shenchen Peristaltic Pump LabV Series Unit/Clr Button：When input flow rate or volume, this button is unit switch, you can choose different unit. When it is Clr, you can clear the current input data. Backspace Button: Delete an input digital. ESC Button: Cancel the current input, back to prev interface. ENT Button: Confirm the current input.
  • Page 10 Shenchen Peristaltic Pump LabV Series Click the Setting button in the main interface, then click Suck-Back button to enter the back suction angle setting interface. Click angle button, enter suck-back angle then click ENT. This can set all suck-back angle when motor stop running, except dispensing is ON.
  • Page 11 Shenchen Peristaltic Pump LabV Series describes external control interface . B. Various independent external control mode setting switch work only when the corresponding external control function is turned on. 7. External Speed Control Setting Interface: External Speed Control Setting Interface as below: Analog signal selection ON/OFF 0-5V...

  • Page 12: Communication Protocol

    Shenchen Peristaltic Pump LabV Series Set baud rate Communication protocol 9600 ShenChen RS232/RS485 ON/OFF RS485 Slave No. Click Setting button in the main interface, then click Communication button to enter Communications Settings interface. This pump support MODBUS--RTU Mode. Please select baud rates communication interface (RS485/RS232).
  • Page 13 Shenchen Peristaltic Pump LabV Series Actual Vol. Volume adjust FixedVolume 0.0000ml +0.0000ml Volume Test 10.00 Run Time 1.00 1.00 Reset The top left corner display the function, when fixed volume measurement turn on, display fixed volume; when fixed time and volume turn on, display fixed time and volume.
  • Page 14 Shenchen Peristaltic Pump LabV Series E、If request higher accuracy, you can click Add and Dec button to micro adjust the flow rate, to reach high accuracy transferring and dispensing. F、Click Cancel button, cancel the test data, the actual volume return to 0. Online Micro Adjust Volume Process: Flow Rate Transferring Mode: If the actual flow rate is big or small than the set up flow rate, you can micro adjust the flow rate online without affect the product...

  • Page 15: Fixed Volume

    Shenchen Peristaltic Pump LabV Series the top right corner of main interface. Click Set Date button, come out the Set year numeric keypad, the range of the year is 1970-2099. After set up the year, then set the month and date. Click Set Time button, come out the numeric keypad, set the hour, minute and second.
  • Page 16 Shenchen Peristaltic Pump LabV Series Dispensing Runing time Run times 1.00 0002 Volume Suspend time 5.00 1.00 Fixed time and volume function turned off,flow rate is 300.00mL/min speedis 103.44rpm After turn on this function, the pump will enter dispensing mode. Peristaltic pump transfer fixed volume in fixed time, transfer number of times is the run times, click suspend time button then input suspend time, prompt box display current diameter, after click the OK button, click the start button, the...

  • Page 17: Main Functions Operation Process

    Shenchen Peristaltic Pump LabV Series the repetition times, click interval time, input interval time, prompt box display current diameter, after click the enter button, click the start button, the pump begin dispensing according to the diameter. Main Functions Operation Process 1、Flow Rate Transferring Function Boot into Click the Calibra-...
  • Page 18 Shenchen Peristaltic Pump LabV Series Click the Calibration button,the default Boot into the calibration time is 60s, main interface you can change it before calibration Click here input flow rate Click the setting button, Back to the main choose pump head and interface after finish tubing size, choose the calibration, click...
  • Page 19 Shenchen Peristaltic Pump LabV Series Boot into the main On the top right corner of the interface main interface, means the timer start and stop function is turn The timer start and stop Click the setting on, when reach the set up time, function is turn on the pump will start or stop button, choose pump...

  • Page 20: Labv Series Technical Specification

    Thursday Timer stop setting process is same with the timer start. LabV Series Technical Specification LabV1: 0.1-150rpm AC220V±10%，50Hz/60Hz(standard) Power supply LabV3: 0.1-350rpm AC110V±10%，50Hz/60Hz(optional Speed range Power LabV6: 0.1-600rpm <50W consumption Speed resolution 0.01rpm Temperature 0-40℃ Flow rate Relative 0.01 <80%...

  • Page 21: Product Dimension (Mm)

    Shenchen Peristaltic Pump LabV Series dispensing volume, ensure the flow accuracy, suitable for high accuracy transferring liquid.  On-line micro adjusting function, it can adjust the flow rate during production progress, to avoid the filling errors because of tubing fatigue and elasticity decreased. ...

  • Page 22: External Control Interface Instruction

    Shenchen Peristaltic Pump LabV Series External Control Interface Instruction： External control interface as below: 0-10V ② 0-5V ⑥ ① 4-20mA I-/V- ③ CW/CCW ⑦ R/S 2 ④ R/S 1 ⑤ OUT1 OUT2 ①. Analog signal input terminal: External control setting interface, choose the’...
  • Page 23 Shenchen Peristaltic Pump LabV Series 0-10V: 0V to 10V voltage signal input terminal. 0-5V: 0V to 5V voltage signal input terminal. 4-20mA: 4mA to 20mA current signal input terminal. I_/V_: Analog signal negative terminal. Notice: Please do not connect 0-10V signal connect to 0-5V terminal or 4-20mA terminal.
  • Page 24 Shenchen Peristaltic Pump LabV Series Pulse mode: the pump working status change once when ）l. receive one pulse signa（ rising edge effectively Level mode: when high level, the pump running; when low level the pump stop running. Set up the external control mode in the setting interface, turn on the correspond external control function, external control signal is active.
  • Page 25 Shenchen Peristaltic Pump LabV Series If connect with relays, when the motor running, K1 connect; when the motor stop running, the K1 disconnect. ⑥、 RS232 Communication : Choose RS232 in the Communication setting interface, this terminal is active. GND: Communication ground terminal. TXD: Master sending, peristaltic pump receive signal terminal.
  • Page 26 Shenchen Peristaltic Pump LabV Series ⑦、 RS485 Communication Interface: Choose RS485 in the communication setting interface, this terminal is active. GD1: RS485 signal interface A+: Connect RS485 A+ terminal B-: Connect RS485 B- terminal Instruction: No matter choose RS232 or RS485, the communication protocol is standard MODBUS protocol.

  • Page 27: Maintenance

    Shenchen Peristaltic Pump LabV Series Maintenance When pump is not working, please loose the cartridges of pressing the tubing for avoiding changing the shape of tubing because of longtime extrusion. Keep the rollers of pump head clean and dry, otherwise it can quicken the tubing wearing, reduce the useful life of tubing and lead the rollers to damage in earlier.
  • Page 28 MADE IN CHINA Baoding Shenchen Precision Pump Co., Ltd. Address:No.103,Building 2, Pivot Industrial Park, FuXing East Road, Baoding,China. Tel: 86- 0312- 6780680 6780681 Fax: 86-312- 6780636 Website: www.good-pump.com Email: easypump2@gmail.com...
