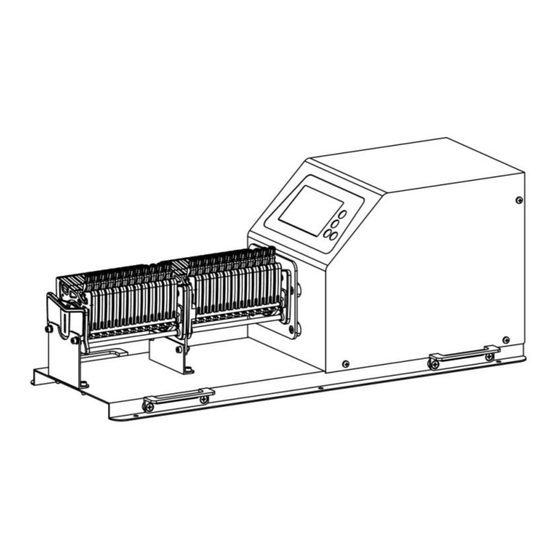

- Page 1 Shenchen Precision Pump Manual of V6-6L/AMC24 Baoding Shenchen Precision Pump Co., Ltd.
- Page 2 Note: Please read the manual carefully before operating the product. Warning: Tubing may have crack due to wear. It results in the overflow of fluid from tubing. In that time human body and instruments may be harmed. So users must check frequently and change tubing in time.
-
Page 3: Table Of Contents
Catalogue 1. Product Introduction ....................- 1 - 2. Product Appearance .....................- 1 - 3. Keyboard Instruction ................... - 2 - 4. Operation Interface Structure ................- 2 - 5. Main Functions Operation Process ..............- 13 - 6. External Control Interface Instruction ...............- 16 - 7. -
Page 4: Product Introduction
Shenchen Pump C-V-20200033/AMC24 1. Product Introduction The flow measurement type intelligent peristaltic pump adopts 4.3 inch color touch screen control, and shows working state by animation. Flow data, setting parameters and system settings are displayed in the same screen. With intelligent calibration and on-line micro adjusting function, three kinds of measurement modes: Fixed volume measurement;... -
Page 5: Keyboard Instruction
Shenchen Pump C-V-20200033/AMC24 3. Keyboard Instruction Stop Button: Press stop button, pump stops working. Forbidden buttons can be used on the main interface. Full Speed Button: When in stop state or transferring state, press this button, the pump will running with full speed. This button can be used for wash tube or fast filling liquid. - Page 6 Shenchen Pump C-V-20200033/AMC24 4.1 Boot Interface After power on the system, enter the welcome interface. Click anywhere or wait for 2.5 seconds it will enter the English main operation interface automatically. 4.2 Main Interface Main interface composition as below: A. Speed/Flow Rate Display: In the flow rate mode, display the current flow rate, the motor speed is displayed at the C frame.
- Page 7 Shenchen Pump C-V-20200033/AMC24 and volume state information, the model of pump head and tube size. E. Date and Time Display: Display the current data and time, you can change it in the date&time interface. When it display an alarm clock on the right side, it means the timer start and stop function is turn on.
- Page 8 Shenchen Pump C-V-20200033/AMC24 Input Data Display: Display the current input data, range is 0.01-9999. Unit Display: Display input units when input flow rate or volume. Input Digital Area: Numeric keypad. Unit/Clr Button: When input flow rate or volume, this button is unit switch, ...
- Page 9 Shenchen Pump C-V-20200033/AMC24 4.5 Back Suction Angle Interface The back suction angle interface as below: Click the System Settings button in the main interface, then click Back suction button to enter the back suction angle setting interface. Click angle button, pop up the numeric keyboard for inputting the suction angle, enter back suction angle then click OK.
- Page 10 Shenchen Pump C-V-20200033/AMC24 enter External Settings interface. There are two types of signals for external control motor start/stop and direction: Level mode and Pulse mode. Connection interface refer to the external control interface instruction. Various external control modes are independently set on switches, which will only work after the corresponding external control function is turned 4.7 External Control Speed Setting Interface External control speed as the follow picture shows...
- Page 11 Shenchen Pump C-V-20200033/AMC24 4.8 Communication Setting Interface The communication setting interface as the follow picture shows Click System Settings button in the main interface, then click Communication button to enter communication settings interface. This pump support MODBUS——RTU Mode. Please select baud rates and communication interface (RS485/RS232).
- Page 12 Shenchen Pump C-V-20200033/AMC24 on, display fixed volume; when fixed time and volume turn on, display fixed time and volume. Others display transferring mode. If fixed time and volume turn on, the target volume and running time is set up parameter, unable to amend. Other modes, the running time is 60s, you can click the run time button to amend the running time.
- Page 13 Shenchen Pump C-V-20200033/AMC24 calibration interface. Now only the Add, Dec and Esc button is usable, other buttons are forbidden. Click Add or Dec button to micro adjust the flow rate or volume. 4.10 Date & Time Interface Click the top right corner of time display, it will occur the Setting Date & Time Interface as below: Click the System Settings button from the main interface, click Date &Time button, enter date and time setting interface.
- Page 14 Shenchen Pump C-V-20200033/AMC24 4.11 Fixed Volume Measurement Interface Fixed Volume Measurement Interface as below: After turning on this function, the peristaltic pump will measure the volume automatically, when the volume reach set up volume, the pump will stop working automatically. The flow rate can be changed during the pump working. Click the Fixed Volume button, set ON to turn on this function.
- Page 15 Shenchen Pump C-V-20200033/AMC24 After turning on this function, the pump will enter dispensing mode. Peristaltic pump transfer fixed volume in fixed time, transfer number of times is the run times, click suspend time button then input suspend time, prompt box display current diameter, after click the OK button, click the start button, the pump begin dispensing according to the parameters.
-
Page 16: Main Functions Operation Process
Shenchen Pump C-V-20200033/AMC24 5. Main Functions Operation Process 5.1 Flow Rate Transferring Function Note: Flow rate calibration process please refer the flow rate calibration interface instruction. 5.2 Fixed Volume Measurement Function Note: Flow rate calibration process please refer the flow rate calibration interface instruction. - Page 17 Shenchen Pump C-V-20200033/AMC24 5.3 Dispensing Note: Flow rate calibration process please refer the flow rate calibration interface instruction. 5.4 Timer Start And Stop Function - 14 -...
- Page 18 Shenchen Pump C-V-20200033/AMC24 Under the flow rate transferring mode, set the pump start at 8:30 a.m. from Monday to Friday, stop at 5:30 p.m., the process as below: Click Start Time, set the start time is 8:30 a.m., turn the button to ON. Click Custom, come out the repeat date window, as below: - 15 -...
-
Page 19: External Control Interface Instruction
Shenchen Pump C-V-20200033/AMC24 6. External Control Interface Instruction ①. Analog signal input terminal: After choose the external control speed signal in external control setting interface, turn on the external control speed function. Control the motor speed from 0rpm to the highest speed by analog signal. 0-10V: 0V to 10V voltage signal input terminal. - Page 20 Shenchen Pump C-V-20200033/AMC24 GD2: External control signal common input terminal. NC: External control full speed signal input. CW/CCW: External direction signal input R/S 2: External start/stop signal input Set up the external control mode in the setting interface, turn on the correspond external control function, external control signal is active.
- Page 21 Shenchen Pump C-V-20200033/AMC24 changes working direction once. In level mode, short circuited K1, motor runs clockwise, disconnect K1, motor runs anticlockwise. In pulse mode, short circuited K3 then disconnect, the motor start running; Short circuited K3 and disconnect again, motor stops running. In level mode, short circuited K3, the motor starts running;...
- Page 22 Shenchen Pump C-V-20200033/AMC24 RXD: Peristaltic pump sends, master receives signal terminal. RS232 Communication Interface Connection Diagram as below: RS485 Communication Interface: Choose RS485 in the communication setting interface, this terminal is active. GD1: RS485 signal interface A+: Connect RS485 A+ terminal B-: Connect RS485 B- terminal Instruction: No matter choose RS232 or RS485, the communication protocol is standard MODBUS protocol.
-
Page 23: Technical Specification
Shenchen Pump C-V-20200033/AMC24 7. Technical Specification Power AC220V±10% 50Hz/60Hz (standard) Flow rate resolution 0.01ml/min supply AC110V±10% 50Hz/60Hz(optional) Touch External Operation mode Switch signal screen and control Relative Temperature 0-40℃ <80% humidity Communication RS232/RS4 Output Output motor working status interface Interface (open-collector-output) Protection Back suction angle... -
Page 24: Dimension Drawing
Shenchen Pump C-V-20200033/AMC24 the flow rate can be changed. It is suitable for liquid metering in the laboratory or quantitative feeding in the chemical reaction process, etc. Fixed time and volume function: After turning on this function, the peristaltic pump will transfer fixed volume within set time. It is suitable for liquid dispensing in laboratory and industrial production. -
Page 25: Maintenance
Shenchen Pump C-V-20200033/AMC24 10. Maintenance Check the running status of machine before starting it, normal operation can be put into use. Check for leakage, and correct fault which can be appeared. Clean liquid overflowed from the pump in time. ... -
Page 26: Warranty And After-Sales Service
Shenchen Pump C-V-20200033/AMC24 11. Warranty and After-sales Service We support 1 years warranty for the pumps, subject to the exceptions below. Our company shall not be liable for any loss, damage, or expense directly or indirectly related to or arising out of the use of its products. This warranty does not obligate our company to bear any costs of removal, installation, transportation, or other charges which may arise in connection with a warranty claim. - Page 28 MADE IN CHINA Baoding Shenchen Precision Pump Co., Ltd. Address: No.103, Building 2, ZhiDian Industrial Park, FuXing East Road 999, Baoding, China. 071000 Tel: 0086-312-5958380 Fax: 0086-312- 6780636 Website: www.good-pump.com Email: info@good-pump.com...
