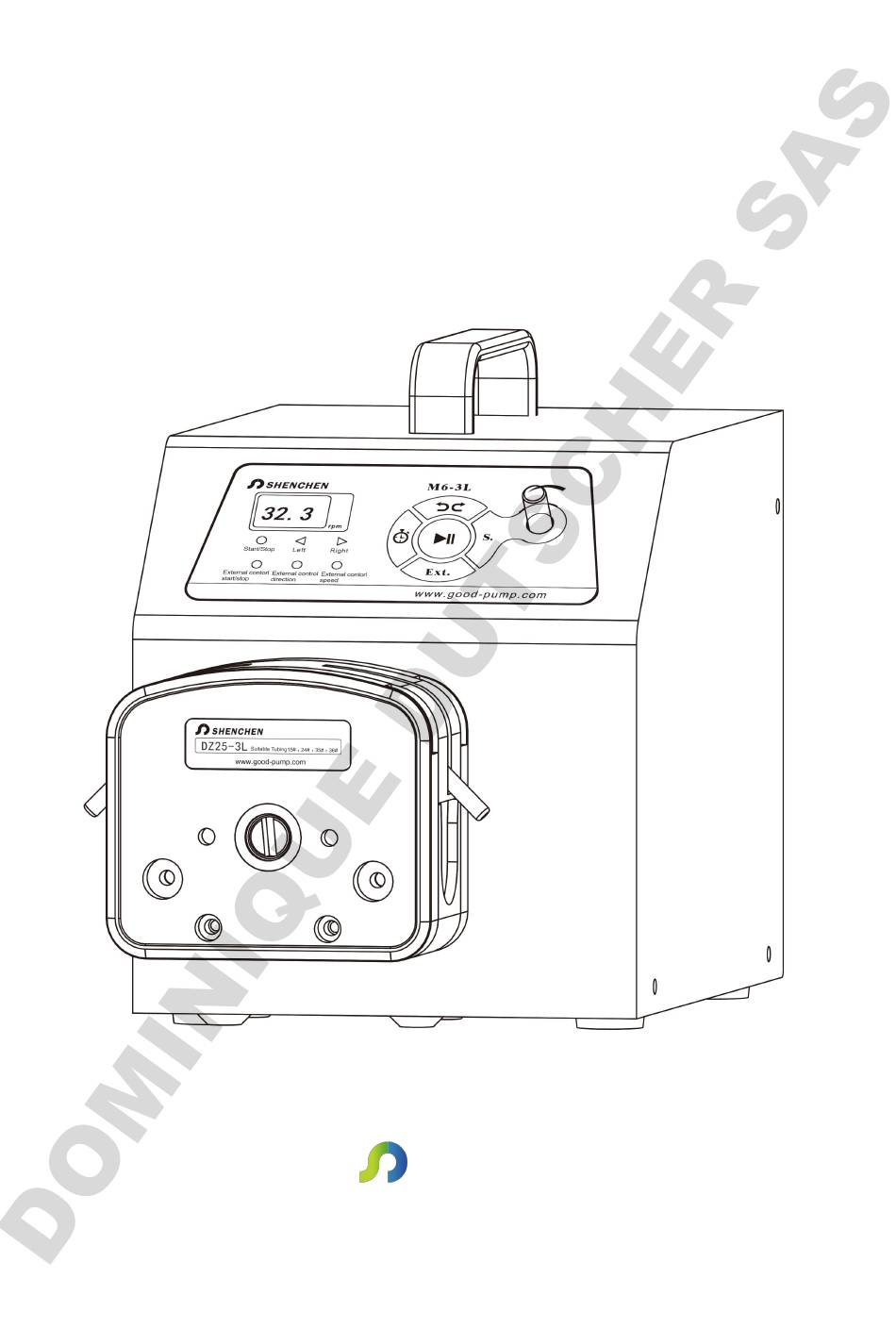

- Page 1 Shenchen Precision Pump Manual of M6 Series Baoding Shenchen Precision Pump Co., Ltd.
- Page 2 Note: Please read the instruction before operating the product. Warning: Tubing may have crack due to wear. It results in the overflow of fluid from tubing. In that time human body and instruments may be hurt. Must check usually and change tubing in time. Please connect directly the power line to the wall socket, and avoid using the ...
-
Page 3: Table Of Contents
1. M6 Series Product Instruction...........- 1 - 2. M6 Product Appearance............- 1 - 3. M6 Series Product Keypad Instruction........- 2 - 4. M6 Series External Control Instruction........- 4 - 5. M6 Series Technical Specifications.......... - 7 - 6. -

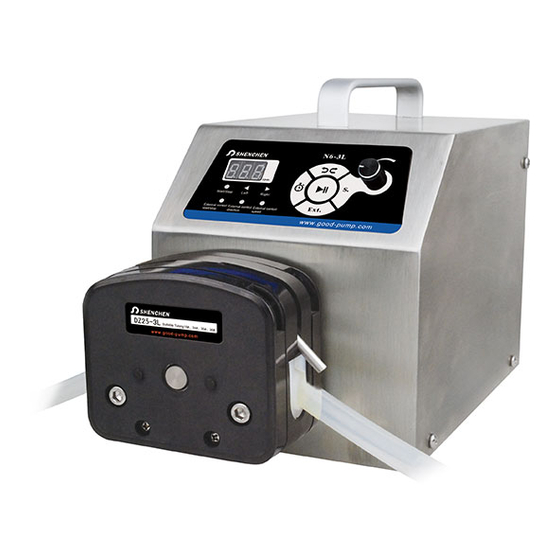

Page 4: M6 Series Product Instruction
M6 series M6 Series Product Instruction M6 series pump speed range is 0.1-600 rpm, flow rate range is 0.211~12000 ml/min. Adjust speed manually or automatically through analog interface. Memory function, storing the running parameters automatically. Timing test function, timing range: 0.5~999 seconds, convenient for calibration. -
Page 5: M6 Series Product Keypad Instruction
Shenchen Pump M6 series M6 Series Product Keypad Instruction Start /stop button Control the pump start and stop, press each time, the pump change working status once. When the pump is running, the start/stop indicator is light on. When the pump is stop, the start/stop indicator is light off. - Page 6 Shenchen Pump M6 series External control button The external control mode button is enable only when the pump stop working. It used for changing external control mode, total 7 different modes. In internal control mode, the external control mode indicators all light off.
-
Page 7: M6 Series External Control Instruction
0-5V always on, 0-10V flashes once every 1 second, 4-20mA flashes once every 0.3 seconds. ) M6 Series External Control Instruction The 15 pin connector on the back of pump is for external control, the wiring definition as below: Pin 1, 0-5V: Positive pole of external control motor speed signal, 0-5V terminal. - Page 8 Shenchen Pump M6 series running in anticlockwise direction in normal open status. ) ④ Pin 9, WK-SPEED-: Connect with external control speed signal negative pole. ⑤ Pin 10, 0-10V: Connect with external control speed signal positive pole, 0-10V terminal. ⑥ Pin 11, 4-20mA: Connect with external control motor speed signal positive pole, 4-20mA terminal.
- Page 9 ( Active signal: 5-24V). Pin 14, Active -GND: Isolated external control signal input ground wire. Isolated External Control Wiring Diagram Note: M6 series pump can connect with foot pedal or handling dispenser, please contact with us if needed. - 6 -...
-
Page 10: M6 Series Technical Specifications
Shenchen Pump M6 series M6 Series Technical Specifications Flow rate <±0.5% Display 3 digital LED accuracy Mechanical Control External control Passive switch signal keypad Speed range 0.1-600rpm Speed control Rotary encoded knob Speed 0.1rpm(0-100rpm) External speed 0-5V, 0-10V, 4-20mA resolution... -
Page 11: M6 Series Main Functions And Features
Shenchen Pump M6 series 6. M6 Series Main Functions and Features Digital knob control speed manually or automatically through external control interface. Timing function, easy for calibration or test the flow rate. Full speed for fast filling and emptying. - Page 12 Shenchen Pump M6 series M6-12L Dimension Drawing: - 9 -...
-
Page 13: Maintenance
Shenchen Pump M6 series Maintenance When the pump is not working, loosen the tubing, avoid the tubing get plastic deformation because of long time pressure. The pump drive and pump head do not resist strong corrosive liquids, please ... -
Page 14: Warranty And After Sales Service
Shenchen Pump M6 series Warranty and After Sales Service We support three years warranty (do not include tubing). During the warranty, the pump is damaged by wrong operation or man-made sabotage, our company do not responsible for warranty. If the product out of warranty, we only charge cost for the replacement parts and shipping cost. - Page 15 Shenchen Pump M6 series - 12 -...
- Page 16 MADE IN CHINA Baoding Shenchen Precision Pump Co., Ltd. Address: No.103, Building 2, Zhidian Industrial Park, FuXing East Road 999, Baoding, China. 071000 Tel: 0086-312-5958380 Fax: 0086-312- 6780636 Website: www.good-pump.com Email: info@good-pump.com...
