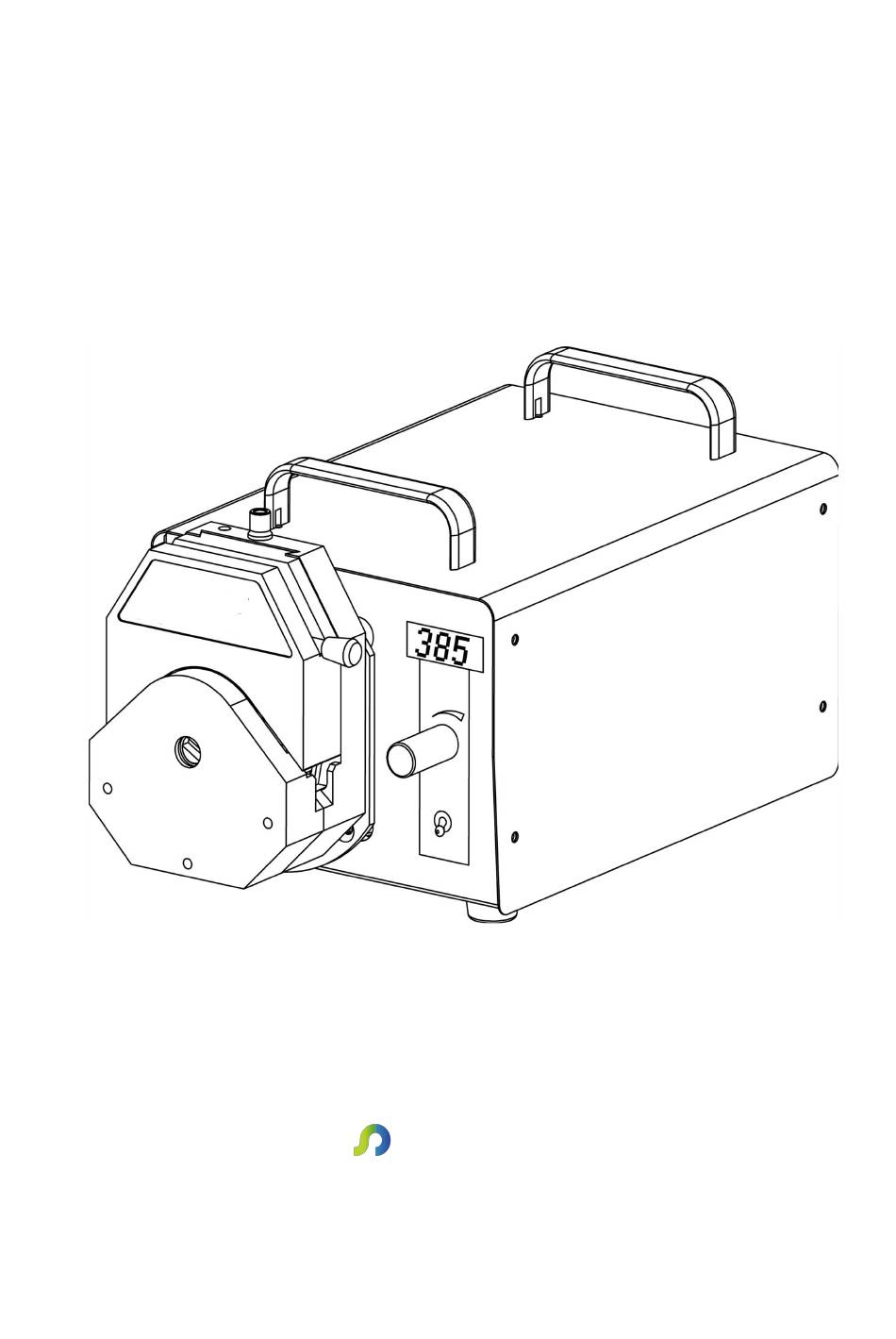

- Page 1 Peristaltic Pump Manual of ZG600x...
- Page 2 Important information： Please read the instructions carefully before operation。 warning： Please connect the power cord directly to a wall outlet and avoid using extension cords. If the power cord or plug is worn or otherwise damaged, unplug the power ...
-
Page 3: Table Of Contents
Catalogue 1. ZG600x Pump Introduction ................-1- 2. ZG600x Appearance...................-1- 3. ZG600x Application...................-2- 4. ZG600x Technidal Specification..............-2- 5. ZG600x Operation Instruction..............-3- 6. External Control Interface................-4- 7. Product Dimension..................-6- 8. Product Maintenance..................-6- 9. Warranty and After Sales Service..............-7-... -

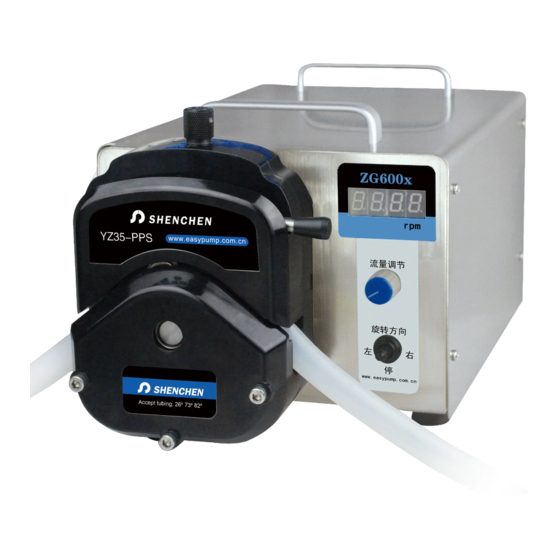

Page 4: Zg600X Appearance
ZG600x Series 1. Product Introduction ZG600X peristaltic pump easy to operate, high precision, corrosion resistance, remote control, practicality, commonly used in industrial fields, such as chemical plants in the production process to add accessories and so on. Can also be used to do a variety of laboratory liquid cell filtration, supporting the use of plate filters. -
Page 5: Zg600X Application
Pump ZG600x Series C. External control interface D. Built-in fuse E. Power socket 3. ZG600x Typical Application Form a complete set of filtration system or plate filter Molecular tangential flow ultrafiltration solution Large liquid cans Large flow transmission 4. ZG600x Technical Specification 60～660rpm，Reversible... - Page 6 17Kg control speed Optional Pump Head IP rate YZ35 IP31 5. ZG600x Pump Operation Digital Speed Display Speed Control Knob Left/Stop/Right Switch Digital LED Speed Display Display the pump working speed, it changed according with the control knob rotation.
- Page 7 Pump ZG600x Series Start/Stop, Working direction control When the left-stop-right switch is set to "left", the pump runs counterclockwise at the set speed; when it is set to "right", the pump runs clockwise at the set speed; Pump stopped running。...
- Page 8 Pump ZG600x Series switch port. The port is shorted to GND to switch to the external control mode, the external control start-stop signal and the external control analog speed control signal are effective; the port is disconnected from the GND for the internal control mode, the external control start-stop signal and the external control analog speed control signal invalid；...
-
Page 9: Product Dimension
Pump ZG600x Series 7. Product Dimension （mm） 8. Maintenance When pump is not working, please loose the cartridges of pressing the tubing for avoiding changing the shape of tubing because of longtime extrusion. Keep the rollers of pump head clean and dry, otherwise it can quicken the tubing wearing, reduce the useful life of tubing and lead the rollers to damage in earlier. - Page 10 Pump ZG600x Series 9. Warranty and After Service Products have 3 year warranty (not including tubing). During the warranty, the products are damaged because of users’ wrong operation or other human damages, our company do not responsibility for warranty. Beyond the warranty, we only charge the cost of maintenance.
- Page 11 Pump ZG600x Series This manual is prepared according to the products produced at the time of publication. As the products are continuously improved, the products produced after the publication may differ from the contents in the book, and are subject to change without further notice.
