Racelogic VBOX User Manual page 91

VBOX Configuration
Subject Vehicle
1. Connect VBOX Manager to the VBOX in the Subject Vehicle.
2. Enter the setup menu of VBOX Manager.
3. Select the 'VBOX' option.

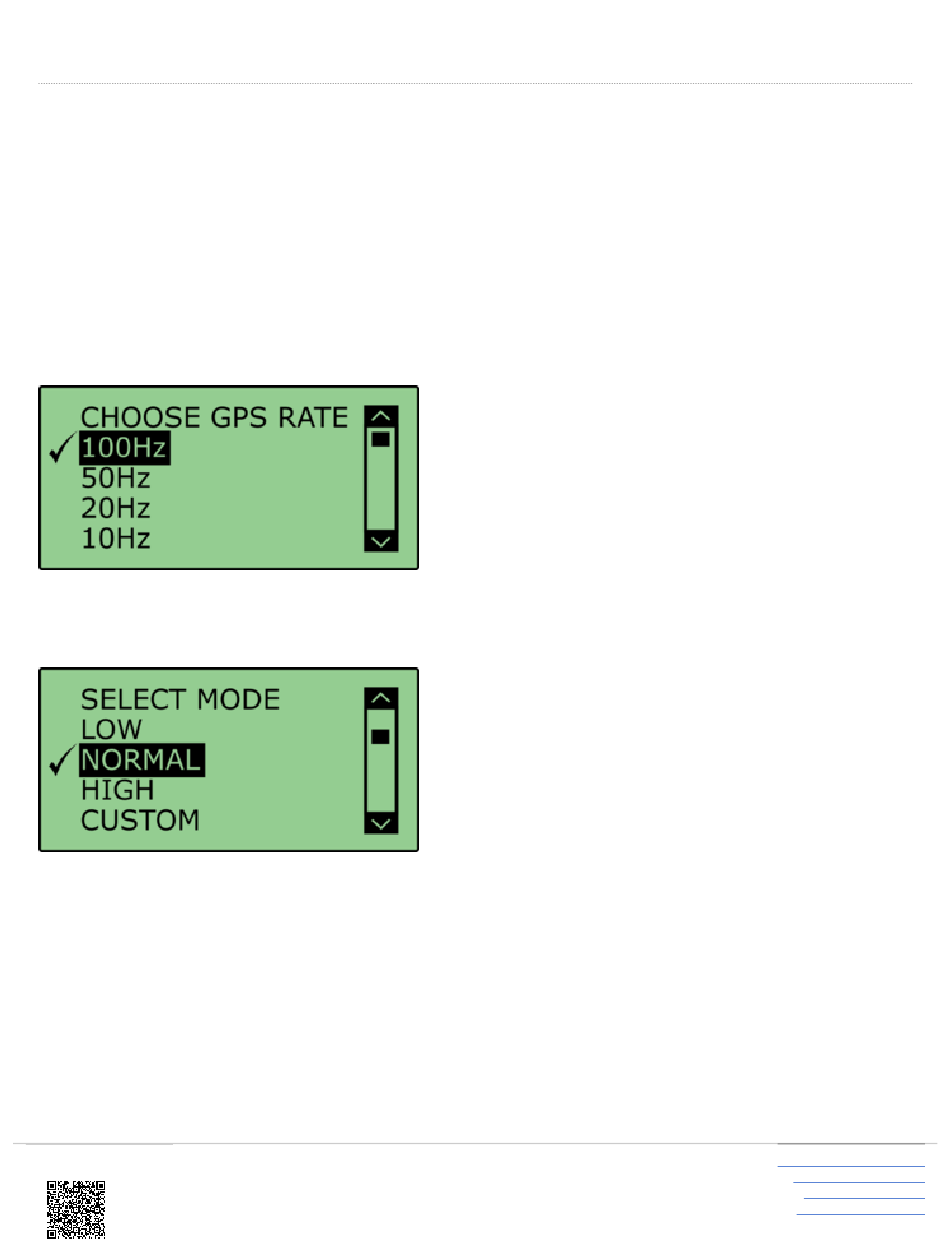

4. Select 'LOG RATE' and set the rate to '100 Hz', then select 'BACK' to return to the 'VBOX' setup menu.
5. Select 'DYNAMICS' and set the dynamic mode to 'NORMAL', this Dynamics mode is best for ADAS tests, return
to the 'VBOX' setup menu.
