VBOX Configuration
Target Vehicle 1
This guide assumes the use of a Base Station.
1. Connect VBOX Manager to the VBOX in Target Vehicle 1.
2. Enter the setup menu of VBOX Manager.
3. Select the 'VBOX' option.

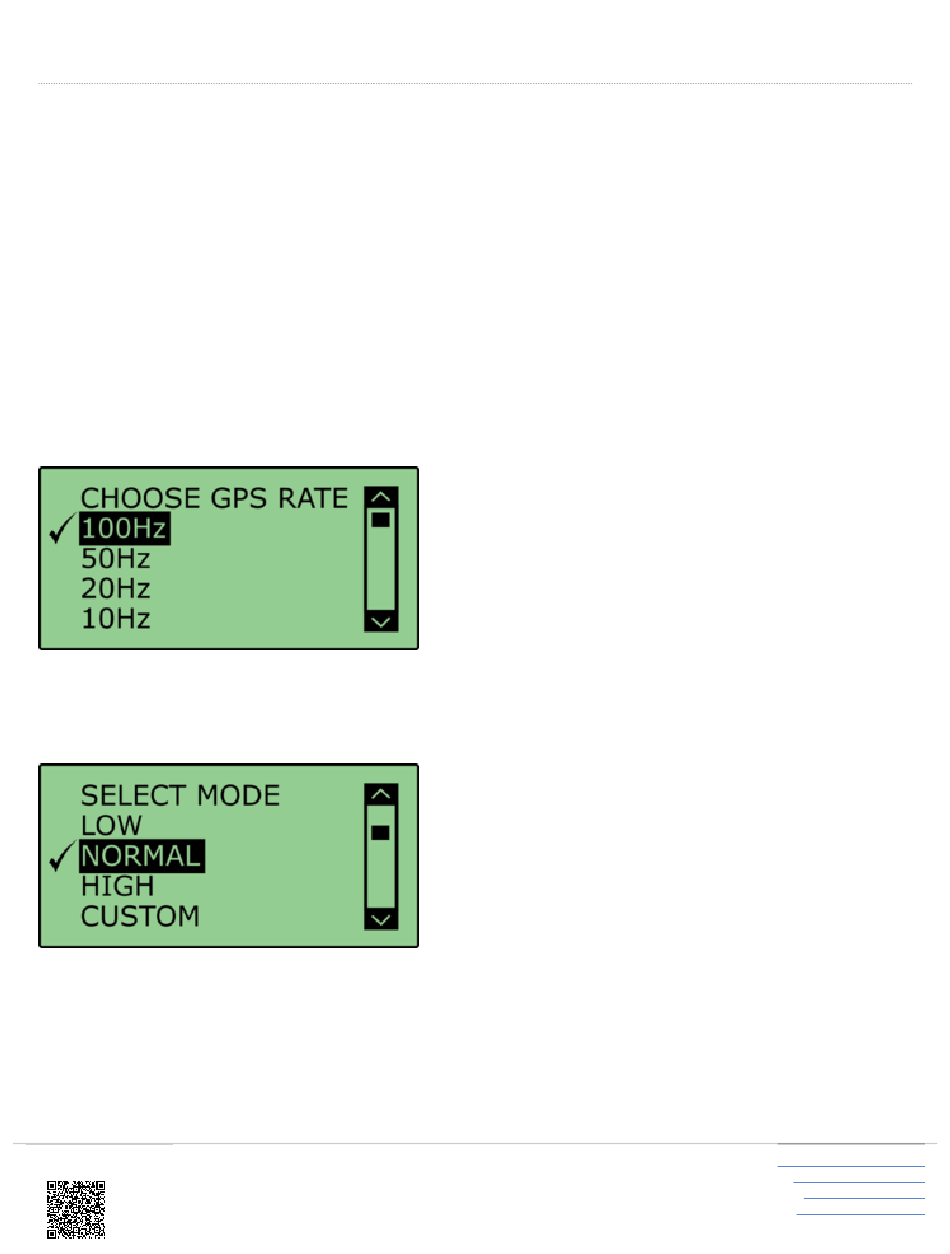

4. Select 'LOG RATE' and set the rate to '100 Hz', then select 'BACK' to return to the 'VBOX' setup menu.
5. Select 'DYNAMICS' and set the dynamic mode to 'NORMAL', this Dynamics mode is best for ADAS tests, return
to the 'VBOX' setup menu.
