ADAS CAN Input Configurations
The following diagrams all assume the use of a static base station. If a moving base station is used, different radio
setups will be needed. Please refer to the individual test setup pages for details on moving base radio connections.
The items greyed out are not essential but many customers may find them beneficial.

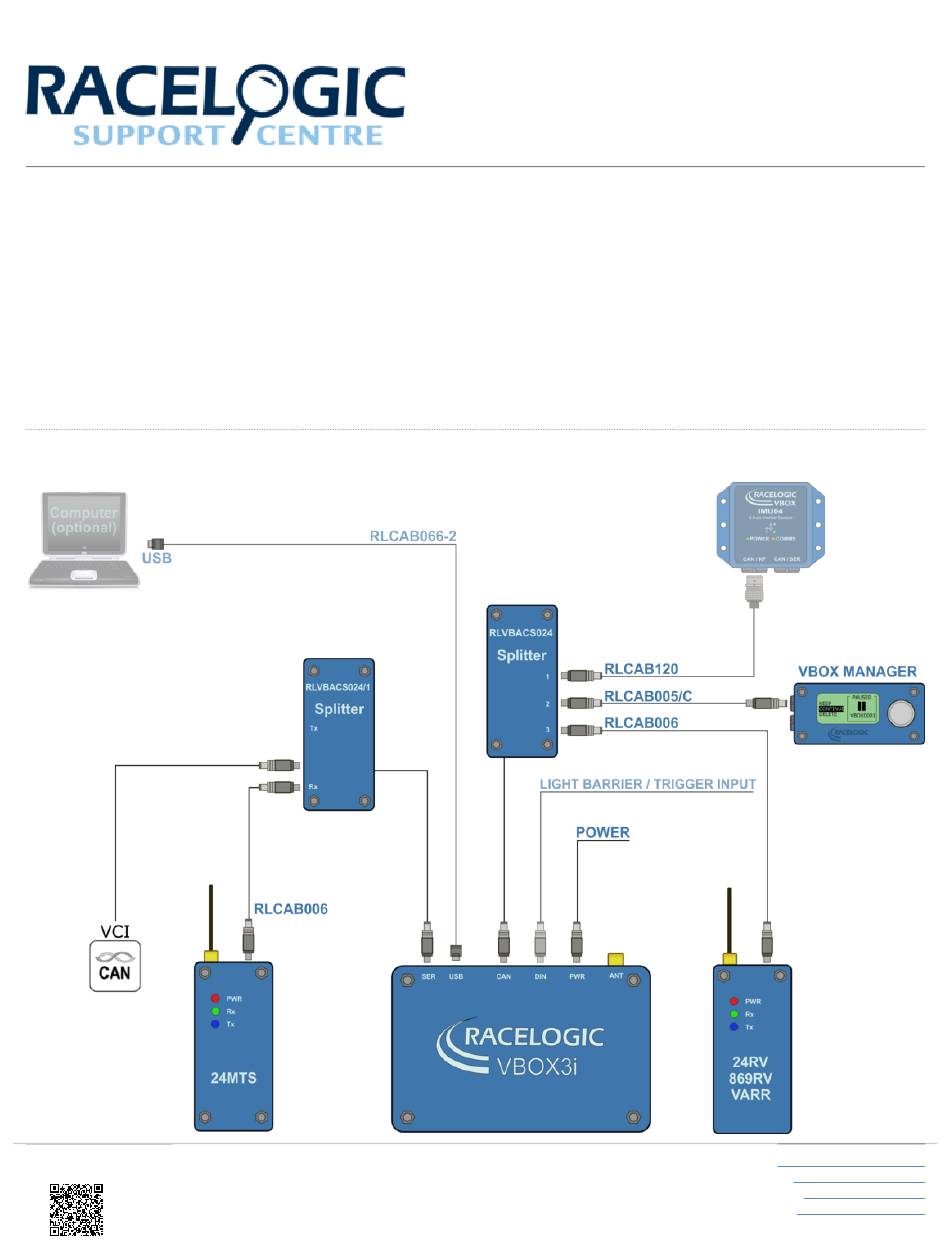

Single CAN bus connection
