13. Enter the 'LANE DEP' option within 'ADAS' configuration on VBOX Manager.

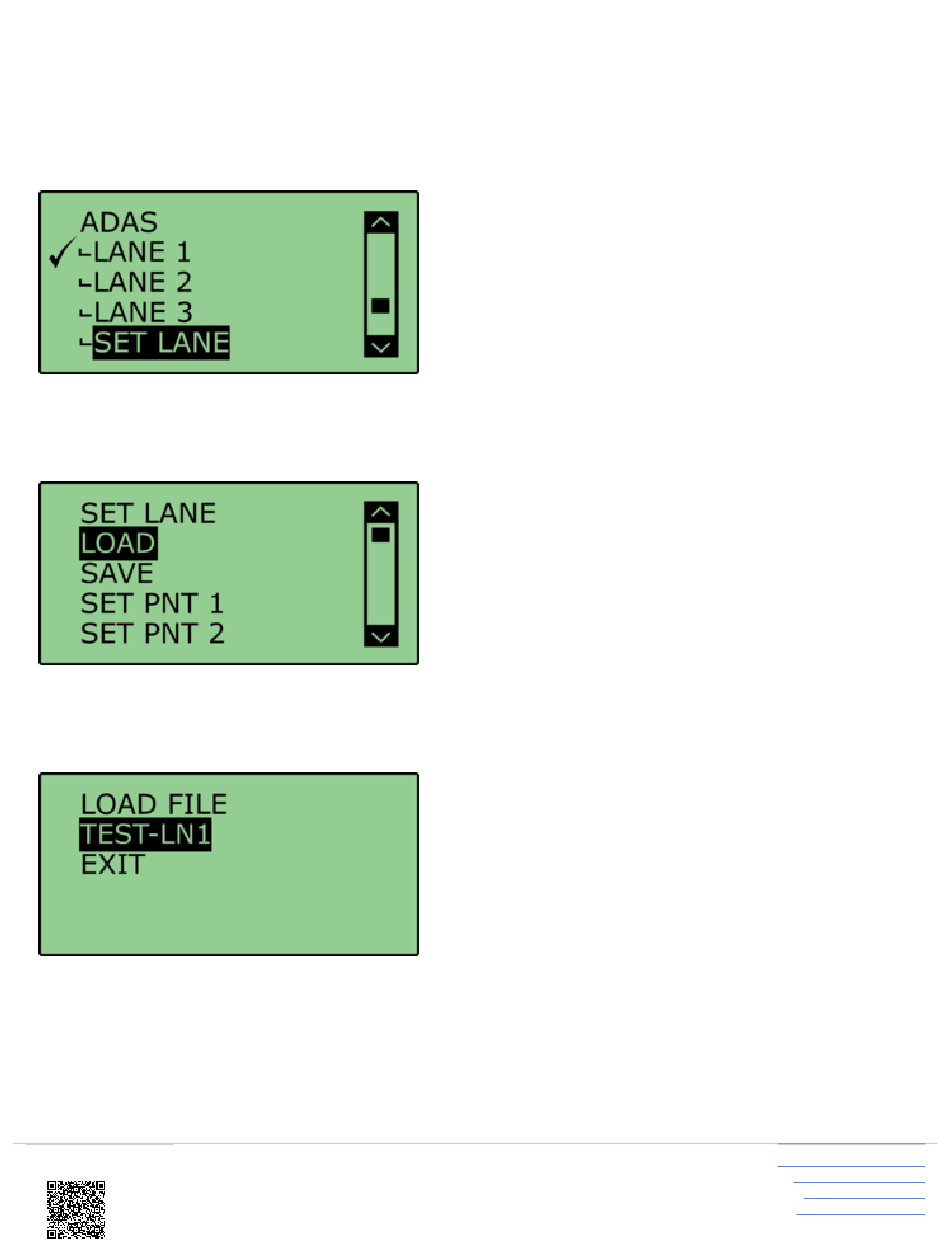

14. Select the appropriate lane number and select 'SET LANE'.
15. Select the 'LOAD' option.
16. The VBOX will browse the CF card for .vbc files, select the appropriate .vbc file for the reference lane in question.
The lane is now loaded into the VBOX and is ready to be used to generate live Lane Departure values.
