Racelogic VBOX User Manual page 163

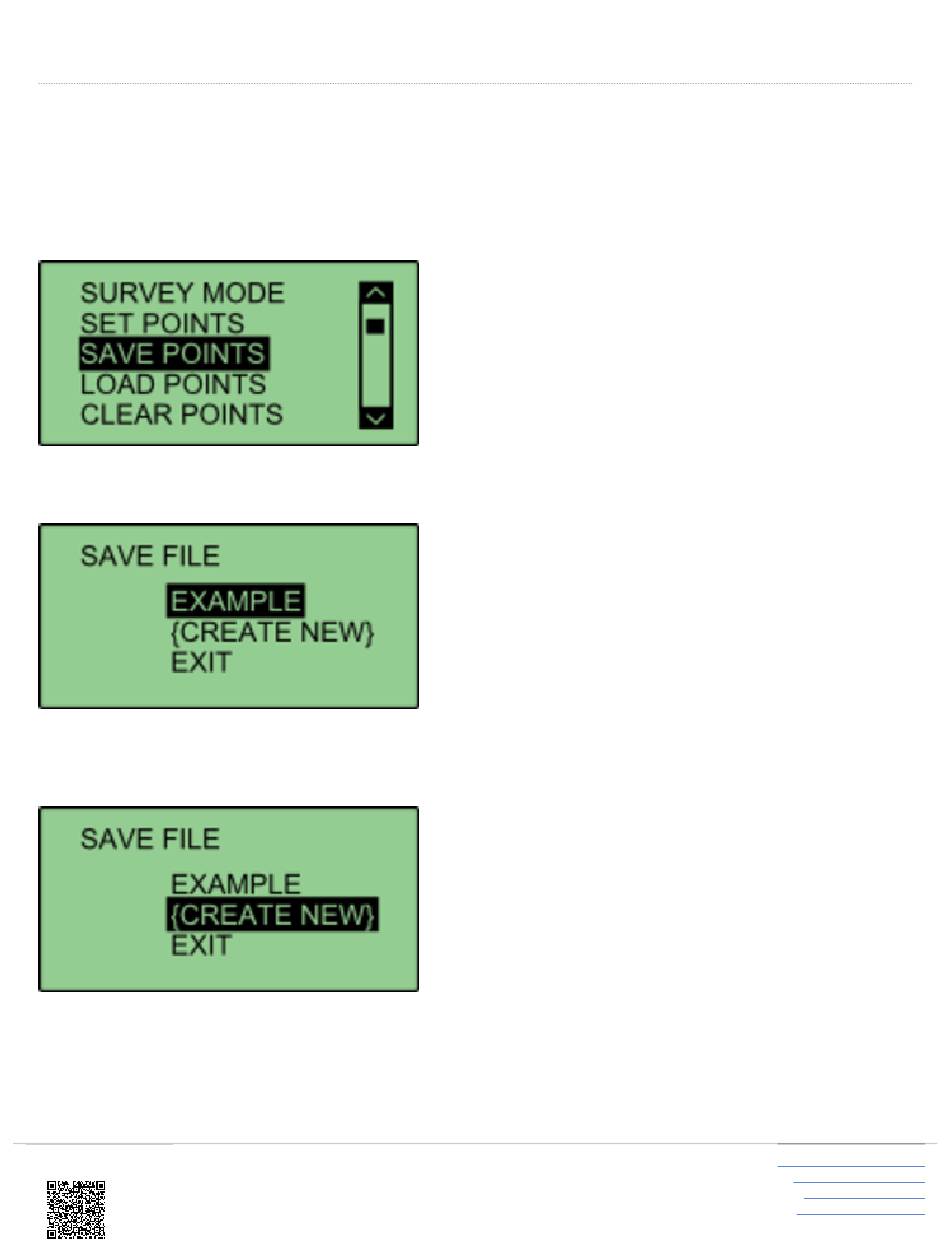

Saving Static Points
Once the static points have been surveyed, it is possible to save all surveyed static points.
1. Under the 'SURVEY MODE' menu, select 'SAVE POINTS'. This allows the user to either create a new save file, or
replace an existing file.
2. To replace a file, simply select the file name you wish to replace, in this case, the file called 'EXAMPLE'.
3. To create a new file, select '{CREATE NEW}'. This will bring up an alpha numeric scroll wheel where the user can
enter the desired file name.
4. Once saved, VBOX Manager will display a 'SAVE SUCCESSFUL' message.
