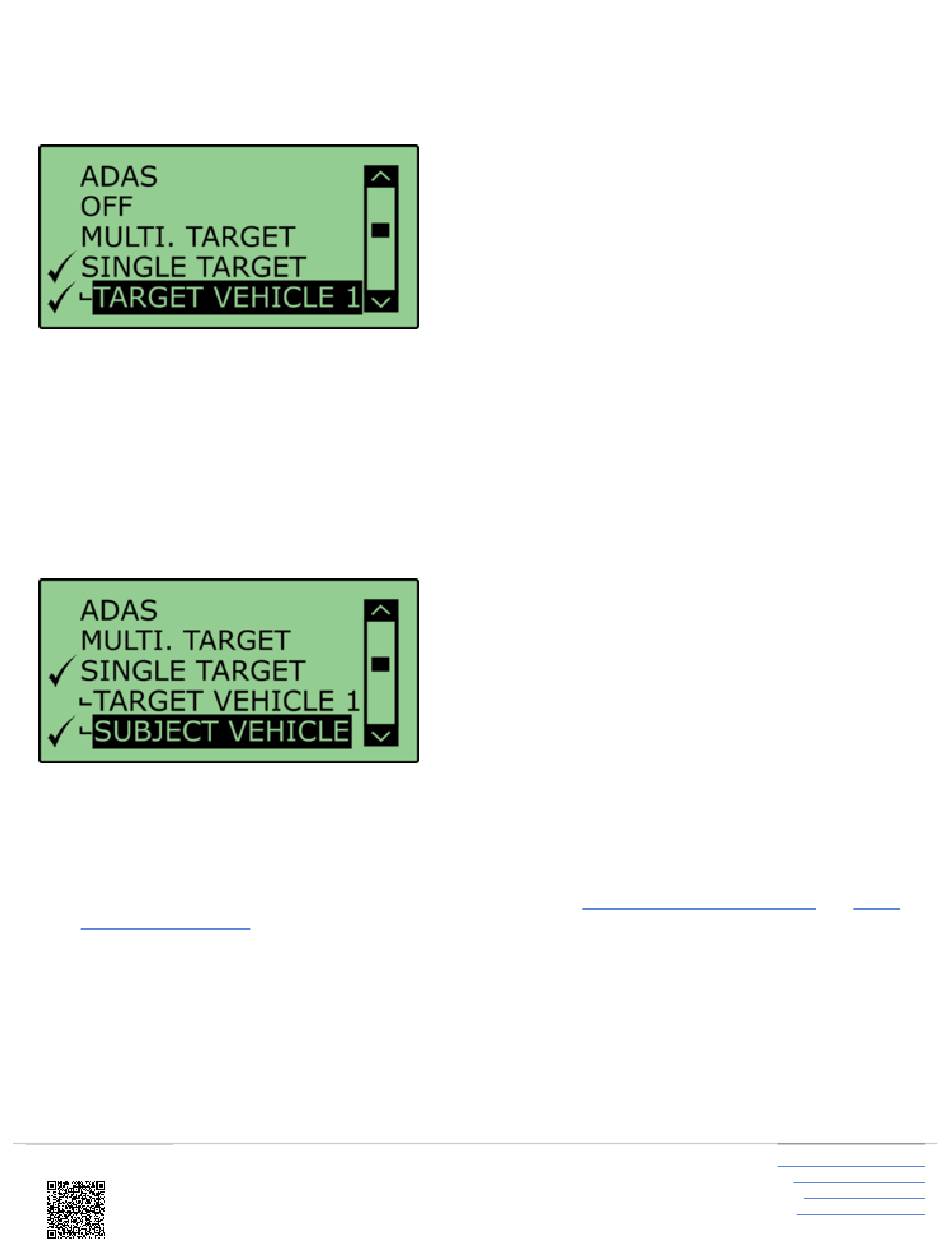

9. Select 'TARGET VEHICLE 1' and return to the 'ADAS' setup menu.
Subject Vehicle
1. Connect VBOX Manager to the VBOX in the Subject Vehicle.
2. Repeat steps 2 – 8 in section 'Target Vehicle' above.
3. Select 'SINGLE TARGET' mode and select 'SUBJECT VEHICLE', return to the 'ADAS' setup menu.
ADAS Radio Link
1. Ensure the 2.4 GHz telemetry modems are connected as shown in
vehicle configuration.
2. As 2.4 GHz transmissions are very direct, with a narrow beam width, care needs taking when mounting the
antenna.
Ensure they are:
◦ On the highest part of the vehicle roof
◦ Away from any nearby obstructions that could cause a potential blockage to the path of the signal
◦ Mounted vertically to ensure maximum transmission power in the horizontal plane
◦ Mounted at least 50 cm away from other radio antennas
