Complex Shape configuration
In software version 1.13.19.853 and later it is possible to
add complex shapes instead of straight lines for bay
sides. This allows for testing when there are no parking
bay lines and perhaps only vehicles.

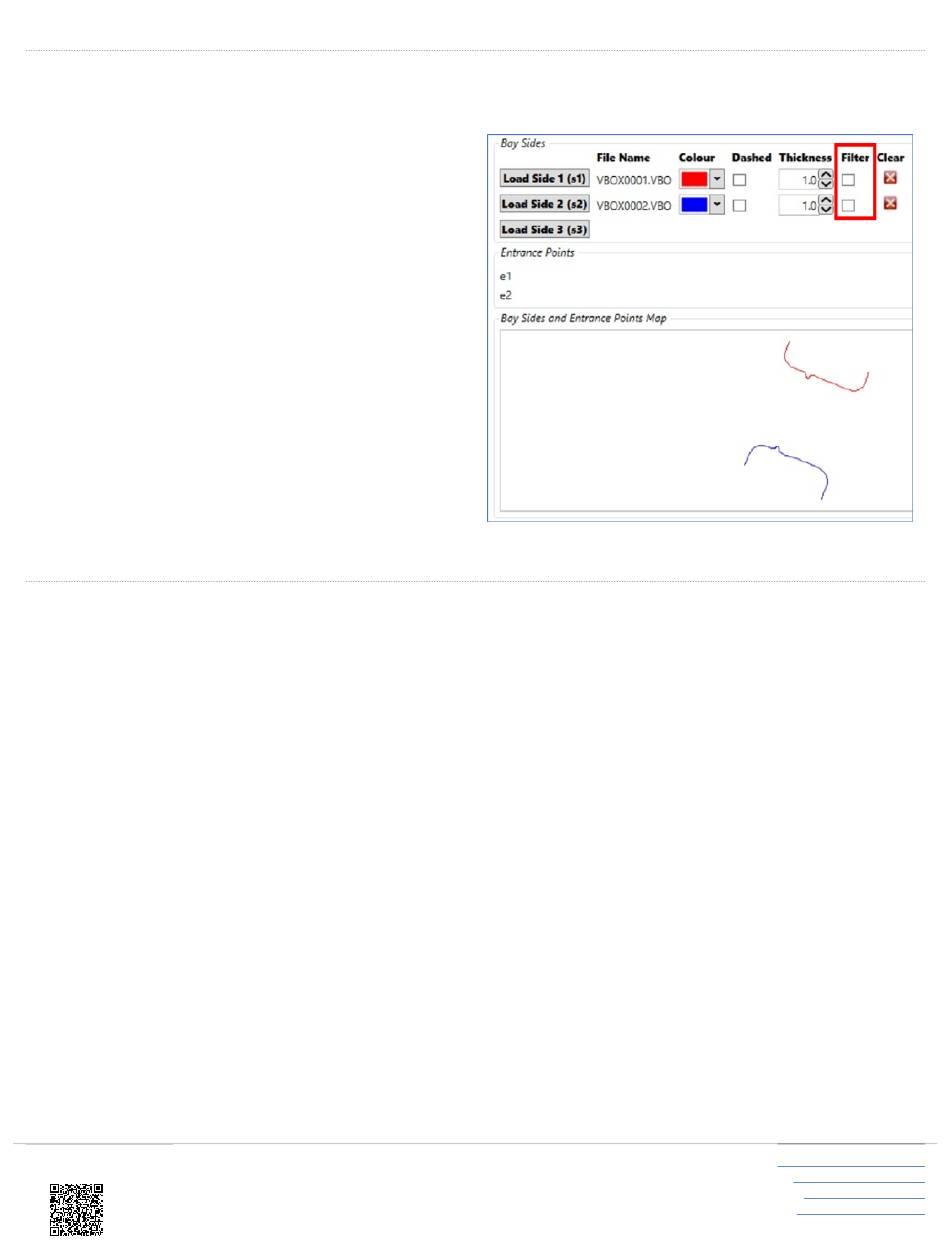

In the example, 2 vehicles sides were surveyed and are
located either side of the parking space of interest. It is
important to turn the filter off so that details such as the
wing mirrors can be included in the measurement
distance calculations.
Please note that as there are no longer Entrance points,
these channels will not be output in the processed files.
Vehicle measurement point configuration
The vehicle measurement points section allows the user to configure required vehicle measurement points.
There is no limit to the number of vehicle measurement points that can be set.
Points should be measured from the primary antenna as shown below.
