• Select the software option "Download preview into background", the software will then take a snap shot from each
camera and save it into the background of the Video VBOX software screen.
• Now, a ruler image can be created using the line style simple shape elements within VVB Setup.
• Alternatively, take a "print screen" image of your Video VBOX software screen to use in a third party image
manipulation software.
• Paste the captured "print screen" image into a suitable graphics package like Photoshop or Inkscape, ensuring that
pixel ratios are maintained.
• Then draw the new ruler image over the top of the ruler line in the captured video image.

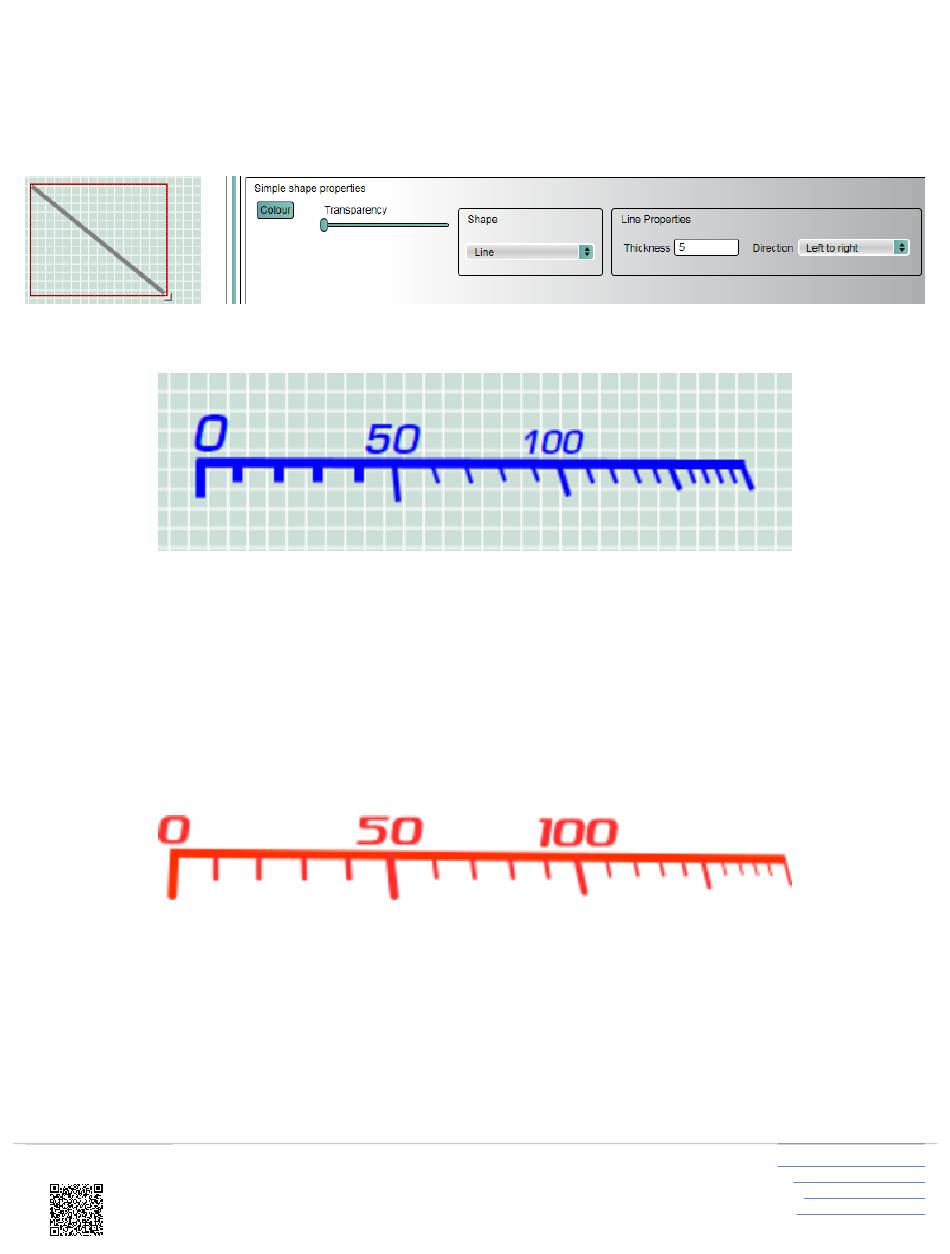

• You will then be able to create a custom ruler image calibrated to the camera positions on your test vehicle like the
right hand gauge shown below.
• Save these new gauges in a PNG format.
• Go back into the Video VBOX setup software and select the option Elements – New - Static image.
• This will create space for a new Static image in your scene
• Got to the 'Static Image properties' section of the software and click load to load in one of your new gauge images.
• Then move this gauge into position in your corresponding picture in picture, aligning it with the video image of the
ruler line.
• Repeat this process for the other camera picture in picture position.
