Racelogic VBOX User Manual page 9

ADAS Radio Link
For Multiple-Target mode, you must use radio modems programmed with different configuration scripts. It is not
possible to use the normal ADAS link radios.
The Radios at each TARGET VBOX need to be set to CLIENT mode and paired to the singular ADAS radio at the
subject vehicle.
The radio at the subject vehicle needs to be set to SERVER and BROADCAST mode
1. Ensure the 2.4 GHz telemetry modems are connected as shown in
vehicle configuration.

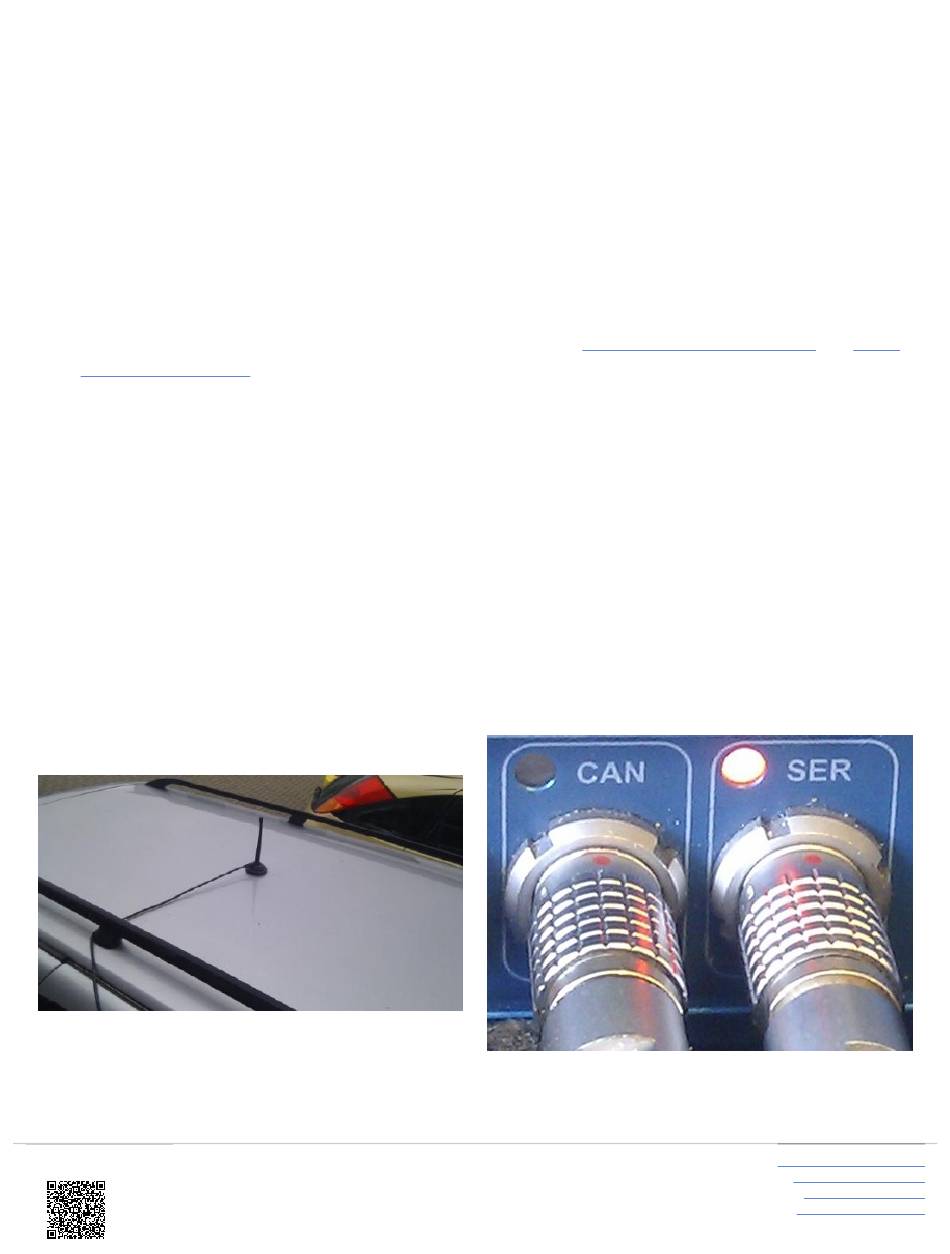

2. As 2.4 GHz transmissions are very direct, with a narrow beam width, care needs taking when mounting the
antenna; ensure they are:
• On the highest part of the vehicle roof
• Away from any nearby obstructions that could cause a potential blockage to the path of the signal
• Mounted vertically to ensure maximum transmission power in the horizontal plane
• Mounted at least 50 cm away from other Radio antennas
When the 2.4 GHz modems are connected correctly the 'SER' light on the SUBJECT VBOX will illuminate, indicating
the reception of a serial data stream.
subject vehicle configuration and target
