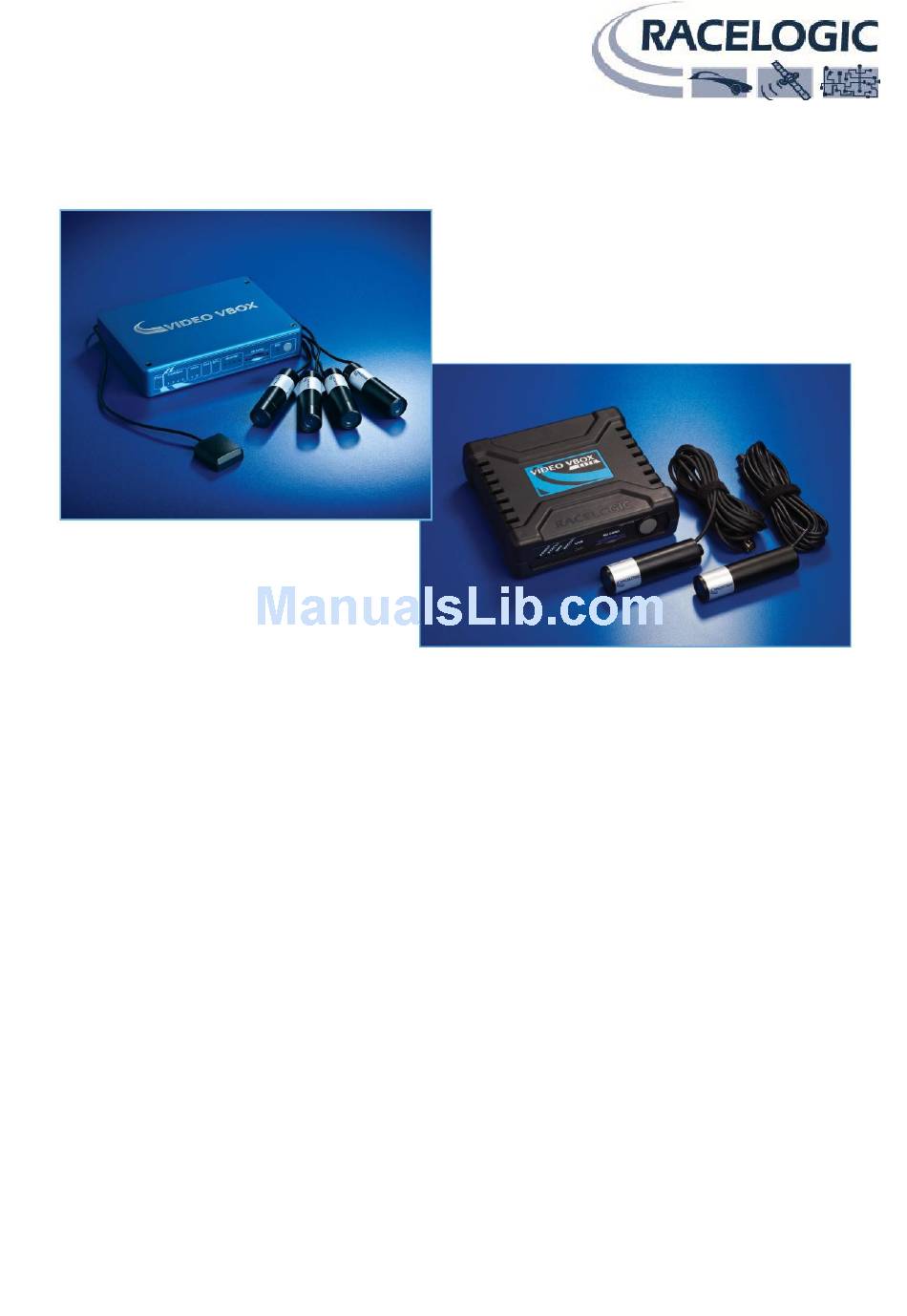

- Page 1 Video VBOX Hardware Manual Issue 10 20 October 2010...
- Page 2 VIDEO VBOX MANUAL Page | 2 20 October 2010...
- Page 3 VIDEO VBOX MANUAL This page intentionally left blank Page | 3 20 October 2010...
-
Page 4: Introduction
VIDEO VBOX MANUAL Introduction The Video VBOX is a multi-camera, solid state video recorder with GPS data-logging and graphical overlay. Included are three software packages: Circuit Tools - Lap analysis Video VBOX Setup - Graphics and logging control Performance tools... -
Page 5: Table Of Contents
Upgrading firmware ..........................11 Upgrading multiple units .............................. 11 Troubleshooting Guide ......................... 12 CAN Output ................................... 14 Connector Assignments – Video VBOX Pro ........................15 Connector Assignments – Video VBOX Lite ........................17 Contact Details ............................. 19 Page | 5... - Page 6 VIDEO VBOX MANUAL Quickstart Guide As shipped, the Video VBOX can be used straight out of the box: 1. Mount the GPS antenna in the centre of the roof of the vehicle. Keep away from roof bars 2. Connect the antenna to the Video VBOX 3.
-
Page 7: Trackmaps And Lap-Timing
To have lap-timing information or a circuit map shown on the video, the default internal ‘Scene’ needs to be modified. To do this, you can use the Video VBOX Setup software, see separate manual for more details. Notes on using USB Always use the Supplied USB Cable When connecting the Video VBOX to your computer, make sure you are using the USB cable supplied. -
Page 8: Sd Cards
Video VBOX Registration So that Racelogic can continue to provide you with notification of the latest software releases, firmware upgrades and to offer technical support, please register your Video VBOX. Please register your unit here: www.videovbox.co.uk/register... -
Page 9: Getting Started With Your Video Vbox
VIDEO VBOX MANUAL Getting Started with your Video VBOX Logging Modes The Blue LED will come on when the unit is recording video, this LED will flash when the unit is closing the file. NOT REMOVE the SD card if the Record LED is on or is flashing. -
Page 10: Led Functions - Lite
When you upload your content to YouTube, or display on a normal television, the interlacing is removed. Windows Media Player does not render the video as well as other media players, so for better quality, Racelogic recommend the free, but excellent, VLC player (http://www.videolan.org/vlc/) -
Page 11: Using The Oled Display - Requirements
Upgrading multiple units To prevent the Video VBOX from deleting the firmware file, create an empty file called ‘no-delete-vidup.txt’ file on the SD card in the same directory as the upgrade file, the upgrade file will then remain on the card following a successful upgrade. -
Page 12: Troubleshooting Guide
In the case of the Video VBOX Lite, only use the USB cable (CAB066-2) supplied with the unit, as other cables such as those supplied with card readers may not have a long enough plug to fit into the recessed socket on the front of the box ... - Page 13 Scene should not be larger than 12 Mb due to space limitation in the unit Scene does not upload to the Video VBox Try a re-installation of the firmware on the Video VBox and try to upload the scene again Video VBOX not responding - GPS Coldstart ...
-
Page 14: Can Output
VIDEO VBOX MANUAL CAN Output The Video VBOX Pro has a CAN output which is present on the 5-way connector output. Data format: Motorola Baud rate: 500Kb/s Data Bytes Update Rate 0x301 100ms (1) Sats in (2) Time since midnight UTC (3) Position –... -
Page 15: Connector Assignments - Video Vbox Pro
VIDEO VBOX MANUAL Connector Assignments – Video VBOX Pro Connector 1 – Power (Dedicated 9V to 15V DC Power Connector) Function Power + Ground Chassis Ground Connector 2 – Camera 1 Function Audio Ground Video Input Camera Power Camera Ground Audio Input (Left) Connector 3 –... - Page 16 VIDEO VBOX MANUAL Connector 6 – CAN Function CAN High CAN Low Power Connector 7 – SER Function Tx-RS232 Rx-RS232 CAN High CAN Low Power Connector 8 – USB Function USB - ID Ground USB 5V Connector 9 – AUX Out...
-

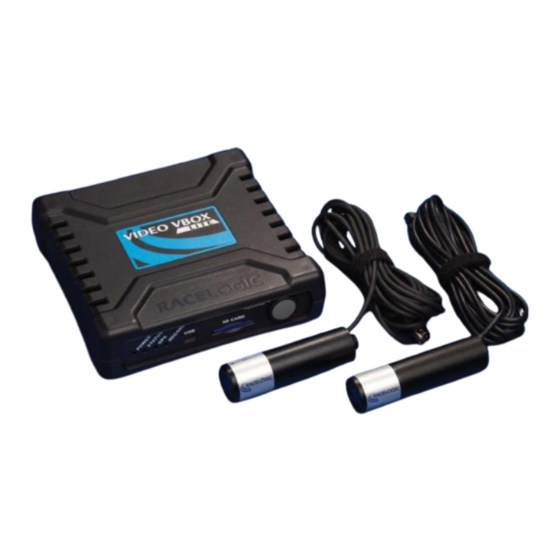

Page 17: Connector Assignments - Video Vbox Lite
USB - ID Ground USB 5V Connector 7 – GPS (GPS Antenna) Function Signal Chassis Ground Connector Assignments – Video VBOX Lite Connector 1 – PWR Function Power + (9 to 15V) Ground (0V) Connector 2 – CAM1 Function Ground Video input Camera Power (8 –... - Page 18 VIDEO VBOX MANUAL Connector 5 – AUX Function RS232 TxD RS232 RxD Ground Video Out Power +12V Connector 7 – GPS (GPS Antenna) Function Signal Chassis Ground Connector 6 – USB Function USB – 5V Page | 18 20 October 2010...
-
Page 19: Contact Details
VIDEO VBOX MANUAL Contact Details Racelogic Unit 10 Swan Business Centre Osier Way Buckingham Bucks MK18 1TB United Kingdom Email: support@racelogic.co.uk Web: www.racelogic.co.uk Page | 19 20 October 2010...
