Racelogic VBOX User Manual page 18

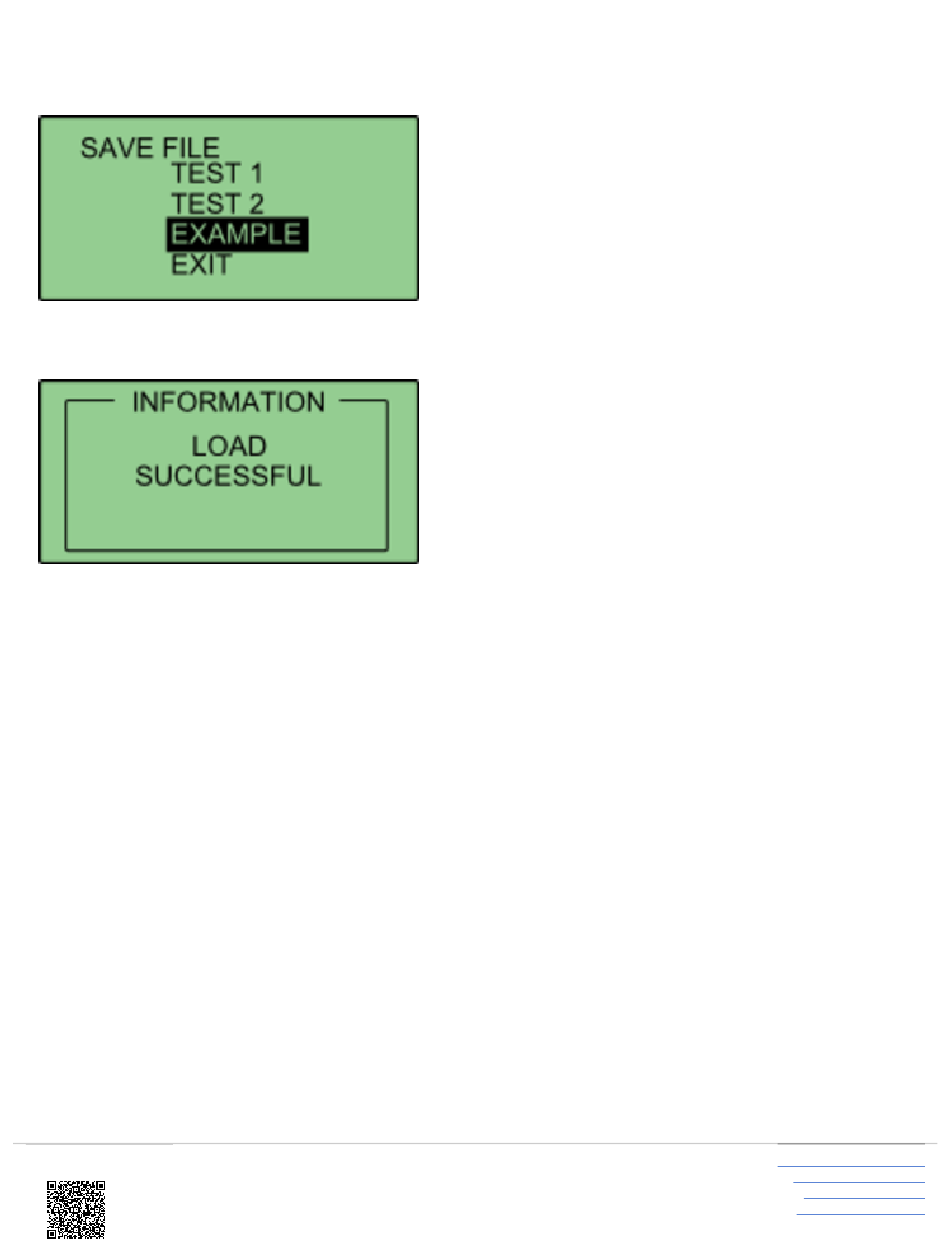

This will bring up a list of all previously saved files, which the user can select to load.
If successful, VBOX Manager will display 'LOAD SUCCESSFUL'.
Smoothing
If the box is set into twin antenna mode, the smoothing menu will not be present as the calculations will run off of the
True heading provided by the twin antenna lock.
It is recommended that if user intends to set multiple points on the car, they enable the dual antenna.
There are two configurable variables linked to heading smoothing; 'Smoothing Distance' and 'Speed Threshold'. Due
to the nature of the vehicle separation measurement and calculation process many channels are derived using the
heading of the vehicle which can inherently be noisy. To overcome this heading can be smoothed with a dynamic
smoothing routine.
