Results

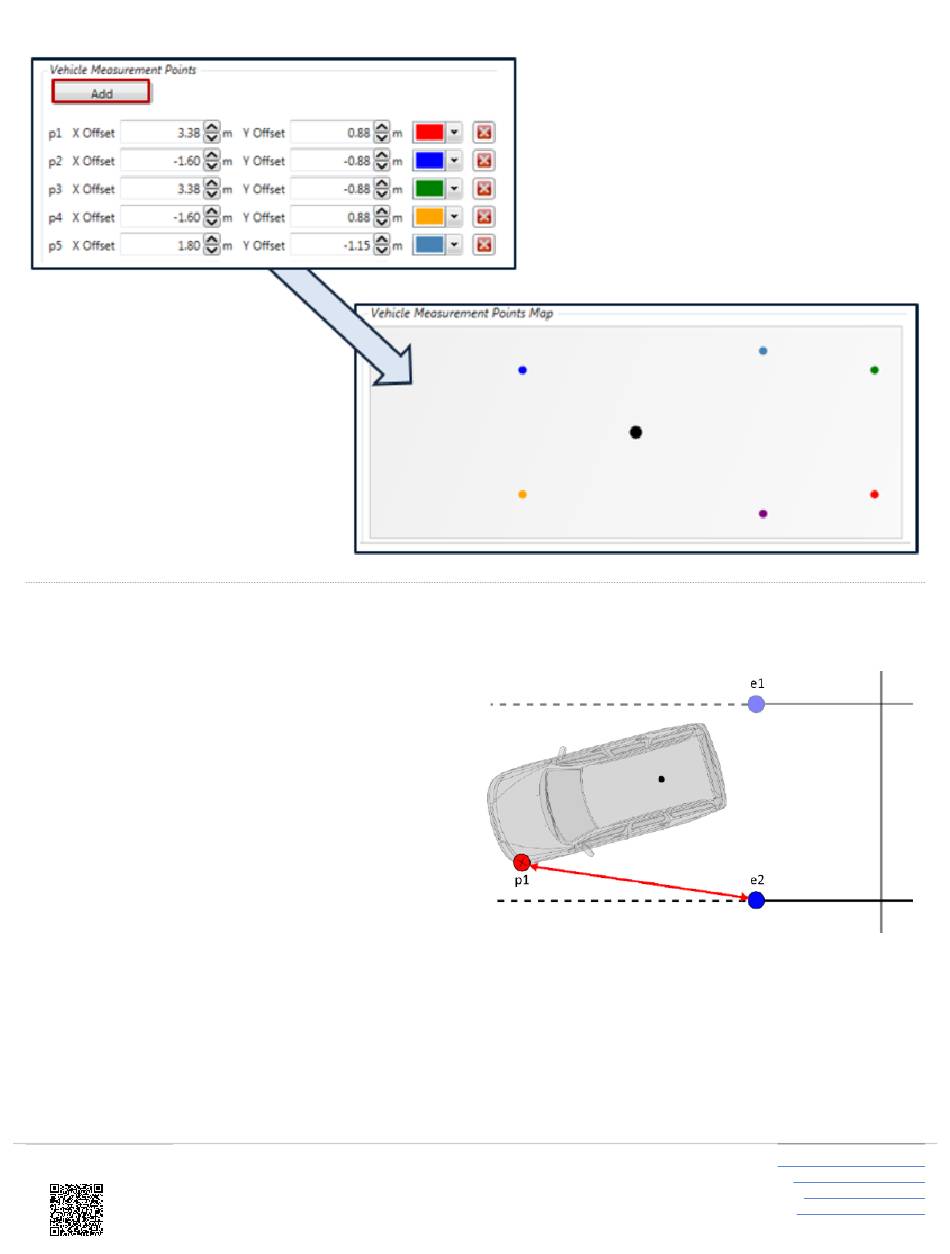

e1 and e2 measurements
The 2 range measurements to bay side entrance points
are direct straight line ranges between vehicle and entry
point. The created channels will be labelled e1 and e2
relative to what is shown in the 'bay sides and entrance
points' map. Two measurements in relation to the bay
side entrance points will exist for every vehicle
measurement point. For example, the p1_e2
measurement is the distance between the second entry
point and the first defined vehicle measurement point.
