3.6 Electrical installation
3.6.1 Electrical access ports
Connect external cables to the communications, relays and/or input/output modules through the
electrical access ports. Refer to
Figure
9. Refer to
Specifications
on page 3 for wire gauge
requirements. Keep the plugs in the electrical access ports that are not used to keep the enclosure
rating.

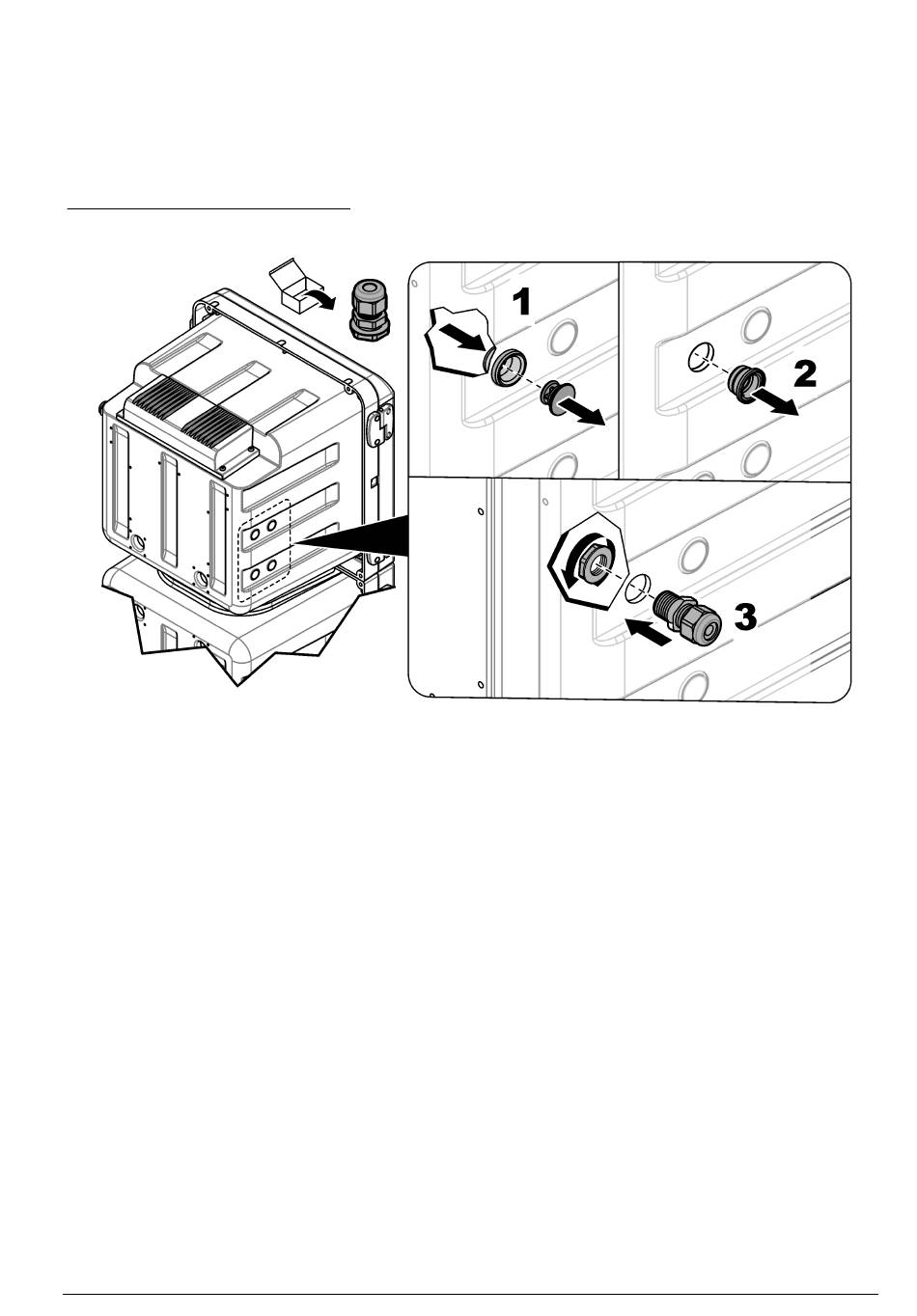

Figure 9 Electrical access ports
English 19
