Section 5 User interface and navigation
The instrument display is a touch screen. Only use a clean, dry finger tip to navigate the functions of
the touch screen. Do not use writing tips of pens or pencils or other sharp objects to make selections
on the screen or damage to the screen will occur. Make sure that chemicals do not come in contact
with the screen surface or damage to the screen will occur.
Home screen
Refer to
Figure 12
for the home screen.

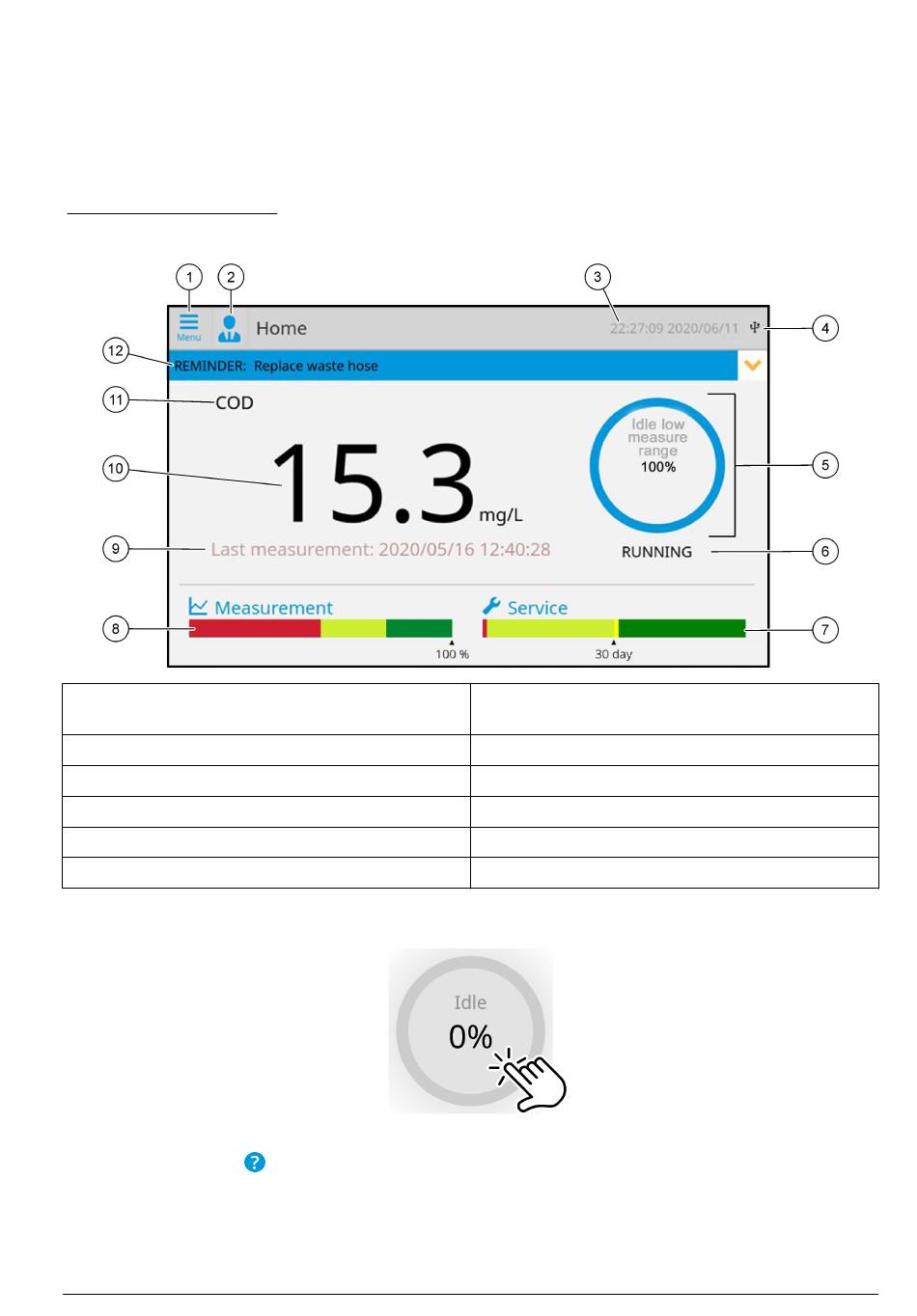

Figure 12 Home screen
1 Menu icon. Refer to
on page 24.
2 Approved user icon
3 Time and date
4 USB icon
5 START/STOP button and procedure status
6 Instrument status
START/STOP button
Push the circular start/stop button to stop or start the analyzer operation.
Help icons
Look for the Help icon
the help system
on page 48.
Menu overview
to get the solution for a problem and steps to complete a task. Refer to
7 Service status (Prognosys)
8 Measurement status (Prognosys)
9 Last measurement information
10 Measurement value
11 Chemical form
12 Notification message
Use
English 23
