6.3.4 BIOREACTOR ASSEMBLY 1000 ML

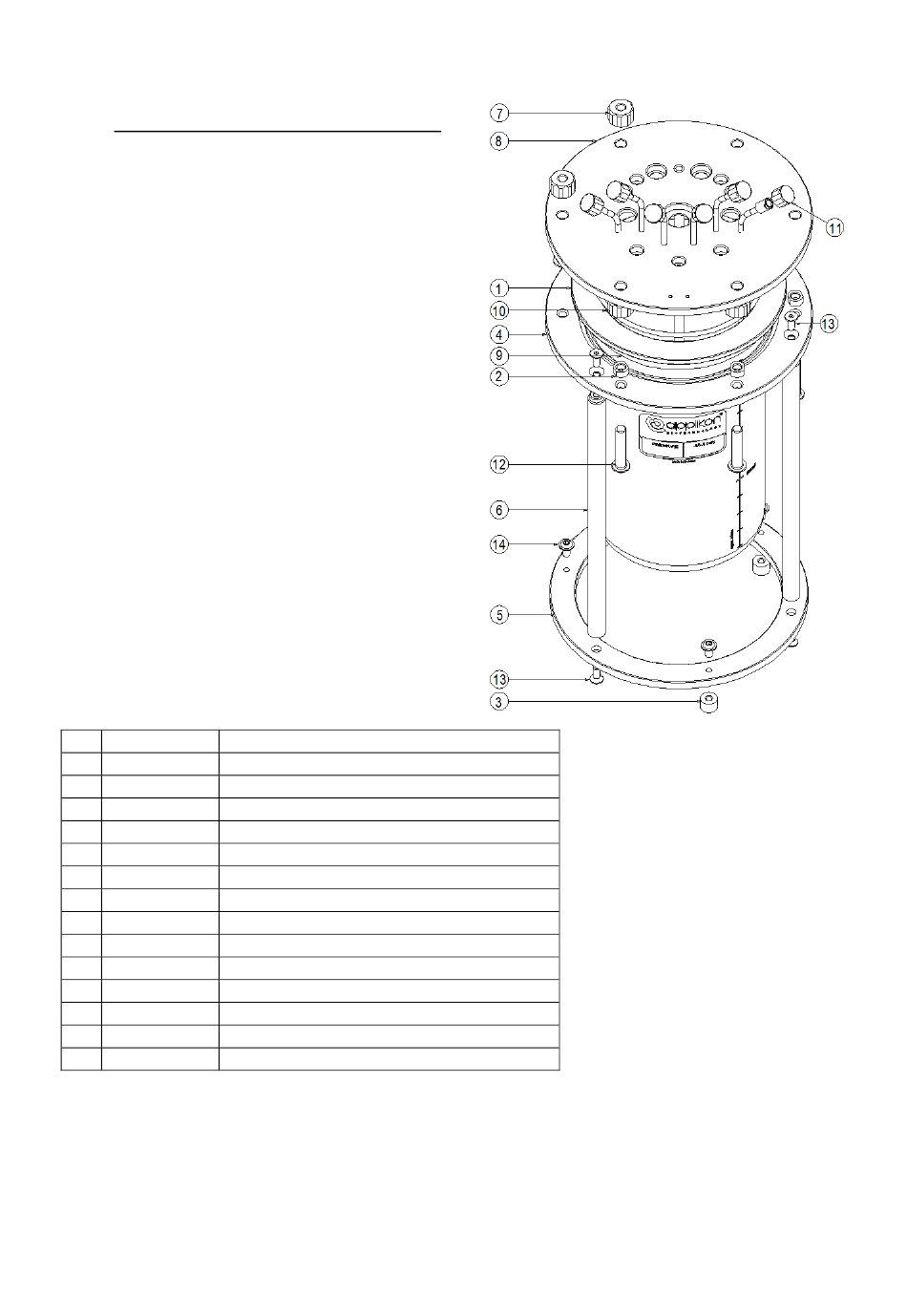

In this section, the MiniBio Reactor 1000 ml is presented
in exploded view. The table lists the different parts:
Pos. Part# Description
1 V3MP075021 Vessel Dished Bottom 1000 ml WV
V3MP072201 Clamping Ring – Top Plate Spacer M6
2
3 V3MP072191 Foot OD10 for 3-Stand Bottom Ring
4 V3MP070991 Clamping Ring ID105 SS316
5 V3MP070981 Bottom Ring ID120 for 3-Stand AISI316
6 V3MP070971 Stand for 3-Stand OD10 L=195
7 V3MA010111 Ribbed Nut D15 H10 M6
8 V3KP070181 Top Plate 1000 ml Reactor with Luer Locks
9 V1S4104X30 O-ring ID104.20X3.00
10 V1S4095X26 O-ring ID94.92 x 2.62 Silicone
11 V0W0030100 Male Cap for Female Luer Lock PC
12 V0N0625130 M6X30 Hex. Sock. Button HD Cap Screw
13 V0N0433010 M4X10 Hex Sock. Countersunk Head Screw
14 V0N0425008 M4X08 Hex. Sock. Button HD Cap Screw
Hardware Manual my-Control MiniBio
Silicone
