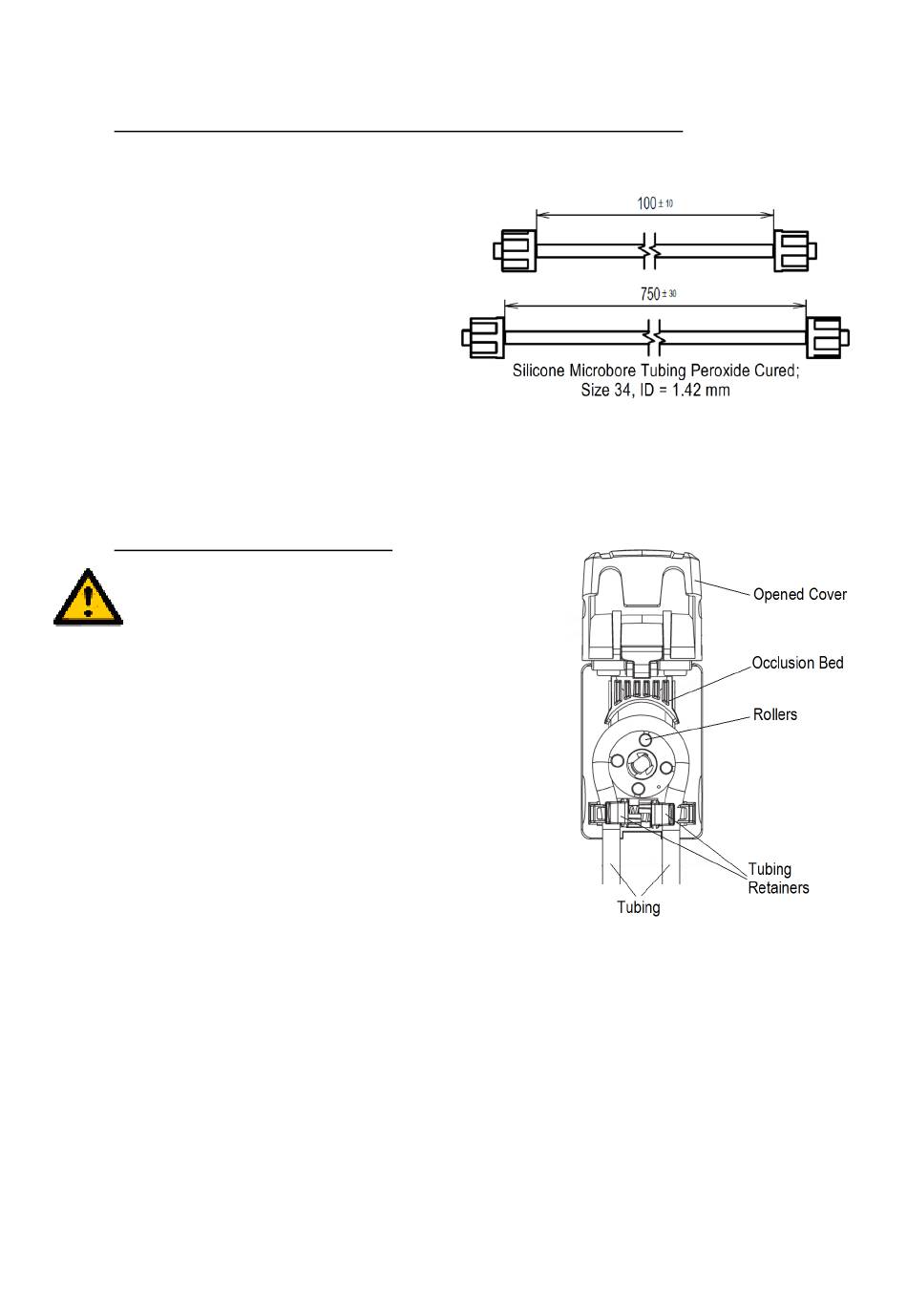

4.4.1 MICROBORE TUBING SET WITH LUER LOCK CONNECTORS

Since the MiniBio Reactors are equipped with Luer Lock connections at the addition and sample ports, a
Microbore Tubing Set with Luer Lock connectors has been prepared.
Z811000271 MiniBio Tubing Set Microbore
The Tubing Set consists of:
5 pieces of tubing with a length of 100 mm and
10 pieces of tubing with a length of 750 mm.
The silicone tubing is peroxide cured and has size 34.
The 750 mm pieces are used for addition with pumps.
The 100 mm pieces can be used blinding two addition ports.

4.4.2 LOADING THE PUMP TUBING

WARNING:
Before loading tubing into the Pump Head, switch off
the power of the my-Control. Fingers or loose clothing
could be caught in the rollers.
1. When the cover is opened, the Occlusion Bed moves upward,
away from the rollers.
2. Holding both ends of the tubing in one hand, form a loop and
wrap the tubing around the Rollers, making sure that the tubing
is centered on the rollers and keeping the free ends of the tubing
outside of the Tubing Retainers.
3. Once the tubing is in place, close the Door and the Occlusion
Bed will automatically align itself within the pump.
4. Insert the tubing into one of the Tubing Retainers by moving the
retainer toward the center of the pump and placing the tubing in
the v-notch of the retainer. Release the retainer so that the tubing
is secured in place.
5. Repeat the previous step for the other tubing retainer.
6. The tubing should be stretched slightly around the rollers so that there is no excess tubing between the
rollers and the retainers – any excess can be removed by pulling slightly on the tubing outside of the
Pump Head.
The Microbore Pump Tubing is now loaded in the Pump Head.
When activated, the pump will rotate counterclockwise.
