6.4

STIRRER DRIVE AND STIRRER ASSEMBLY

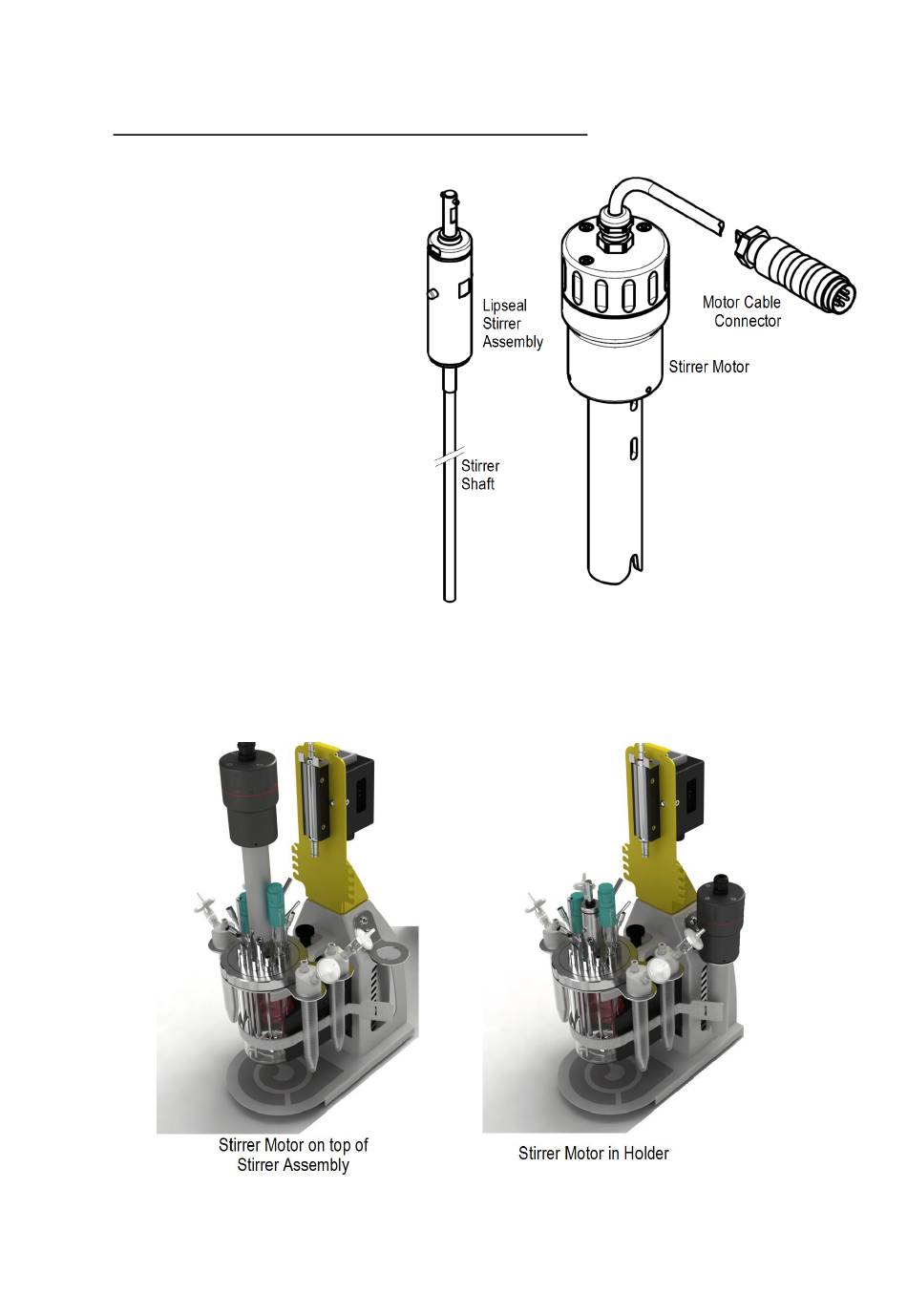

The Stepper Stirrer Motor Assembly for the MiniBio Reactors fits directly on top of the Stirrer Assembly.
Z510002140 Stepper Stirrer Motor
for 250 or 500 ml Reactor
(or for 1000ml Reactor with
Cell Culture Applications).
Z510002150 Heavy Duty Stepper Stirrer Motor
for 1000 ml Reactor
Z813150256 Lipseal Stirrer Assembly 250 ml
Z813150506 Lipseal Stirrer Assembly 500 ml
Z813151002 Lipseal Stirrer Assembly 1000 ml
The Stirrer Assembly is mounted in the central port of the reactor head plate.
The Stirrer Motor can be put on top of it. As soon as the motor starts turning, the fork coupling on the motor
shaft will fit on the stirrer shaft.
The stands for the 250 and 500 ml MiniBio Reactors are equipped with a Motor Holder Ring at the right
hand side of the stand. When the bioreactor is not in operation, the motor can be fitted in the holder:
