INTERNAL ACTUATORS
4.4

TUBING PUMP ASSEMBLY

WARNING
Risk of damaging the equipment.
•
Application of damaged tubes may result in fluid leaking into the pump drive.
•
Verify the tube quality inside the pump head before every new cultivation.
•
Do not use the tubing pump drives for other purposes than
displacement of fluids (or gas).
Total number of positions for tubing pump (and micro valves) at the front of the my-Control = 4.

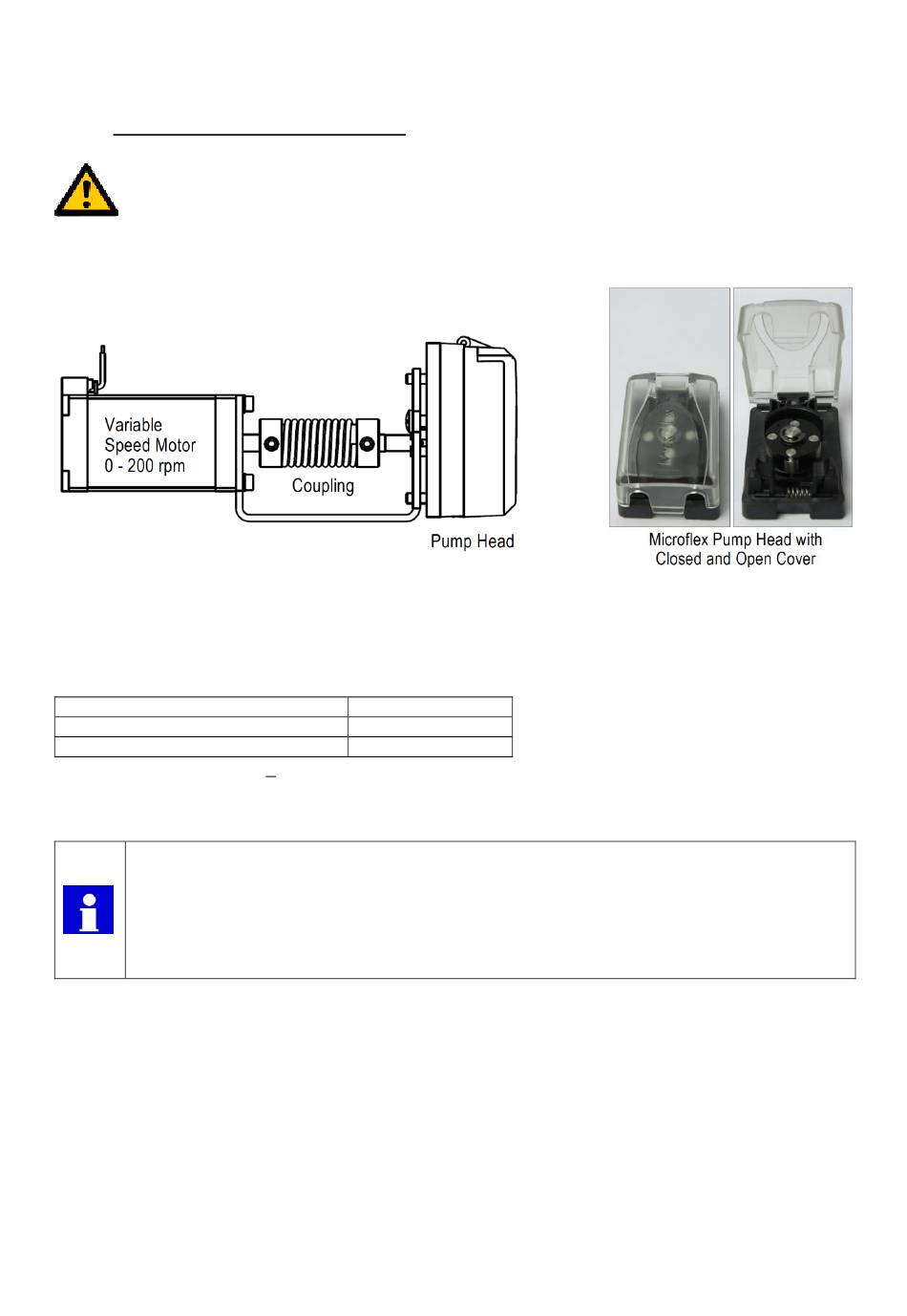

The variable speed pump motor (0 – 200 rpm) drives a pump head.
Inside the pump head, Silicone or Pharmed tubing is applied.
Applicable tubing diameter:
• Microbore tubing size 48: ID = 2.79 mm
Tubing Type
Microbore tubing size 34
Microbore tubing size 48
*the nominal flow may vary + 25% due to tube tolerances and material characteristics (see remark below)!
When activated, the pump will rotate counterclockwise.
The loading procedure for new pump tubing is described on the next page.
Due to stretching of the Pharmed tubing material, the liquid displacement of the tubing pump may
show a decrease during the first few days after replacement of the tubing. When accurate dose
monitoring is required, it is advisable to let the pump run continuously for approximately 24 hours
before calibrating the Dose Monitor factor!
Autoclaving may influence the liquid displacement as well!
Z310216011* Pump & Pump Head Variable Speed my-Control V2
Z360762534 Silicone Tubing Microbore Size 34 (L = 15m)
Z369580934 Pharmed Tubing Microbore Size 34 (L = 30m)
Z360762548 Silicone Tubing Microbore Size 48 (L = 15m)
Z369580948 Pharmed Tubing Microbore Size 48 (L = 30m)
Z310216051 Blind Plate Pump Position my-Control V2
*Additional Pumps must be installed by a certified Service Engineer.
22
Flow* at 200 rpm
11 ml/min
17 ml/min
Hardware Manual my-Control MiniBio
