6.12 SINGLE USE SAMPLE SYSTEM

The Single Use Sample System is fixed on top of the Sample Pipe. Before sampling, a sterile Syringe 2 is

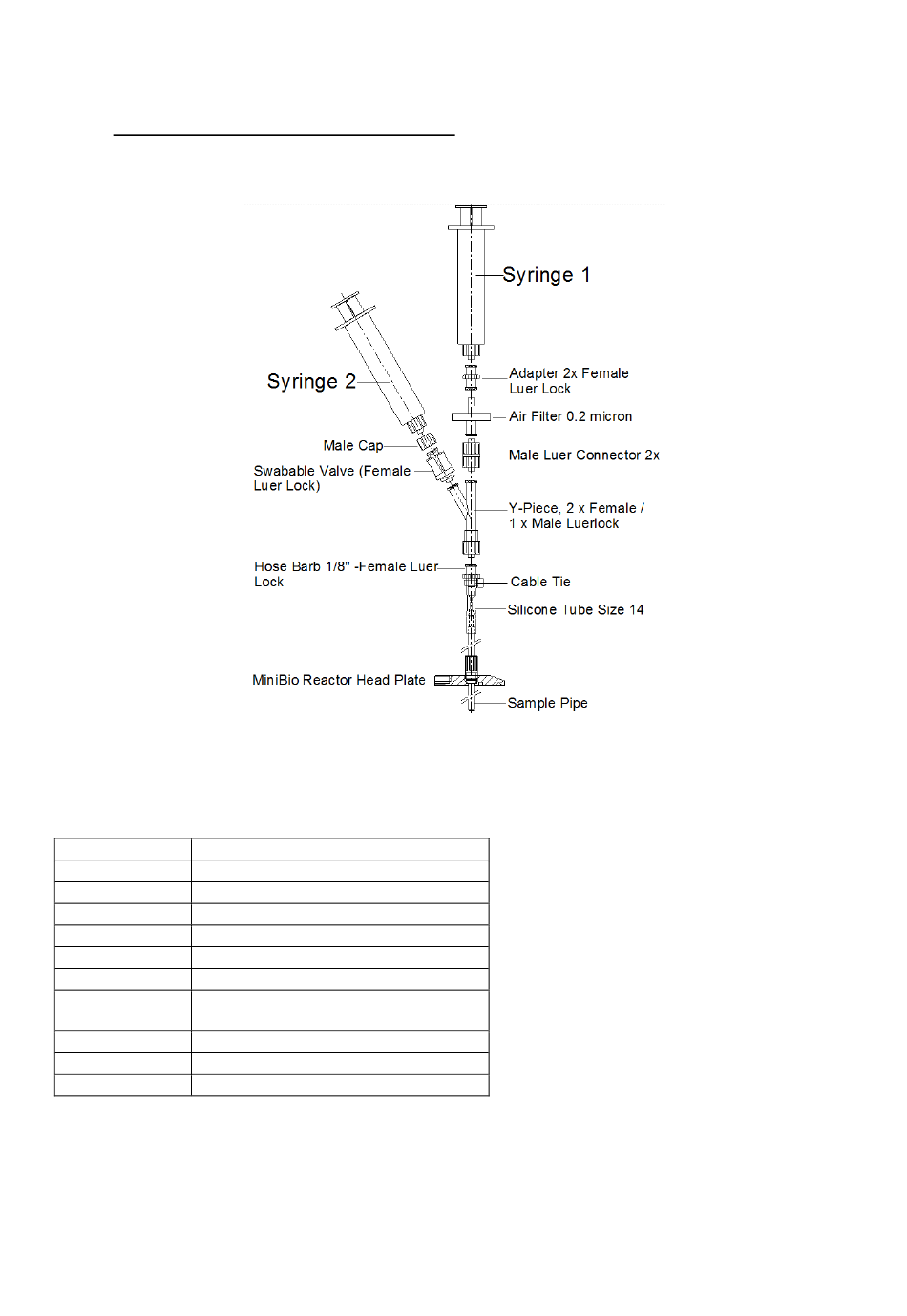

mounted on top of the swabable valve. See image below.
Syringe 1 with (withdrawn plunger) is mounted on top of the air filter. Push the plunger of Syringe 1 to
remove medium from the sample pipe.
Withdraw the plunger of Syringe 2 to take sample from the reactor.
Remove Syringe 2 from the Sample System and clean the Syringe and swabable valve with ethanol 70%.
The parts that are included in the assembly are listed in the table below:
Part # Description
V0W6500002 Syringe 10ml with Luer Lock
V0W0030121 Adapter 2x Female Luer Lock
V0W1040020 Air Filter 0.2µm
V0W0030116 Male Luer Connector 2x
V0W0030113 Male Cap
V0W0030103 Swabable Valve (Female Luer Lock)
V0W0030104 Y-Piece, 2xFemale Luer Lock,
1xMale
Hose Barb 1/8" – Female Luer Lock
V0W0030109
V0R1451030 Cable Tie Black
V0M5219030 Silicone Tubing Size 14
Z850000251 Sample System Single Use for MiniBio Reactors
