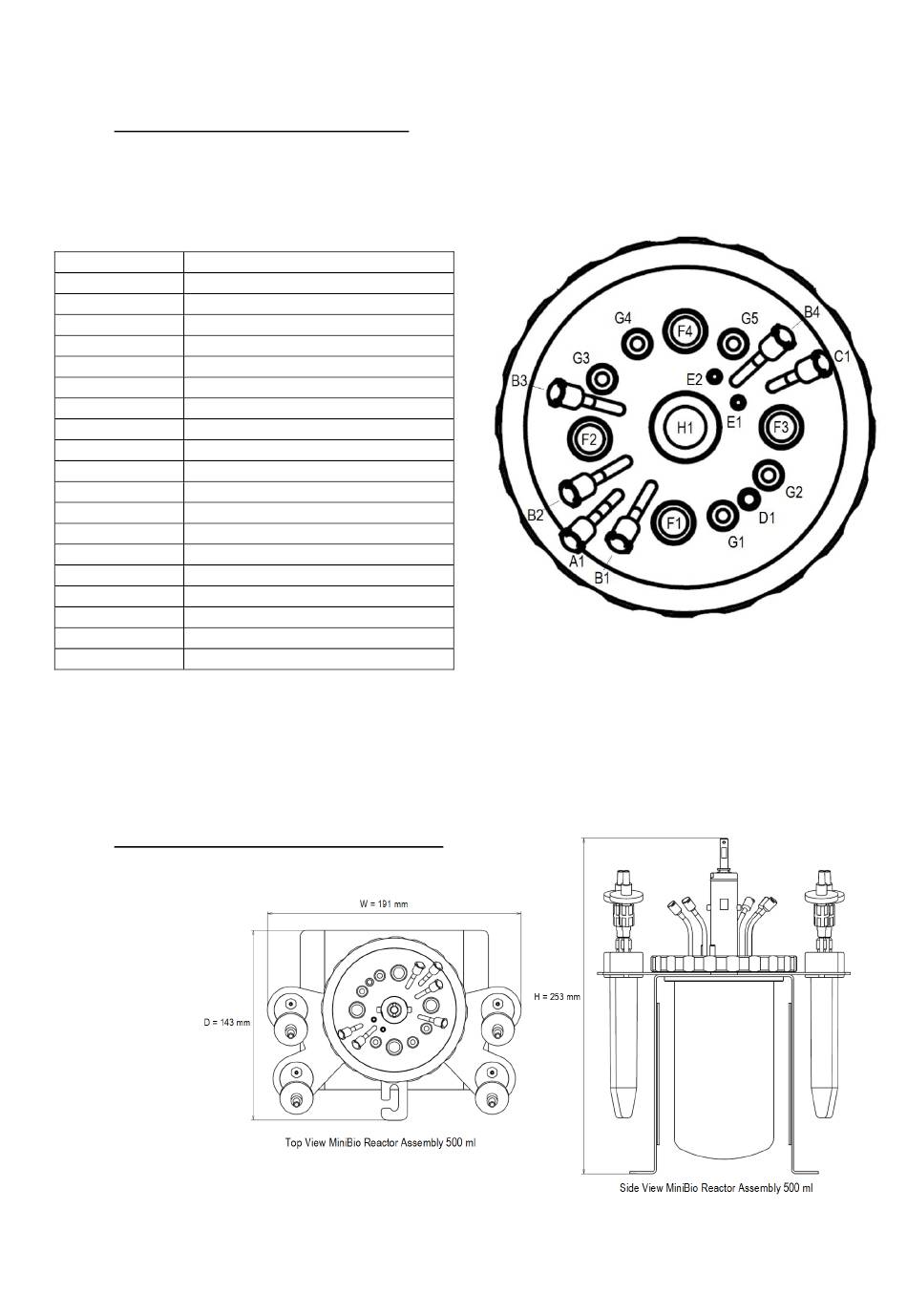

6.2.2 HEAD PLATE SPECIFICATIONS

The head plate comes with welded inserts for:
• Temperature measurement (thermometer pocket)
• Sparging and sampling
• Additions or overlay
Port # Description
A1 (Luer Lock) Sparger Pipe
B1 (Luer Lock) Addition or Overlay Pipe
B2 (Luer Lock) Addition or Overlay Pipe
B3 (Luer Lock) Addition or Overlay Pipe
B4 (Luer Lock) Addition or Overlay Pipe
C1 (Luer Lock) Fixed Sample Pipe
D1 Temperature Pocket
E1 Contact Bus for Level Sensor
E2 Contact Bus for Level Sensor
F1 Sensor / Condenser Port M12 x 1
F2 Sensor / Condenser Port M12 x 1
F3 Sensor / Condenser Port M12 x 1
F4 Sensor / Condenser Port M12 x 1
G1 Universal Port M8x1
G2 Universal Port M8x1
G3 Universal Port M8x1
G4 Universal Port M8x1
G5 Universal Port M8x1
H1 Stirrer Port
One of the four addition ports may be used for gas overlay.
For Microbial applications, the lower end of the sparger pipe is left open or a jet sparger tip is used:
Z813180252 Jet Sparger Tip
For Cell Culture applications, the lower end of the sparger pipe may be equipped with a porous sparger tip:
Z813180251 Porous Sparger Tip

6.2.3 REQUIRED SPACE IN AUTOCLAVE

Required space in the autoclave (mm):
H x W x D = 280 x 210 x 175
