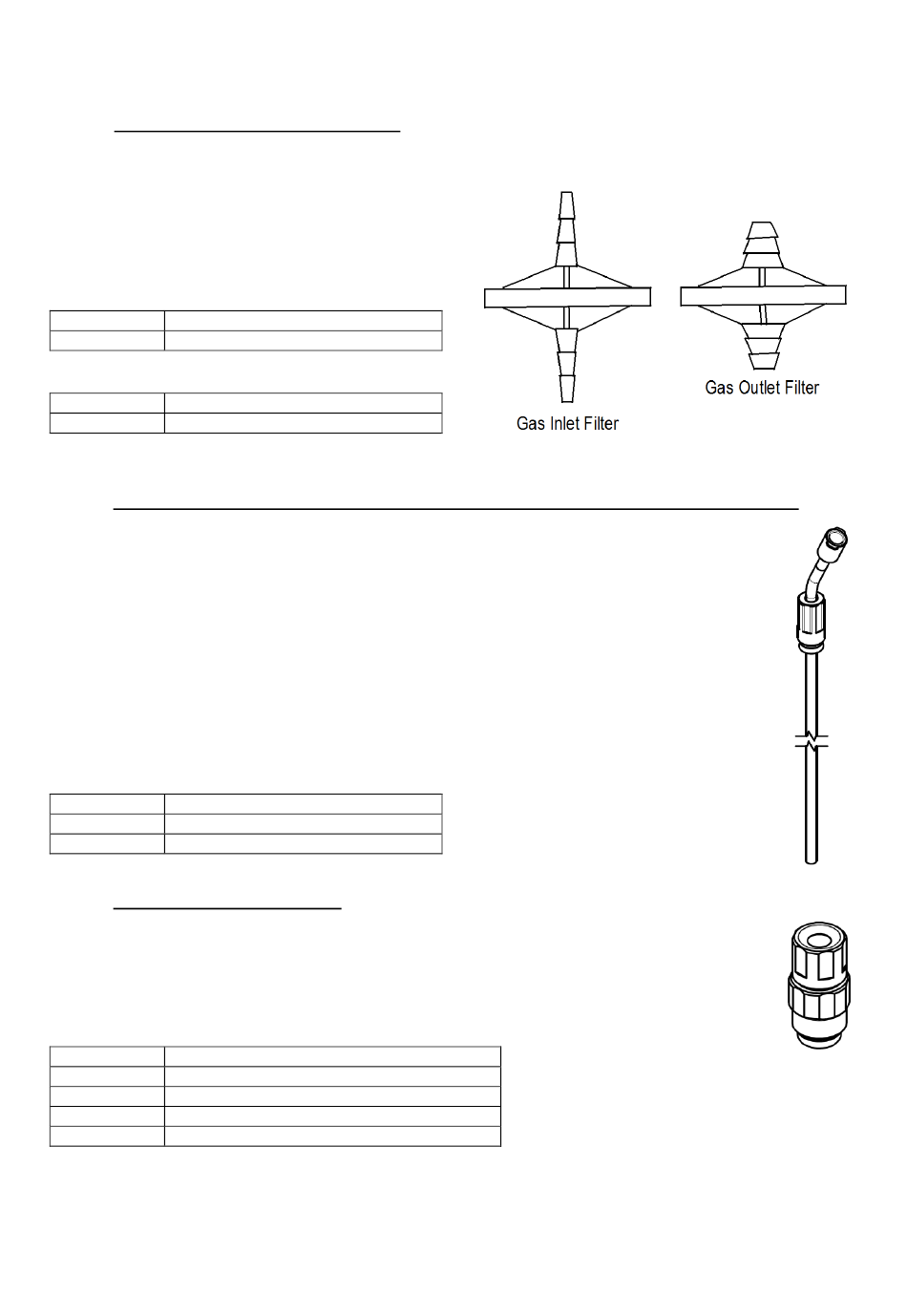

6.5.5 GAS INLET / OUTLET FILTERS

A bacterial air filter is an economical filter for sterile gas delivery and venting applications. The hydrophobic
PTFE filter membrane excludes the risk of contamination. The filter is autoclavable.
Housing material:
Pore size:
Maximum temperature:
Filter for gas inlet (mini Hose Barb 3 mm):
Part # Description
Autoclavable air filter 0 – 5 L/min
Z811300251
Filter for gas outlet (Hose Barb 7 – 9.5 mm):
Part # Description
Autoclavable air filter 0 – 40 L/min
Z811302030
6.6

SAMPLE PIPE (ADJ. HEIGHT) WITH LUER LOCK CONNECTION

Although the head plate contains a fixed (OD3.18 x 0.89) sample pipe, the bioreactor may also
be equipped with a height adjustable sample pipe of the same diameter.
The sample pipe fits in a M8 x 1 port of the head plate of the bioreactor.
Z813190252 Sample Pipe Height Adjustable MiniBio 250/500 Luer Lock
Max. insertion length L=136 mm
Z813191052 Sample Pipe Height Adjustable MiniBio 1000 Luer Lock
Max. insertion length L=188 mm
Z813190260 Sample Pipe Height Adjustable with Thread MiniBio 250/500 Luer Lock
Z813191060 Sample Pipe Height Adjustable with Thread MiniBio 1000 Luer Lock
The sample pipe includes:
Part # Description
V3MP100121 Clamping Nut Sample M8x1 ID3.1
V1S4ARP007 O-ring 3,68x1.78
6.7

SEPTUM ASSEMBLY

The Septum Assembly is used for additions. It fits in the M8x1 port of the head plate of the
reactor.
Z813020252 Septum Assembly MiniBio V2
The septum assembly consists of:
Part # Description
V3MP070621 Septum OD=6, Height=3, Silicone
V3MP070612 Clamping Nut for Septum MiniBio
V3MP070602 Clamping Nut for Septum M8x1 MiniBio
V1S4ARP006 O-Ring ID 2.90 x 1.78 Silicone
52
polypropylene
0.22 μm
132 °C
