THE my-CONTROL
3.2

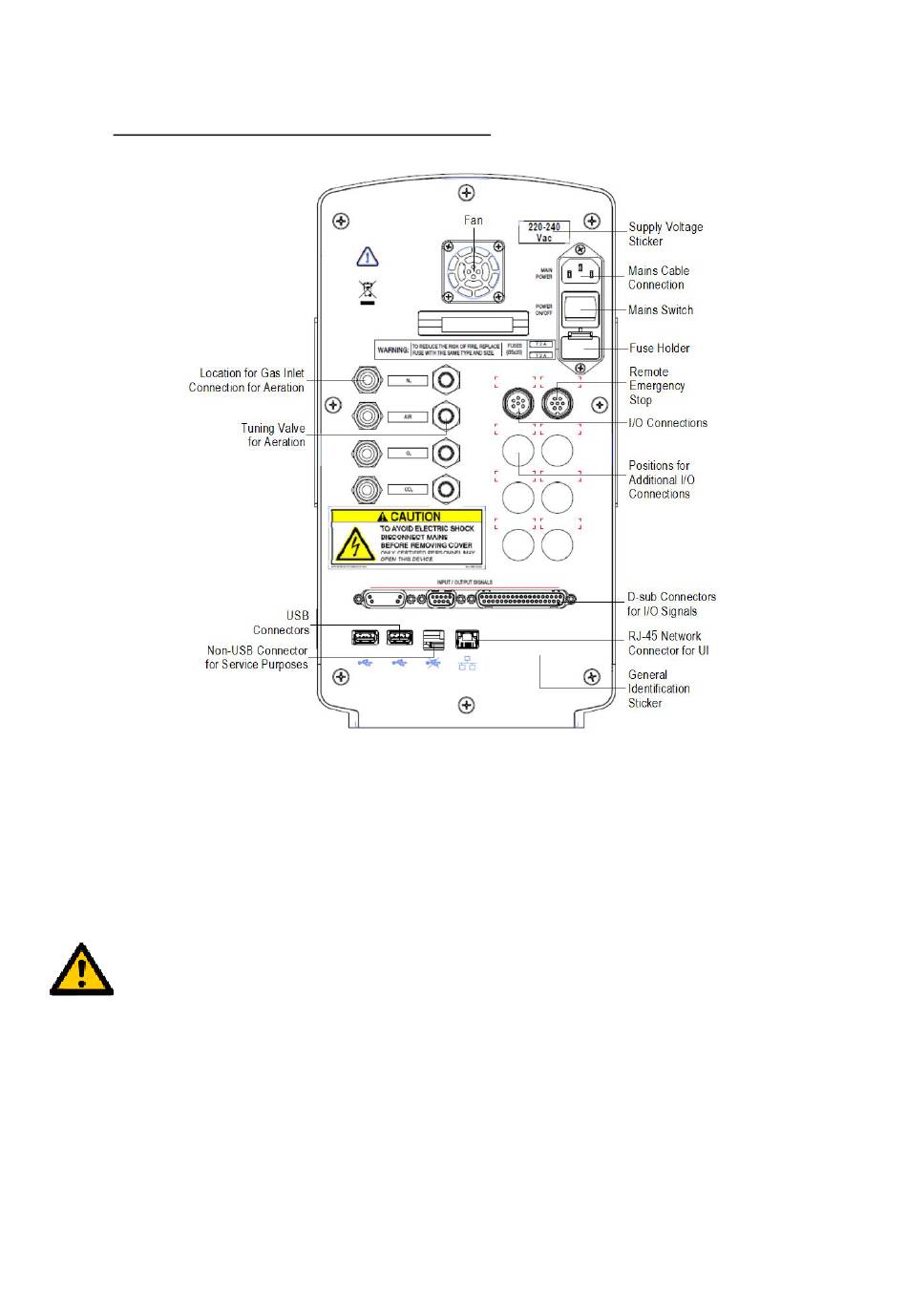

REAR VIEW OF THE my-CONTROL

At the rear of the control cabinet, the following connections can be found:
Power Supply section
The Power Supply Section of the my-Control contains:
• Mains Cable Connector for:
220-240 VAC / 50 Hz or
100-120 VAC / 60 Hz.
• Power Switch
• Fuse holders; fuses must comply with IEC 127:
230 VAC: 2 x T 2A (5 x 20 mm)
115 VAC: 2 x T 4A (5 x 20 mm)
The power switch of the my-Control is located at the rear of the cabinet. Make sure that the my-
Control is installed in such a way that, in case of emergency, the power switch can be easily reached!
Optional Remote E-Stop Connector
Optional connector for the external Emergency Stop circuit (button).
By default, this connection is internally jumpered. A connector for an external button is available as an
option. Opening the external Emergency Stop circuit will power down all actuators. Resetting the
Emergency Stop status is achieved by closing the circuit again. A "Normally Closed" relay can be used as an
external Emergency Stop button.
Z310210200
12
Control Cable for Emergency Stop for My/In
